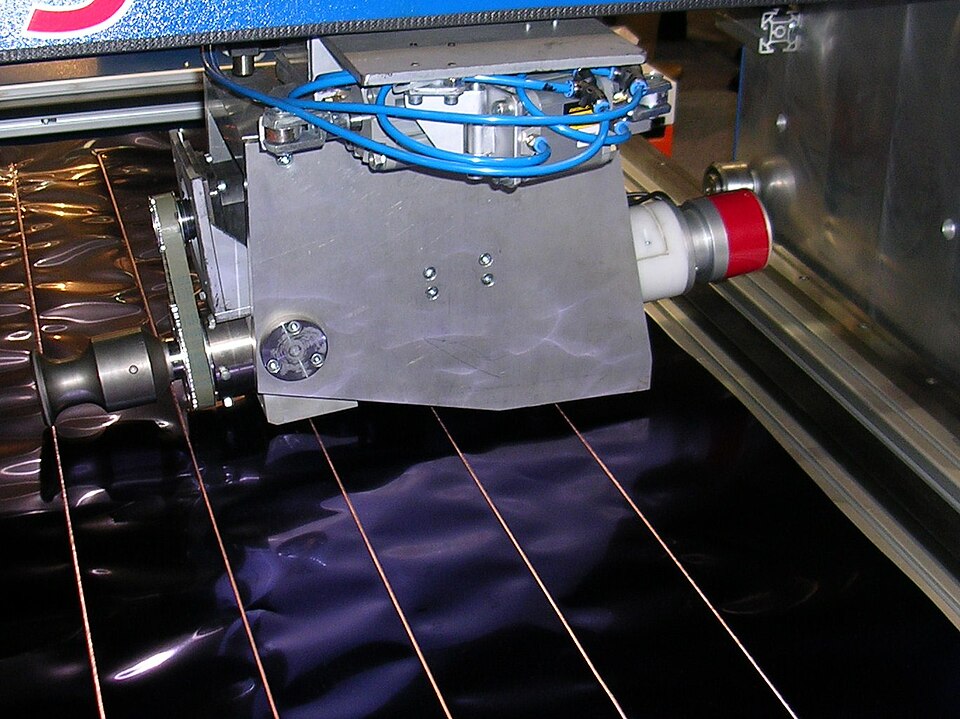

Ultrasonic Welding Machine Product

Overview

Ultrasonic welding is a solid-state joining process that bonds two or more materials—typically thermoplastics, but also thin metals—by applying high-frequency mechanical vibration (usually 40 kHz) and clamping force. Unlike traditional welding, ultrasonic joining does not melt the bulk material; instead, the friction and localized heating generated by the vibration soften the interface just enough to create a molecular bond. The process is fast (0.5–2 seconds), clean, repeatable, and requires no solvents, adhesives, or filler materials.

The Ultrasonic Generator produces the 40 kHz electrical signal. The Converter-Booster-Horn Stack stack converts that electrical energy into mechanical vibration, amplifying the displacement so the Horn Tip vibrates at 10–50 micrometers peak-to-peak. The Press Actuator holds the workpiece against the vibrating horn under controlled force. The Anvil Fixture supports the part from below. The Control Panel monitors the process in real time, and the Horn Cooling prevents thermal drift.

How it works

Two parts to be welded—perhaps plastic enclosure halves, or thin metal foils—are loaded into the Anvil Fixture. The bottom part sits in the nested cavity; the top part is placed above it. The Servo Press Motor or pneumatic actuator lowers the horn assembly, bringing the Horn Tip into light contact with the top surface.

The Control Panel triggers the Ultrasonic Generator, which produces a 40 kHz sine wave. This signal drives the Piezo Stack—a stack of thin ceramic elements that oscillate mechanically when an AC voltage is applied. The piezo motion is tiny (a few micrometers) but precise.

The Converter Block and Booster Block are tuned acoustic devices that amplify and concentrate the piezo displacement. The booster, in particular, is precisely shaped as a 1:4 amplitude magnifier: the bottom (connected to the piezo) vibrates only a few micrometers, but the top (the horn tip) vibrates at 10–50 µm amplitude. This acoustic amplification requires no additional energy—it is purely a mechanical leverage effect, like a lever or pulley.

As the Horn Tip vibrates at high frequency against the plastic surface, the shear stress and friction heat the plastic locally, softening it to a sticky state. Simultaneously, the Press Actuator applies a steady clamping force (100–1000 N depending on part size), holding the two parts together and pushing them firmly into contact.

The combined effect of friction heating (from the 40 kHz vibration) and pressure causes the thermoplastic molecules at the interface to intermix and weld. The Load Cell mounted on the horn measures the weld force continuously; the weld force typically increases as the plastic softens, peaks, then decreases as the layers merge and the weld completes. The Control Panel detects this force profile to determine weld completion time (typically 0.5–2 seconds). Alternatively, the system may be programmed with a fixed weld energy (measured in Joules) or duration.

Once the weld is complete, the Ultrasonic Generator stops oscillating, the horn retracts, and the finished assembly cools under the now-static clamping force for a brief "hold" phase. The finished part is removed—the weld is now solid and complete.

The process generates some heat, so the Horn Cooling circulates cool water through the Cooling Jacket around the horn stack, keeping the Temperature Sensor within limits (typically 30–60 °C). If the horn gets too hot, it expands, detuning the acoustic stack and reducing amplitude. Cooling prevents this drift.

Ultrasonic welding excels at joining:

• Plastic enclosures and battery housings
• Thin plastic films and flexible packaging
• Composite laminates
• Thin metal foils and microelectronics

The weld is typically stronger than the base plastic (due to inter-diffusion of molecules), requires no secondary operations, and produces minimal environmental byproducts. Cycle times are measured in seconds, enabling high production rates in consumer electronics, automotive, and medical device manufacturing.
