Vibratory Bowl Feeder Product

Overview

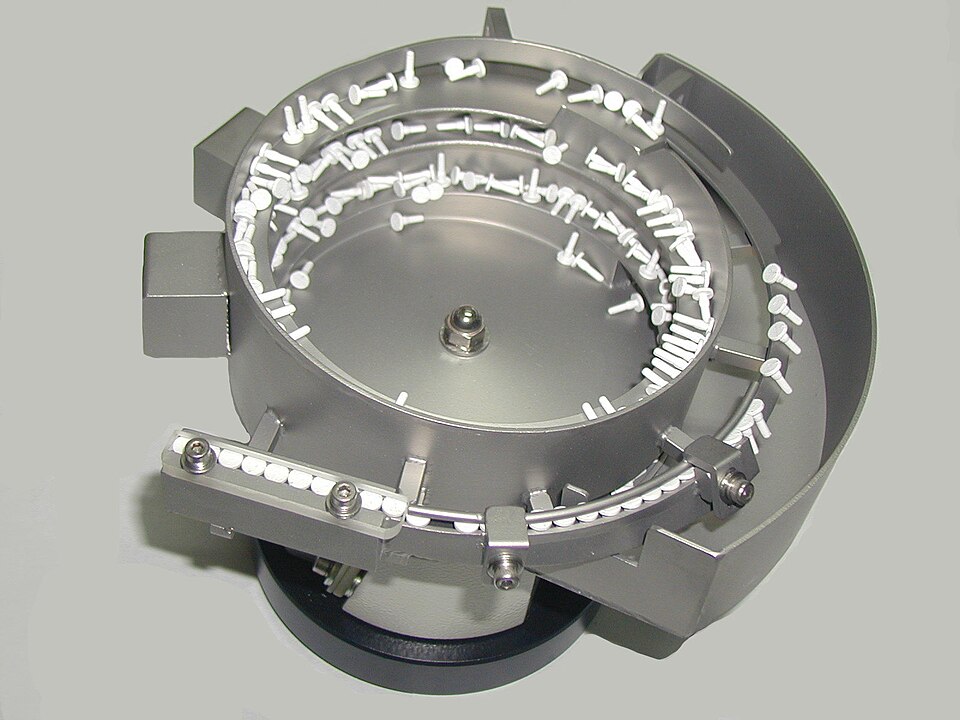

A vibratory bowl feeder solves a problem every assembly machine has: parts arrive in a bin in random orientation, but the machine needs them one at a time, all facing the same way. The feeder takes a bulk charge of screws, caps, springs, connector shells or stampings, makes them climb a spiral track inside a vibrating bowl, rejects every part that is not correctly oriented, and presents the survivors single-file at a pick point. It has no motors, grippers or vision in its basic form — orientation is done purely by gravity, vibration and shaped metal.

The machine has two vibrating halves: the Feeding Bowl on its Electromagnetic Drive Base, and the Linear Outfeed Track track with its own Inline Drive. A Bulk Hopper above keeps the bowl topped up, and the Feeder Controller runs everything on demand from the Sensing Package.

How parts climb

The drive base is a tuned two-mass spring system. Two laminated-core Drive Electromagnet coils pull the Armature Plate on the moving mass toward the heavy Base Casting every half-cycle of the mains, then the Leaf Spring Pack packs fling it back. Because the fiberglass springs are inclined 15–30° from vertical, the motion is not a simple up-down shake but a twist: the bowl simultaneously rises and rotates a fraction of a degree, then drops and rotates back. The unit is tuned so its natural frequency sits just above the drive frequency, which makes amplitude large for small coil power and keeps it stable as bowl load changes.

A part on the Spiral Track experiences thousands of microscopic throws per minute. On the upstroke the track accelerates the part up and forward; the track then drops away faster than gravity returns the part, so the part lands slightly ahead of where it left. Each hop is well under a millimetre, but at 50–120 Hz parts stream up the 1–4° helical incline at 20–150 mm/s. Throw angle, amplitude and the Bowl Coating friction together set conveying speed; the controller's Power Triac varies amplitude by chopping the AC waveform, and a Hall Sensor on some units closes the loop on actual amplitude.

Orientation tooling

The intelligence of a bowl feeder is filed and welded into the Orienting Tooling near the top of the spiral. The design philosophy is selection, not manipulation: rather than turning a wrong-way part over, the tooling simply throws it back into the bowl to try again. A narrowed ledge tips off parts lying across the track; a cutout drops parts riding on the wrong face; a Wiper Blade blade skims off doubles and stacked parts. Only parts in the single acceptable orientation survive the gauntlet to the bowl exit. Typical pass rates run 30–80 %, which is why the bowl recirculates continuously — rejected parts just ride the spiral again. Tooling a bowl for a new part remains a craft skill; toolmakers fit and adjust features by hand against sample parts, and a complex part can take days of bench tuning.

Outfeed and singulation

Correctly oriented parts transfer to the Track Rail, a machined linear rail profiled so the part cannot rotate out of orientation, covered by the Track Cover. The inline drive vibrates it longitudinally to keep the queue moving and packed. At the end, the Escapement releases exactly one part per machine cycle to the placement head or pick nozzle. A Photoelectric Sensor watching the queue switches the bowl off when the track is full — feeders run intermittently in production, which cuts wear, noise and part damage. A second sensor on the bowl calls the Hopper Tray to meter in fresh bulk stock when inventory drops; keeping the bowl between about one-quarter and half full matters because feed rate falls off when the bowl is too empty or too full.

Practical notes

Resonance tuning is the maintenance issue owners meet first: spring packs loosen or crack, the natural frequency drifts, and feed rate collapses even though everything looks intact. Re-torquing spring clamps and replacing fatigued leaves restores it. The Rubber Isolator feet matter more than they look — hard-mounting a feeder to a machine table couples vibration into everything nearby and detunes the drive. Noise from hard parts circulating in a steel bowl reaches 85 dB(A), so polyurethane coatings and a Sound Hood are standard in occupied workspaces. Despite competition from flexible vision-guided feeders, bowl feeders persist because a tuned bowl delivers a part every 200 ms for years with no programming and almost no parts to fail.
