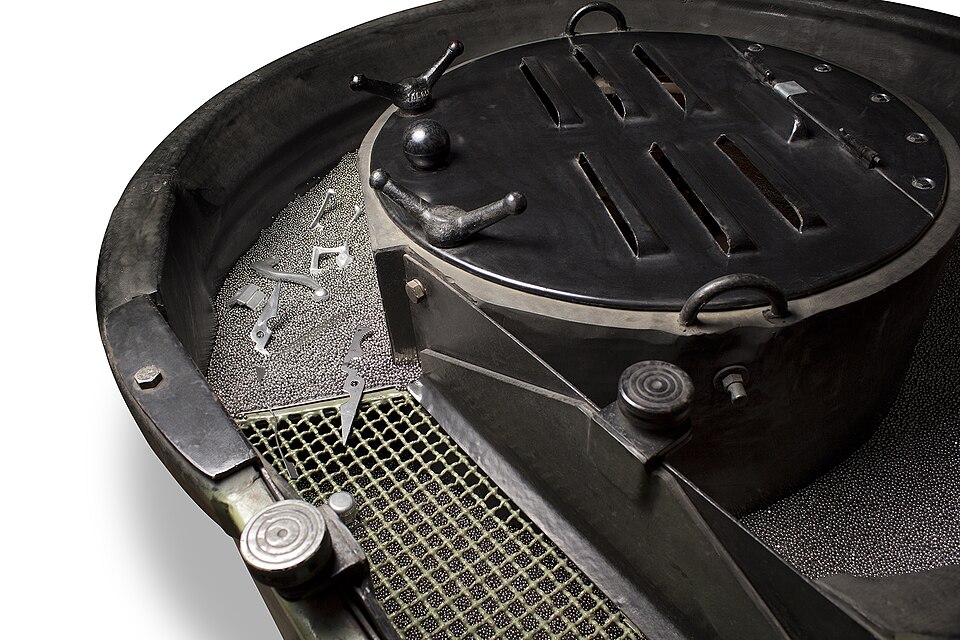

Vibratory Finishing Machine Product

Overview

Vibratory finishing is a production surface treatment method for deburring, smoothing, and polishing large batches of small metal parts (fasteners, gears, castings, stamped components) in a single operation. Rather than hand-finishing each piece individually or using sequential single-part machines, vibratory tumblers process hundreds or thousands of parts per cycle—typically 30 minutes to 2 hours—reducing labor and cost dramatically.

The process works by placing parts and Media Assembly (abrasive stones or ceramic chips) together in a vibrating Process Bowl. The vibration induces a cascading, tumbling motion: parts and media travel up the sloped bowl wall, then fall back to the bottom, repeating thousands of times per cycle. Each time a sharp burr or edge on a part contacts an abrasive stone, a small amount of material is abraded away. After the cycle, the Separator & Screen mechanically separates the small parts from the media, and the parts exit clean and deburr-free.

The Vibration Motor & Mounts is the heart—an electric motor with rotating eccentric weights, mounted on leaf springs tuned to the machine's natural frequency (typically 4–8 Hz). This resonant amplification requires far less motor power than would be needed for a static press or other non-resonant process.

How it works

A batch of deburr-required parts (castings with gates, stamped steel with cut edges, machined components with chip-forming burrs) is loaded into the Process Bowl along with a charge of Ceramic Media—typically 50–70% of the bowl volume. The media consists of shaped stones or ceramic pellets, sometimes coated with abrasive grit, sized 5–30 mm depending on the part size and finish required.

The operator or automated feeder adds water and Compound & Coolant Dispensing fluid—a proprietary finishing liquid that lubricates the process and helps suspend fine fines. The compound concentration is typically 1–5% by volume.

When the cycle begins, the Drive Motor starts spinning at 1200–1800 rpm, driving the eccentric weights. This centrifugal imbalance creates a horizontal and vertical force oscillating at the line frequency (50–60 Hz), but the mechanical design tuning causes the Leaf Spring to resonate at 4–8 Hz—much lower. This resonant response amplifies the motion, so the bowl and its contents are lifted and dropped repeatedly, creating a cascading tumble action.

As the bowl vibrates, the parts and media roll up the inner slope, then tumble back down. Each cycle of motion causes abrasion: burrs and sharp edges on the parts grind against the hard media surfaces. Small particles of metal (the burrs and smeared material) are abraded away. The harder the media and the longer the cycle, the more aggressive the action. Soft stones or plastic media are gentler on delicate parts or soft alloys.

The Dispenser Pump periodically injects additional compound, keeping the slurry active and suspending fines. The Drainage System continuously or periodically removes accumulated liquid and ultra-fine particles—a slurry of spent abrasive fines mixed with removed metal. A Submersible Pump draws this slurry from the bowl bottom and transfers it to a Slurry Settlement Tank where solids settle for disposal.

After the cycle time (set via the Control Panel, typically 30–120 minutes), the vibration stops. The operator opens the bowl or the bowl tilts, and the mixed mass of parts and media pours onto the Separator & Screen.

The separator is a vibrating deck with multiple layers of Mesh Screen of different sizes. The Separator Motor oscillates the screen, and gravity assists. Fine particles (fines smaller than 1 mm) fall through the finest mesh into a Fine Particle Hopper hopper for disposal. Medium media (2–3 mm) is separated by another layer. Large media and the finished parts exit onto a chute.

The finished parts are now smooth and deburr-free, with a controlled surface finish. The Media Assembly is returned to the bowl for the next cycle. Over time, repeated impacts fracture and wear the media, reducing its cutting action. Eventually, it must be discarded and replaced.

The entire operation is remarkably efficient. A 500 L bowl finishing 1000 small fastings per cycle in 60 minutes processes far more parts than a single operator could hand-deburr in a day. The process is continuous and scalable: larger machines with proportionally larger motors and bowls can handle thousands of parts per day, making vibratory finishing a backbone of mass finishing in automotive, aerospace, and general metal fabrication.
