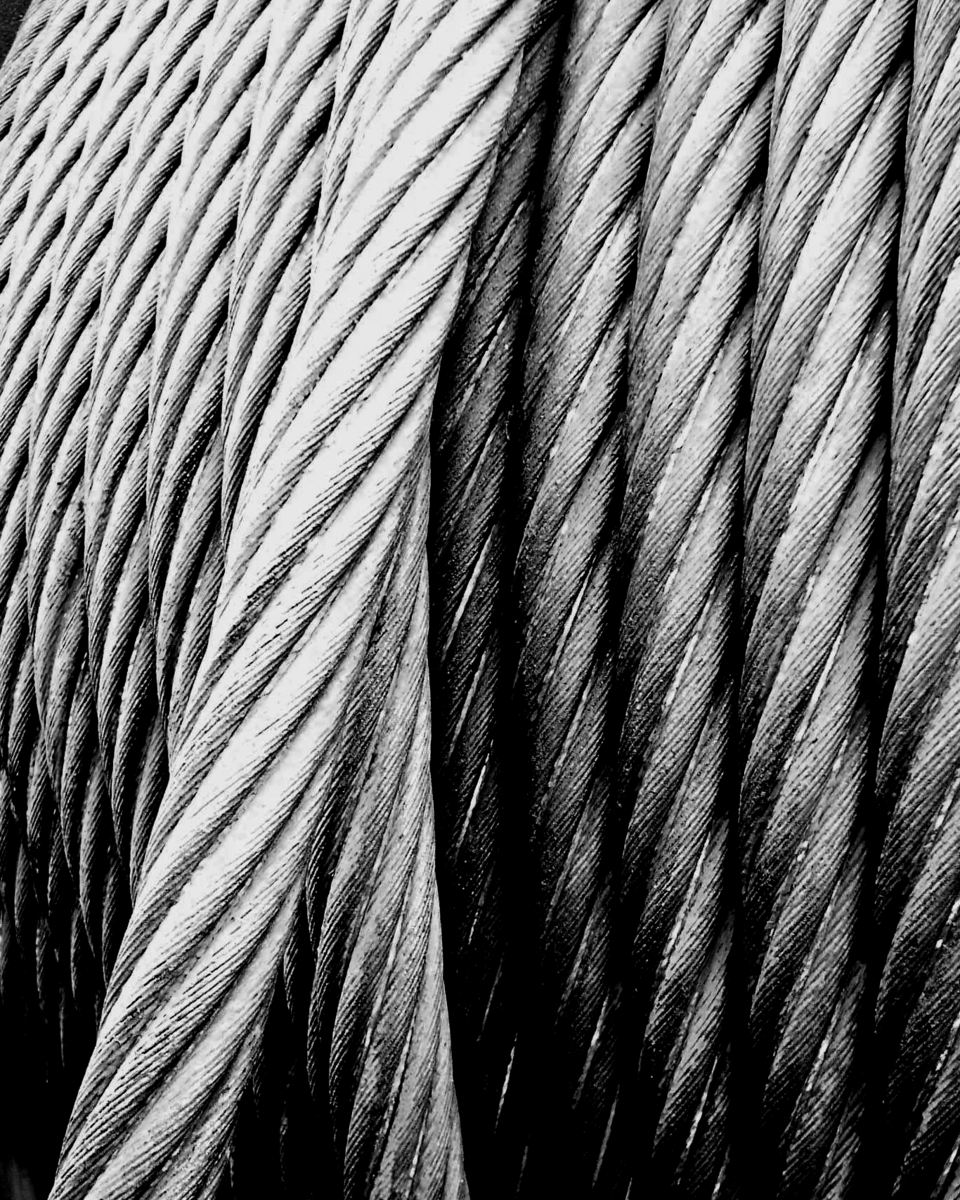

Wire Rope Closing Machine Product

Overview

A wire rope closing machine assembles twisted wire strands into a completed wire rope used in overhead power lines, suspension bridges, lifting cables, mine hoists, and marine rigging. Wire rope is distinguished from simple stranded cable by its multi-layer structure: outer strands wrap around a central core (which may be fiber, steel wire, or an additional independent strand assembly). The rope is engineered for high tensile strength (800–2000 MPa) and flexibility, making it indispensable in heavy-load and long-span applications.

Wire rope is produced in two stages: (1) strands are twisted from individual wires on a Wire Stranding Machine, then (2) finished strands are assembled into rope on a closing machine. The closing machine applies 6–8 twisted strands around a central core in a helical pattern, preforms the structure to lock the geometry, and then hauls off and winds the finished product.

Wire rope mills are specialized factories: an overhead-transmission operator might have dozens of closing machines running continuously, each producing different rope diameters and grades for distinct applications (pole-top transmission, tower rigging, guy-wire suspension). A single large bridge suspension cable involves millions of tons of wire rope, all produced on machines of this type.

How It Works

The rope-closing cycle orchestrates strand rotation and haul-off: (1) Pre-twisted strands (each made on a Wire Stranding Machine) are mounted on bobbins and loaded into the Strand Rotating Cage Assembly. The cage carries typically 6 or 8 bobbins arranged symmetrically. (2) The cage is driven to rotate at a constant speed (10–60 rpm, depending on desired lay length) by the main motor via a Drive Belt. As the cage orbits around the centerline, each strand is pulled outward and wraps around the rope core (which may be a fiber bundle, a separate steel wire core, or an independent-strand-core (IWRC)). (3) The Preformer Unit shapes the six or eight helical strands into the rope profile before the die, reducing strain and improving geometry. (4) The Closing Die Unit compacts the strands around the core, locking the rope structure and producing the final rope diameter. (5) The Backtwist Die Unit applies counter-rotation to cancel the twist imparted by the cage orbit. Without backtwist, the rope would have residual torque (tendency to untwist), making it difficult to handle and coil. (6) The Haul-Off System pulls the rope through at constant speed (20–80 m/min), decoupling the rope extraction rate from cage dynamics. (7) The finished rope winds onto the Reel and Takeup Assembly.

The lay length is computed similarly to strand lay in a Wire Stranding Machine: Lay (mm) = (Haul-Off Speed m/min / Cage RPM) × Cage Circumference × Conversion Factor. For a 50 mm rope with bobbins orbiting at 25 rpm and hauled off at 40 m/min, the lay is typically 20–30 mm. Lay length affects rope flexibility and fatigue resistance: tighter lays produce stiffer, higher-strength ropes (good for crushing loads); longer lays yield more flexible ropes (good for bending over sheaves and repeated cyclic loading). Lay length is a critical specification for each application and is controlled to within ±5% by the control system.

Rope Structure and Geometry

Standard wire rope structures include:

• 6×7 Construction: 6 strands, each made of 7 wires (1 central wire + 6 surrounding), around a fiber core. Commonly used, good balance of strength and flexibility.
• 6×19 Construction: 6 strands, each made of 19 wires (1 central + 18 surrounding), around a fiber core. More flexible than 6×7, better for repeated bending over sheaves.
• 8×19 Construction: 8 strands of 19 wires each, around a fiber or steel-wire core. Used for high-strength applications (bridges, mining).
• Independent Wire Rope Core (IWRC): Some ropes replace the fiber core with a seventh strand made of twisted wire. IWRC ropes have slightly higher strength than fiber-core ropes (5–10% increase) and better high-temperature tolerance.

Each strand is pre-twisted to a specific lay length (typically 8–15 mm within the strand), then combined with other strands at a different lay length (the rope lay, 20–40 mm) to create a stable, interlocked structure. The different lay lengths prevent the strands from untwisting or collapsing.

Preforming and Compaction

The Preformer Unit is a critical control point. Without preforming, the six twisted strands arriving at the closing die are slightly loose and cylindrical. The preformer gradually shapes them into the rope cross-section before they are squeezed in the die, reducing the die's pressure requirement and improving the final geometry. A well-designed preformer ensures that:

• All strands are equally compressed.
• The core is centered and not squeezed.
• The outer surface is smooth and free of valleys or high spots.

The Preformer Block is often heated (to ~50–80 °C) to slightly soften the strand surfaces, improving deformation and surface contact. Without heating, a hard preformer can crimp or crack wire surfaces.

Backtwist and Torque Neutralization

The Backtwist Die Unit is a sophisticated device. As the cage rotates clockwise at, say, 25 rpm, it imparts a clockwise twist to the assembled rope. Without backtwist, the finished rope would have residual clockwise torque: if you uncoil it on a reel, it will twist back on itself and coil, making it difficult to pull and lay. The backtwist roller applies counter-clockwise rotation (via a mechanical linkage or motor-driven cam) to cancel this twist, producing a rope with near-zero residual torque. Residual torque is measured as twist per meter: specifications often call for <0.5 turns/meter after backtwist.

Achieving perfect backtwist requires closed-loop feedback: an Encoder on the backtwist roller measures its rotation and adjusts the counter-torque in real-time to match the cage-induced twist. Modern control systems can achieve ±0.2 turn/meter residual-torque accuracy.

Haul-Off Synchronization

The Haul-Off System is the most powerful motor on the machine. It must pull the entire weight of six or eight assembled strands (at 100–500 kg/hour production rate) plus overcome friction in the preformer and closing die. The haul-off wheel is typically 200–500 mm diameter and is grooved to grip the rope without slipping. Slip would cause the rope to untwist and geometry to degrade. Grooved wheels are often made of synthetic rubber (polyurethane or elastomer) with a shear modulus of ~5–10 MPa, providing good grip and cushioning.

The haul-off speed is electronically regulated: the control system uses proportional-integral (PI) feedback from an Encoder on the haul-off wheel to maintain constant linear rope speed, compensating for load changes due to strand feed variations or die friction changes.

Wire Material and Rope Grades

Wire rope is manufactured from cold-drawn steel wire, graded by tensile strength and composition:

• Grade 1570: Minimum tensile strength 1570 MPa; common for transmission cables and general lifting.
• Grade 1770: Minimum 1770 MPa; higher strength, used for bridge suspensions and demanding applications.
• Grade 1960: Minimum 1960 MPa; premium strength, used in mine hoists and extreme-load applications.

Stainless steel wire rope (300 or 316 series) is also produced on closing machines for corrosion-resistant applications (marine, chemical plants); it is softer than carbon steel and requires adjusted cage speeds and die pressures.

Integration with Power Transmission and Infrastructure

Wire rope produced on closing machines is used in:

• Overhead Power Transmission: Aluminum conductors wound on a steel-wire-core rope form transmission lines rated 69 kV and above, spanning hundreds of meters between towers.
• Bridge Suspension Cables: The iconic suspension cables of large bridges (e.g., Golden Gate) are bundles of parallel wires or wire ropes, each manufactured on closing machines.
• Mining and Hoisting: Heavy-duty mine hoists and elevator cables use high-strength wire rope produced to stringent specifications.
• Marine and Rigging: Ship mooring cables, offshore oil-rig rigging, and lifting slings all use wire rope.

Specialized mills produce custom rope geometries for unique applications: asymmetric rope (more strands on one side), dual-core rope (two separate cores for safety), or hybrid rope (combining steel and synthetic-fiber strands for weight reduction).

Testing and Certification

Finished wire rope undergoes:

• Tensile Breaking Strength: A sample length is anchored in a hydraulic press and pulled to failure; the breaking load is measured and must exceed the rope's published Minimum Breaking Strength (MBS).
• Lay Length Verification: Measurement of the pitch and confirmation that it meets specification (e.g., 25 mm ±2 mm).
• Residual Torque: Assessment of twist per meter after backtwist (should be <0.5 turn/meter).
• Compaction and Geometry: Visual and mechanical inspection of the rope cross-section to ensure all strands are equally compacted and the core is centered.
• Fatigue Testing: Repeated bending of rope samples around sheaves to simulate real-world cyclic loading and verify fatigue resistance.

Batches are also tested for corrosion (salt-spray exposure) and temperature-cycling durability if destined for harsh environments.

Troubleshooting and Maintenance

Common issues in rope production:

• Uneven strand feed: Indicates worn preformer, die misalignment, or strand bobbin imbalance. Corrected by preformer inspection/replacement and bobbin-tension recalibration.
• Rope surface defects (flats, wrinkles): Caused by inadequate preforming or die wear. Corrected by preformer heating and die maintenance.
• High residual torque: Indicates backtwist inadequacy, typically from slip in the backtwist roller or encoder error. Corrected by checking roller grip and recalibrating backtwist feedback.
• Strand bunching or separation: Occurs if cage or haul-off speeds drift out of sync, causing uneven tension. Corrected by ensuring stable motor speed and checking load-cell feedback.

Routine maintenance includes monthly backtwist-roller inspection, quarterly die cleaning and dimensional checking, and semi-annual bearing and drive-belt inspection. The preformer block may require resurfacing or replacement annually in high-volume production.
