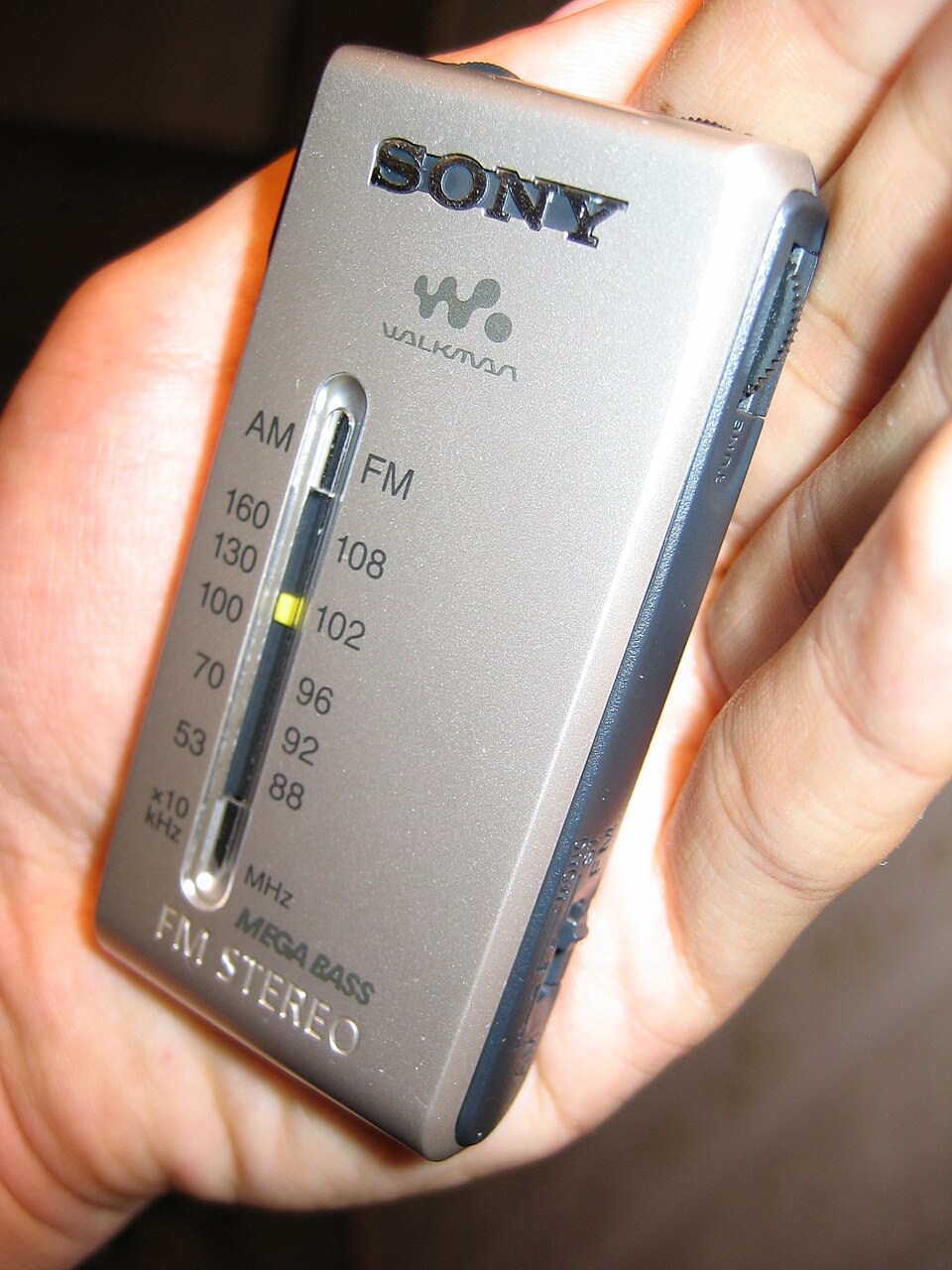

Portable AM/FM Radio

Product

Overview

The portable AM/FM radio is the longest-lived consumer electronic product still in production, and nearly every unit made since the 1950s uses the same architecture: the superheterodyne receiver. Rather than amplifying the wanted station at its own frequency, the receiver converts every station to a single fixed intermediate frequency where high-quality filtering and gain are easy, then demodulates. One design of filter chain serves the whole dial, that economy is why the superhet displaced every rival architecture.

The signal path runs from the Antenna Set through the Tuner Front End, the IF and Demodulator Section section, and the Audio Amplifier into the Speaker Assembly. The two bands differ in carrier frequency by two orders of magnitude and in modulation entirely, so the Band Selector Switch swaps antenna, tuned circuits, and IF path between them.

The superheterodyne principle

In the front end, the incoming station is amplified and applied to a mixer along with a local oscillator running a fixed offset above it. The mixer output contains the difference frequency, so whatever station is tuned, the product lands at the same IF: 455 kHz for AM, 10.7 MHz for FM. Classic designs tune both the RF circuit and the oscillator with the ganged Variable Tuning Capacitor, its sections tracking together thanks to factory alignment of the RF / Oscillator Coil Set; the Dial Cord Drive drags the Dial Pointer across the Dial Scale as the gang rotates. Modern DSP radios replace the gang with Varactor Diode diodes steered by a synthesiser inside the AM/FM Receiver IC, and show frequency on an LCD Panel instead of a dial, but the architecture underneath is unchanged.

Selectivity lives in the IF strip. The 455 kHz Ceramic Filter passes one 9–10 kHz AM channel and rejects neighbours; the 10.7 MHz Ceramic Filter passes the ~280 kHz an FM signal with ±75 kHz deviation occupies. Slug-tuned IF Transformer stages add gain and further shaping. The Detector Stage then recovers audio two different ways: AM by envelope detection, simply following the amplitude of the carrier; FM by a quadrature detector that converts frequency swing to voltage after limiting strips away amplitude noise, which is precisely why FM shrugs off the static that plagues AM. An AGC Network feeds detected level back to the front end so a 50 kW local station and a distant one play at comparable volume.

Antennas for two very different bands

A medium-wave wavelength is around 300 m, so no portable antenna can be electrically large at AM. The Ferrite Rod Antenna solves this magnetically: a high-permeability bar concentrates the signal's magnetic field through a litz-wire Copper Winding, forming a compact tuned loop. It is strongly directional, with sharp nulls off the rod's ends, rotating the whole radio to null interference or peak a station is normal operation. At FM, a wavelength is about 3 m and the Telescopic Whip Antenna works as a genuine quarter-wave element; the Whip Pivot Base lets it tilt because FM multipath in buildings makes orientation matter.

Audio and power

The Audio Power Amplifier IC is a small class-AB stage delivering 0.5–1 W into a 77 mm 8 Ω Speaker, with the Volume Potentiometer usually doubling as the power switch and a Tone Control Network to roll treble off noisy AM. The cabinet front is the speaker's baffle, and the Speaker Mounting Gasket matters more than it looks: an unsealed rim lets the cone's rear wave cancel the front wave and the radio buzzes at volume.

Total drain at listening level is 15–30 mA, which is the product's quiet superpower, a set of cells in the Battery Holder lasts 50 to 200 hours, far beyond any rechargeable gadget, and the DC Input Jack with its Polarity Protection Diode takes a mains adapter for desk use. That endurance, plus broadcast infrastructure that keeps working when cell networks fail, is why emergency-preparedness guidance worldwide still lists a battery AM/FM radio alongside water and a torch.

Portable AM/FM Radio parts and their functions

8 top-level parts · 170 parts in total · full bill of materials below
Portable AM/FM Radio parts diagram: 1 tuner front end, 2 IF and demodulator section, 3 audio amplifier, 4 speaker assembly, 5 antenna set, 6 tuning and controls, 7 power section, 8 cabinet. 170 parts in 8 top-level items.
Portable AM/FM Radio parts diagram. Numbers match the table below; each box is one top-level part or assembly with what it contains.
#PartQtyWhat it does
1 Tuner Front End 6 parts 1× RF amplifier, mixer, local oscillator
2 IF and Demodulator Section 6 parts 1× IF filtering and demodulation
3 Audio Amplifier 5 parts 1× Audio amplifier stage
4 Speaker Assembly 4 parts 1× Loudspeaker
5 Antenna Set 4 parts 1× Telescopic whip and ferrite rod
6 Tuning and Controls 6 parts 1× Tuning, volume, band controls
7 Power Section 5 parts 1× Battery and mains power
8 Cabinet 5 parts 1× Cabinet and hardware

3D model

No 3D model yet. Have a CAD file of this? Add a 3D model. STL renders right on this page; STEP, FreeCAD, and OpenSCAD sources are welcome too (openly licensed, like all 3D models on BOMwiki).

Build & assembly graph

expand / collapse · shared sub-assemblies converge · links to related products · est. labour
product / assembly shared across products atomic part related product

Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.

Bill of materials for Portable AM/FM Radio

8 top-level lines · 49 rows shown · 170 parts total · indented to 3 levels
# Item / sub-assembly Part no. Qty/assy Ext. qty Parts Type
1 Tuner Front End 6 parts am-fm-radio-tuner-front-end 1× 1 66 assembly
1.1 AM/FM Receiver IC am-fm-radio-receiver-ic 1× 1 · part
1.2 Varactor Diode am-fm-radio-varicap 2× 2 · part
1.3 Variable Tuning Capacitor am-fm-radio-tuning-cap 1× 1 · part
1.4 RF / Oscillator Coil Set am-fm-radio-rf-coils 1× 1 · part
1.5 Band Selector Switch am-fm-radio-band-switch 1× 1 · part
1.6 SMD Passive (R/C/L) smd-passives 60× 60 · part
2 IF and Demodulator Section 6 parts am-fm-radio-if-demod 1× 1 46 assembly
2.1 455 kHz Ceramic Filter am-fm-radio-ceramic-filter-455 1× 1 · part
2.2 10.7 MHz Ceramic Filter am-fm-radio-ceramic-filter-107 1× 1 · part
2.3 IF Transformer am-fm-radio-if-transformer 2× 2 · part
2.4 Detector Stage am-fm-radio-detector 1× 1 · part
2.5 AGC Network am-fm-radio-agc-network 1× 1 · part
2.6 SMD Passive (R/C/L) smd-passives 40× 40 · part
3 Audio Amplifier 5 parts am-fm-radio-audio-amp 1× 1 34 assembly
3.1 Audio Power Amplifier IC am-fm-radio-audio-amp-ic 1× 1 · part
3.2 Volume Potentiometer am-fm-radio-volume-pot 1× 1 · part
3.3 Tone Control Network am-fm-radio-tone-network 1× 1 · part
3.4 Connector connector 1× 1 · part
3.5 SMD Passive (R/C/L) smd-passives 30× 30 · part
4 Speaker Assembly 4 parts am-fm-radio-speaker-assy 1× 1 4 assembly
4.1 Speaker speaker 1× 1 · part
4.2 Speaker Mounting Gasket am-fm-radio-speaker-gasket 1× 1 · part
4.3 Grille Cloth / Mesh am-fm-radio-grille-cloth 1× 1 · part
4.4 Fastener Set fastener-set 1× 1 · part
5 Antenna Set 4 parts am-fm-radio-antennas 1× 1 4 assembly
5.1 Telescopic Whip Antenna am-fm-radio-telescopic-whip 1× 1 · part
5.2 Ferrite Rod Antenna am-fm-radio-ferrite-rod 1× 1 · part
5.3 Whip Pivot Base am-fm-radio-whip-pivot 1× 1 · part
5.4 Copper Winding copper-winding 1× 1 · part
6 Tuning and Controls 6 parts am-fm-radio-tuning-controls 1× 1 6 assembly
6.1 Tuning Knob am-fm-radio-tuning-knob 1× 1 · part
6.2 Dial Cord Drive am-fm-radio-dial-drive 1× 1 · part
6.3 Dial Scale am-fm-radio-dial-scale 1× 1 · part
6.4 Dial Pointer am-fm-radio-pointer 1× 1 · part
6.5 LCD Panel lcd-panel 1× 1 · part
6.6 Tune Indicator LED am-fm-radio-tuning-led 1× 1 · part
7 Power Section 5 parts am-fm-radio-power 1× 1 5 assembly
7.1 Battery Holder am-fm-radio-battery-holder 1× 1 · part
7.2 DC Input Jack am-fm-radio-dc-jack 1× 1 · part
7.3 Polarity Protection Diode am-fm-radio-polarity-diode 1× 1 · part
7.4 Wire Bundle wire-bundle 1× 1 · part
7.5 Power Supply power-supply 1× 1 · part
8 Cabinet 5 parts am-fm-radio-cabinet 1× 1 5 assembly
8.1 Front Cabinet am-fm-radio-front-cabinet 1× 1 · part
8.2 Rear Cabinet am-fm-radio-rear-cabinet 1× 1 · part
8.3 Carry Handle am-fm-radio-handle 1× 1 · part
8.4 Battery Door am-fm-radio-battery-door 1× 1 · part
8.5 Fastener Set fastener-set 1× 1 · part

Something wrong in this list? Report a problem with this BOM.
