Garment Steamer Product

Overview

A garment steamer removes wrinkles by relaxing fabric rather than pressing it. Steam at roughly 98 °C carries both heat and moisture into the weave; the moisture plasticizes the fibers (wool, silk, polyester, and cotton all soften when hot and damp), the weight of the hanging garment pulls them straight, and they cool in the relaxed state seconds later. No part of the process applies pressure, which is why a steamer handles pleated, beaded, lined, and delicate garments that an iron's soleplate would crush or scorch, and why it cannot produce a sharp trouser crease, which requires exactly the pressing a steamer omits.

The standing format puts a 1.5–3.8 L Water Tank and a mains-powered Boiler Assembly in a wheeled Base Housing, with steam traveling up a 1.5 m Steam Hose to a hand-held Steam Head. A telescopic Pole & Hanger with a fold-out Garment Hanger holds the garment at working height.

How it works

Water leaves the tank through the Tank Seat, whose center pin opens the spring valve in the Tank Cap; lift the tank off and the Tank Check Valve closes so a full tank carries to the sink without dripping. From the seat, water passes the Anti-Scale Cartridge and reaches the Boiler Shell, a die-cast aluminum chamber with a 1,500–1,800 W Heating Element cast into its floor. Basic units gravity-feed continuously; better ones meter water with the Feed Pump, which lets the Steam Output Dial set output anywhere from about 20 to 40 g/min instead of running flat out.

The boiler holds only a few tens of millilitres at a time, so it reaches boiling in 45–60 seconds, far faster than heating the whole tank. Steam exits through the Steam Outlet Fitting at essentially atmospheric pressure; unlike a pressurized steam-station iron there is no pressure vessel, just an open path up the hose. The Boiler Thermostat cycles the element to hold boiling, the Low-Water Sensor cuts power before the chamber runs dry, and a one-shot Thermal Fuse backs both up; dry-firing a cast-in element warps the chamber within a minute.

The hose is part of the thermodynamics, not just plumbing. Steam condenses on the hose wall continuously, and the design assumes it: the hose must run upward so condensate drains back into the boiler instead of pooling and then spitting hot water at the garment. This is why instructions insist the hose stay extended and vertical during use, and why the head parks upright on the Head Parking Hook between garments. A gurgling hose means condensate has pooled at a low loop.

At the head

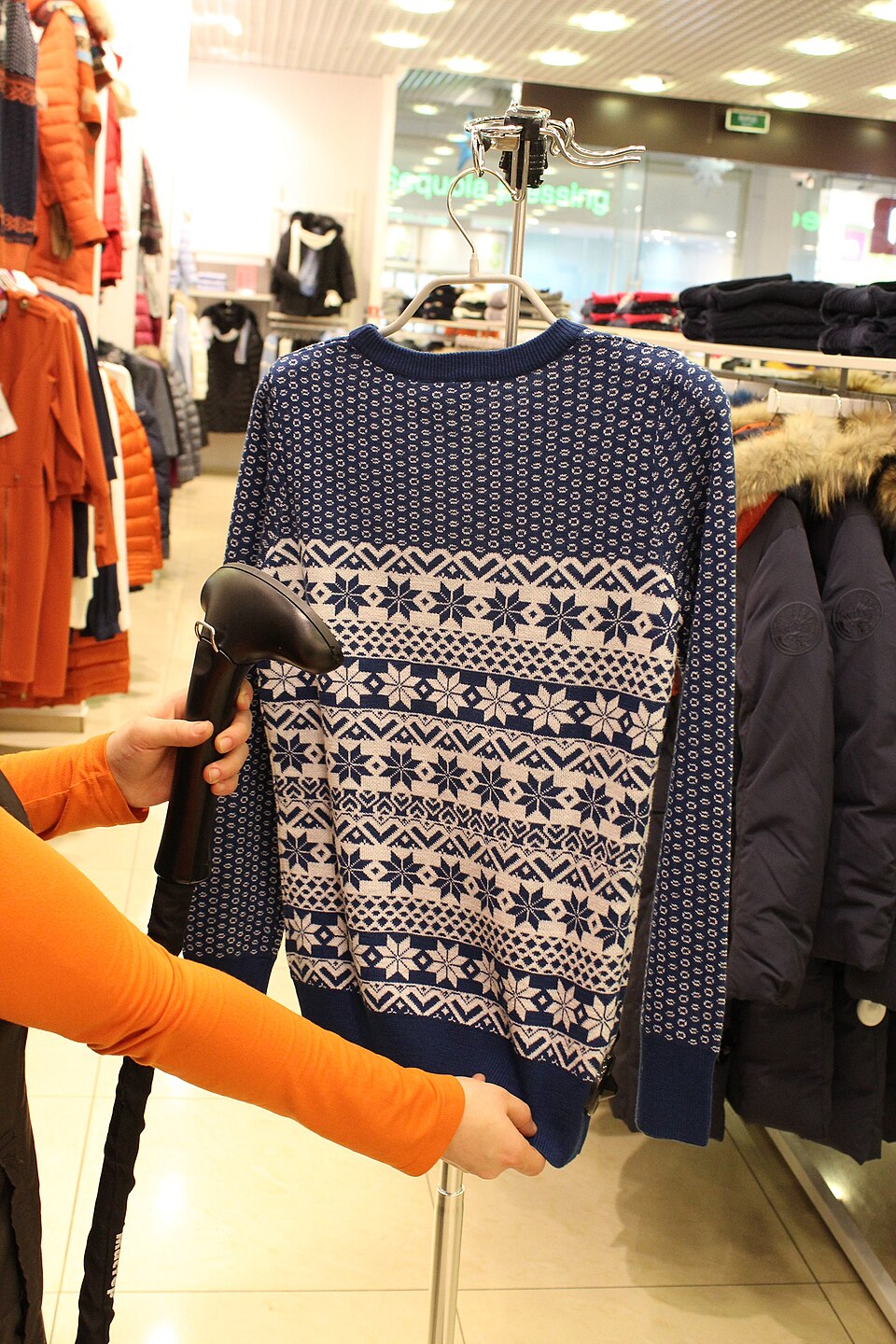

The Steam Head spreads steam through slots in the Head Plate; on better models the plate is heated aluminum, which both prevents condensation drips at the outlet and adds a light pressing action as it glides. Technique is contact or near-contact passes downward along the hanging fabric, with the free hand tensioning the hem. The clip-on Fabric Brush Attachment opens the weave of heavier materials such as coats and upholstery so steam penetrates instead of skating over the surface, and the Trouser Clip pair on the pole tensions trouser legs.

Steam at the head sits near 98 °C, hot enough that the same pass that relaxes wrinkles also kills dust mites and most odor-causing bacteria, which is why steamers double as refreshers for garments between washes, curtains, and mattresses.

Construction and upkeep

The Housing Shell clamshell carries the pole socket, the Cord Wrap, and two Wheel Assembly casters for moving the filled unit. The three Pole Section tubes lock at any height with Locking Collar clamps. Controls stay minimal: the Power Switch carries the element load directly, and the Indicator Lamp shows power and ready states.

Scale is the dominant failure mode. Hardness minerals concentrate in the boiler as pure steam leaves, and a scaled chamber spits white flecks, loses steam rate, and eventually insulates the thermostat into misbehavior. The Anti-Scale Cartridge slows this; periodic descaling with citric or acetic acid solution through the tank circuit reverses it. Run time per fill is 45–90 minutes depending on tank size and steam rate, a 3 L tank at 30 g/min lasts about 100 minutes by straight arithmetic, less in practice because of hose condensation losses. The appliance falls under IEC 60335-2-85, the safety standard specific to fabric steamers, which covers spill behavior, surface temperatures, and the dry-run protection chain described above.
