Overview

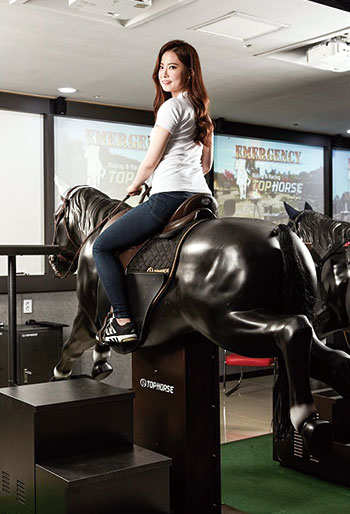

A horse riding simulator is a therapeutic and instructional platform that replicates the motion, balance challenges, and postural feedback of real horseback riding. An articulated fiberglass horse body with motorized actuators simulates authentic gaits—walk, trot, canter, and gallop—while pressure sensors under the saddle monitor the rider's seat stability and weight distribution.

These simulators are used in therapeutic contexts (physical rehabilitation, balance disorders, equestrian sports training) and educational settings (riding schools, adaptive sports programs). Unlike traditional horse training, which requires access to live horses and trained handlers, simulators allow consistent, repeatable, low-risk practice.

The motion is generated by coordinated linear and rotational actuators: vertical bounce mimics the up-and-down rhythm of a trot, lateral sway mirrors the horse's side-to-side weight shift, and neck motion adds realism to the overall dynamic pattern.

How it works

The rider mounts the Saddle and Mounting, which has been adjusted to the rider's leg length (stirrup height). The instructor selects a gait and speed via the Instructor Interface.

For example, trotting:

1. The Gait Controller commands the Vertical Motion Actuator to move upward and downward at 2 Hz (120 BPM, typical trot cadence).
2. Simultaneously, the Lateral Motion Actuator oscillates side-to-side at the same frequency, creating the characteristic diagonal leg-pair motion of a trot.
3. The Neck Articulation subtly rotates, adding realism.
4. The Pressure Sensor Array under the saddle monitors whether the rider's weight is centered or shifted (a mark of good vs. poor seat stability).

Real-time feedback is displayed on the Display Screen: the rider sees a virtual arena or trail, and performance metrics (seat pressure distribution, heel position from Stirrup Load Cell) appear as overlay cues.

The instructor watches real-time posture data from the Rider IMU and can pause, adjust gait, or provide verbal cueing.

Therapeutic applications

Balance and vestibular rehabilitation: Stroke and inner-ear patients regain balance and proprioception through dynamic sitting on a moving platform. The trotting motion (2 Hz oscillation) naturally stimulates the vestibular system—no medication, no dizziness risk.

Core strength: Maintaining seat stability on a trotting horse requires active core muscles. Patients with spinal cord injuries or core weakness show measurable improvement after 8–12 weeks of 2–3 sessions/week.

Confidence building: Adaptive athletes with mobility concerns can experience "horseback riding" sensation without the injury risk of live horses. Psychological benefits of horsemanship (animal bonding, achievement) translate to improved quality of life metrics.

Gait biomechanics

Each gait has distinct timing and amplitude:

Walk (1 Hz):

• Vertical: ±25 mm
• Lateral: ±30 mm
• Four-beat rhythm (one leg at a time)
• Beginner-friendly, low effort

Trot (2 Hz):

• Vertical: ±75 mm
• Lateral: ±40 mm
• Two-beat diagonal rhythm (opposite legs together)
• Requires active seat engagement; intermediate difficulty

Canter (2.5 Hz):

• Vertical: ±60 mm
• Lateral: ±35 mm
• Three-beat rhythm with a "suspension" phase
• Smooth and flowing; advanced riders often prefer

Gallop (3+ Hz):

• Vertical: ±100 mm
• Lateral: ±50 mm
• Four-beat rhythm with larger suspension
• High effort; used for advanced training only

The simulator adjusts motion parameters to match real horse biomechanics, ensuring transfer of skills to live riding.

Postural feedback and instruction

The Seat Balance Monitoring continuously measure:

• Seat center-of-gravity: Pressure pad detects whether rider is centered or tilted forward/backward
• Heel position: Load cells in stirrups reveal if rider is "pushing" heels down (correct) or pointing toes (incorrect)
• Torso lean: IMU measures spine angle relative to vertical (ideal: upright for English riding, slight fold for jumping)

Real-time visual feedback on screen shows these metrics as overlays or gauges, allowing riders to self-correct mid-session.

Sports training applications

Equestrian athletes (show jumping, dressage, cross-country) use simulators for skill refinement during off-season or in bad weather. Repetitive muscle memory practice on a simulator reduces transition time to live horses.

Olympic preparatory programs in countries with limited horse access (Dubai, Singapore) deploy simulators to develop talent before international competition.

Design considerations

Safety: The Safety Rails with pressure-sensitive pads catch riders if they begin to tip. The Base Support Structure is weighted to resist tipping even at maximum gait intensity.

Rider comfort: The Vibration Isolators (elastomer pads) absorb high-frequency vibration from actuator motors, preventing jarring or muscle fatigue.

Accessibility: Ramps or adjustable mounting blocks allow wheelchair-bound riders to transfer safely onto the saddle. The Base Platform is stable enough to accommodate mounting assistance.

Audio and visual environment

Most simulators include a Display Screen showing a virtual arena or outdoor trail. Some installations add optional Surround Projection dome projection for 180°+ immersion.

Audio—hoof beats, ambient sounds, instructor voice—is synced to motion, enhancing the illusion.

Clinical outcomes

Studies show that equine simulator therapy improves:

• Balance confidence: Measured via Berg Balance Scale (+15–30% over 8-week programs)
• Core activation: EMG measures show increased rectus abdominis and erector spinae engagement
• Transfer to live riding: ~60% of simulator-trained riders transition successfully to live horses
• Psychological outcomes: Self-efficacy and quality-of-life scores improve significantly in chronic pain and neurological populations

Installation and operation

Simulator installations require:

• 4 m × 3 m floor space minimum
• 3.5 m ceiling height
• 220V 3-phase power
• Climate control (18–25°C; overheating can shut down motors)

Maintenance: Actuators and motors should be inspected monthly; drive belts replaced annually.

Lead times: 12–16 weeks for custom builds; 4–6 weeks for standard configurations.
