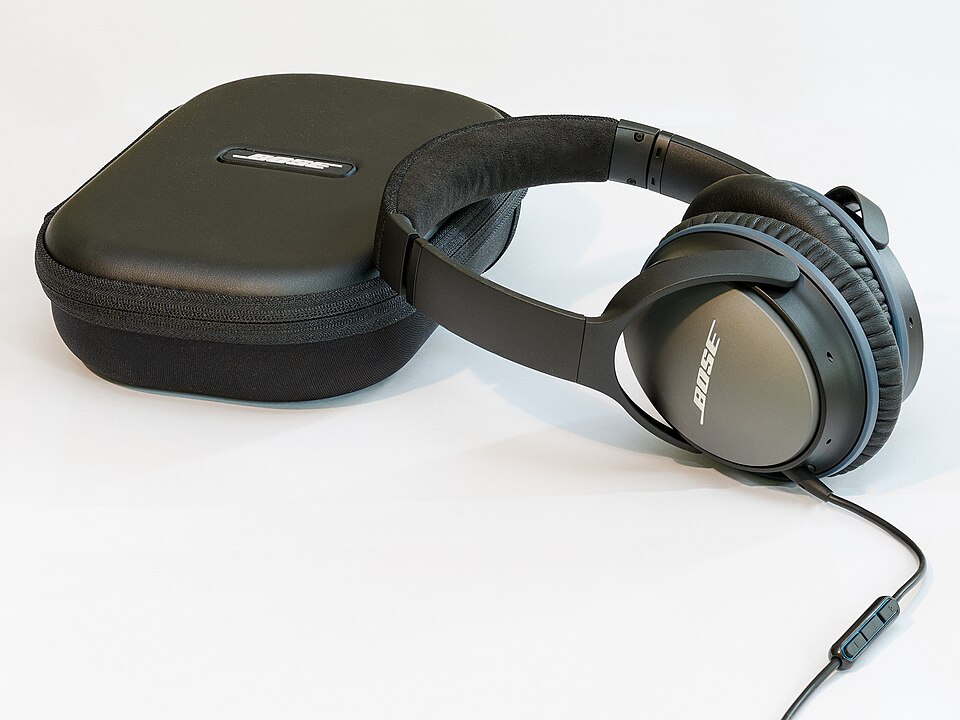

Noise-Cancelling Headphones Product

Overview

Noise-cancelling headphones use a combination of passive isolation and active noise cancellation (ANC) to reduce ambient sound, enabling listening to music or calls in noisy environments like planes, trains, and city streets without high volume. This design employs hybrid ANC: a Feedforward Microphone on the outside of the Left Ear Cup detects engine rumble and traffic noise, while a Feedback Microphone inside the right cup listens to residual noise at the listener's ear. The ANC DSP Module processes both signals, generates an inverse waveform, and feeds it to the Audio DAC and Amp, where it is mixed with music and sent to the drivers. The Bluetooth Module module handles Bluetooth streaming from phones or laptops.

How it works

Active noise cancellation starts with the Feedforward Microphone, which sits in a small hole on the outside of the left ear cup. This microphone "hears" engine noise, road rumble, and conversation—the ambient sounds the wearer wishes to escape. The audio signal is captured by the Microphone Preamp, which conditions and digitizes it, sending the result to the ANC DSP IC.

The DSP analyzes the incoming noise and computes an inverse replica: if the noise is a sine wave at 100 Hz, the DSP generates a 100 Hz sine wave shifted 180 degrees out of phase (a "negative" of the original). This anti-noise is instantaneously added to the music signal and amplified by the Headphone Amplifier.

Simultaneously, the Feedback Microphone sits inside the right ear cup, sampling the sound actually arriving at the listener's ear. If the anti-noise is working perfectly, the feedback mic hears only music plus residual uncanceled noise. The DSP uses this feedback to adjust the anti-noise in real time, forming a "closed loop" that adapts to changing noise and even the fit of the headphones on the wearer's head. This feedback path is why hybrid ANC is more effective than feedforward-only designs.

The Audio DAC IC decodes Bluetooth audio packets from a smartphone or computer (via the Bluetooth Module module), converting digital data to analog samples. These samples are mixed in the analog domain or digitally mixed with the anti-noise signal before being sent to the Headphone Amplifier. The amplifier drives the Left Driver and Right Driver, which are 40 mm dynamic drivers tuned for a balanced response across music (bass, midrange, treble) despite the ear cup being sealed.

The Rechargeable Battery powers the entire system: DSP, amplifier, Bluetooth SoC, and microphone preamps. With ANC enabled, current draw is around 100 mA; with ANC off (for lower battery consumption), draw drops to 30 mA, extending battery life from 30 to 40 hours on a charge.

The Control Panel touch pad on the right ear cup allows the wearer to toggle ANC on/off, cycle through modes (ANC high, medium, low, passthrough), or hand over to voice assistant (Siri, Google Assistant) by holding down. All control signals are routed through the Bluetooth Module module's onboard MCU or the ANC DSP IC.

The Padded Headband uses a self-adjusting clamp force design: the Adjustment Springs allow the ear cups to tilt and slide until a balanced fit is achieved. The Ear Pad Foam foam ensures a comfortable seal, which is essential for both passive isolation and ANC performance (a poor seal means room noise leaks in, defeating both mechanisms).

Design rationale

Hybrid ANC (feedforward + feedback) is chosen over feedforward-only because:

1. Feedforward excels at reducing low-frequency plane/engine noise (which has long wavelengths and low variability).
2. Feedback excels at adapting to individual ear geometry and seal quality, catching residual noise that feedforward missed.
3. Together, they typically achieve 20–30 dB attenuation of low frequencies (125 Hz and below), making jet engines tolerable even without music.

40 mm drivers are chosen for comfort and sound quality: large enough to deliver bass and dynamic range, but small enough to fit in an over-ear housing without creating excessive clamping force.

Bluetooth 5.0 provides lower latency and better range than older BLE standards, essential for high-quality audio (AptX, LDAC codecs). The latency (typically 100–200 ms) is acceptable for music and video calls but not for gaming; wired input via a Connector (3.5 mm jack) is provided as a fallback.

Dual microphones (feedback and feedforward) are essential to hybrid ANC; removing either one cuts attenuation by half. The feedback mic must be close to the ear to measure the sound arriving at the eardrum; the feedforward mic must be external to sense incoming ambient noise.

Folding frame allows the headphones to fit into a backpack or carry case, crucial for frequent travelers.

Large battery (3000 mAh) enables 30+ hours of ANC playback—longer than many international flights—reducing the need to carry a charger or power bank.
