Overview

A wafer prober is a precision automated test instrument used in semiconductor manufacturing to electrically characterize individual die on a wafer before singulation and packaging. The system positions a reusable probe card into contact with die bond pads while the automatic test equipment (ATE) applies stimuli and measures responses, collecting parametric and functional data on thousands of devices simultaneously. This early test stage, known as wafer sort, screens defective die, sorts parts by speed/power bin, and provides yield feedback for process optimization.

Wafer probers are essential in high-volume semiconductor fabs, where wafer costs range from $5,000–$50,000 depending on process node and complexity. Sorting good die from bad upstream of packaging saves the cost of packaging and test for screened parts. The system must achieve micron-level alignment repeatability despite thermal drift and wafer flatness variation, handle fragile die and thin wafers without damage, and maintain electrical contact quality across thousands of probes and billions of test cycles.

How it Wafers Prober Works

The wafer prober workflow begins with cassette loading. A robot arm removes the wafer from a SEMI-standard front-opening unified pod (FOUP) and positions it on an automated shuttle, which transports the wafer to a vacuum chuck mounted on an XY theta stage. The vacuum system holds the wafer flat against the chuck surface, while vision cameras verify wafer centering and die alignment within microns.

Once the wafer is secured, the system steps through die locations on a predefined map. At each die, the Stage Assembly positions the chuck so that the die bond pads align precisely with the Probe Card contacts. The probe card is a specially designed printed circuit featuring tungsten carbide contact needles in a grid matching the die pad layout. Spring-loaded probes self-center and make reliable contact; the needle material resists wear and oxidation even after hundreds of thousands of insertions.

During probing, the Interface Card multiplexes signals from the ATE to the probe card, routing test stimuli to device inputs and collecting output responses. The Tester Interface carries these signals over shielded cables to the ATE, which runs device-specific test patterns at frequencies up to 100 MHz or higher. Parametric measurements—threshold voltages, leakage currents, delays—flow back to the prober controller for binning and yield analysis.

For temperature-dependent characterization, the Environmental Control subsystem heats the chuck to user-defined set points (typically 25 °C, 85 °C, and 125 °C) and holds temperature stability to within ±1 °C. A Thermocouple Probe embedded in the chuck feeds real-time temperature to the controller for closed-loop correction, ensuring parametric measurements remain valid across temperature corners.

After probing, the shuttle retracts the wafer and transports it back to the loader arm, which replaces it in the FOUP. The Control Cabinet orchestrates the entire sequence: motion drivers step the XY axes and theta spindle, vacuum pumps maintain hold pressure, and the main controller sequences test patterns, logs data, and manages wafer inventory. Modern probers integrate with fab automation systems via MES (manufacturing execution system) interfaces, automatically pulling wafer IDs and die maps and uploading sort results in real time.

Probe Card Design and Maintenance

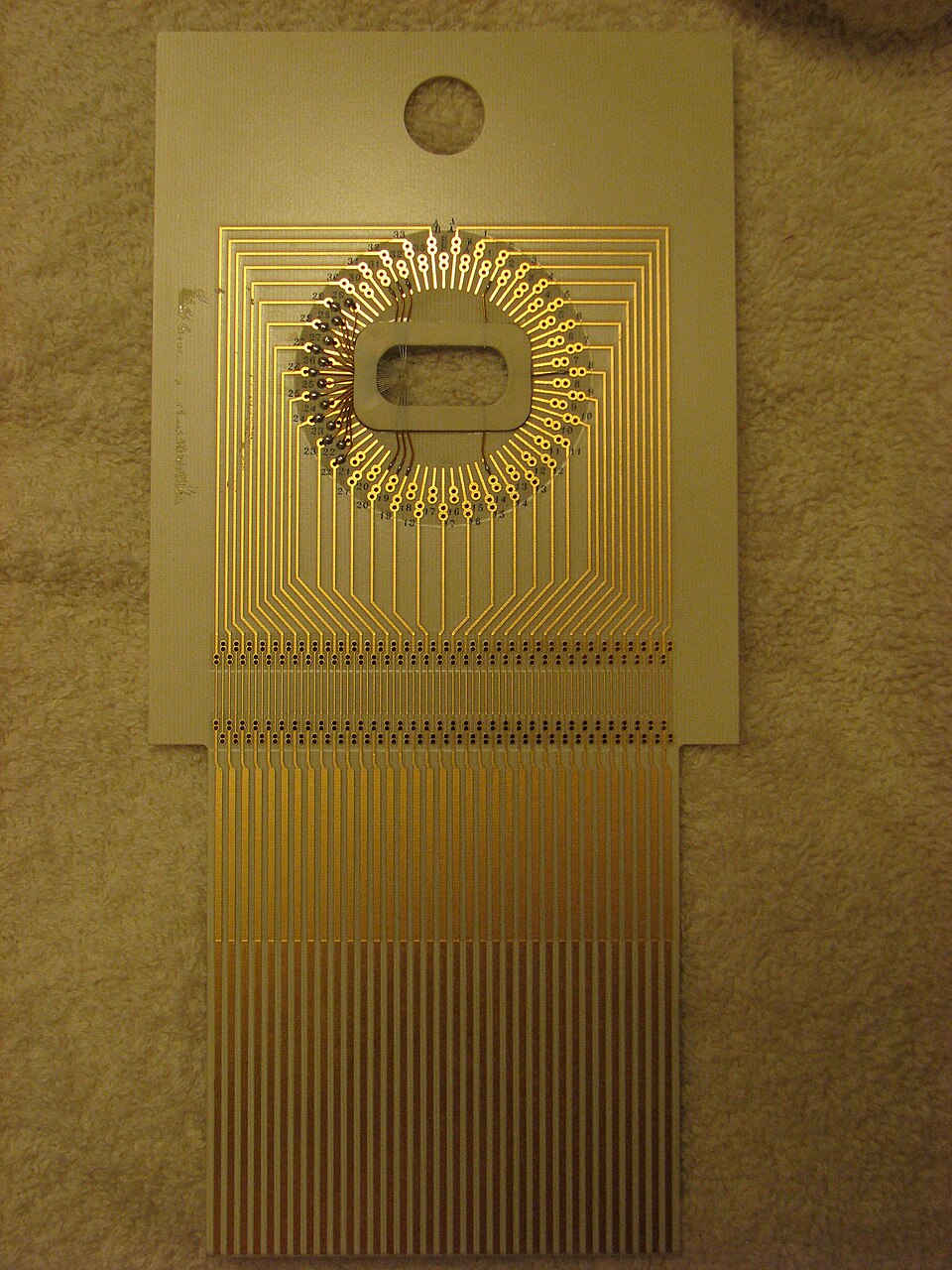

The Probe Card is the most wear-sensitive component, requiring periodic replacement or resharpening as contact tips dull. A worn probe creates high contact resistance, raising measurement noise and false-fail rates. Probe card cost ranges from $50,000 to $500,000+ depending on probe count, pitch, and custom features. Fabs typically maintain spare probe cards to minimize downtime during resharpening cycles.

Probe needles are typically tungsten carbide, chosen for hardness and thermal stability. Pitches range from 25 μm in advanced designs down to 10 μm for extreme-density layouts, requiring nanometer-scale alignment during manufacturing. The Probe Card PCB underneath the probes is often ceramic or specialized FR-4 with micro-vias routing signals from top-side contacts down to test electronics with controlled impedance.

Thermal and Environmental Control

Wafer test is highly temperature-sensitive. Threshold voltages shift with temperature at slopes of −1 to −5 mV/°C; leakage currents double every 10–15 °C rise. The prober's heating capability allows manufacturers to test at three or more temperature corners (−40 °C, +25 °C, +85 °C, +125 °C) on the same tool without moving the wafer, compressing test time.

The Vacuum Pump maintains 10–15 inHg vacuum under the wafer, holding it firmly against the chuck while avoiding thermal damage. Vacuum also isolates the die from ambient humidity, critical for parts with exposed metal layers. High-altitude fabs or those near the ocean must ensure desiccation to prevent corrosion during the wafer sort phase.

Data and Integration

Modern probers stream parametric data directly to the fab's data warehouse. Each wafer generates a map file (die-level test results), which is cross-referenced with wafer processing history to identify process excursions (e.g., etch uniformity, implant dose variance). Machine learning algorithms analyze wafer sort maps to predict yield and guide process adjustments; a single wafer sort run can improve overall fab yield by 2–5% through early detection of systematic defects.

Industry Standards and Variants

Probers are built to handle SEMI standard wafer cassettes (300 mm FOUP, 200 mm boxes) and communicate with ATE systems via relay matrices or digital interfaces. The SEMI E1135 standard defines cassette and wafer geometry; prober and ATE vendors comply to enable equipment interoperability. High-end probers add optional modules: multi-site capability (testing multiple wafers in parallel), thermal chambers for stability, shielded cages for low-noise parametric measurement, and cryogenic options for advanced nodes where −40 °C is insufficient.

Prober throughput ranges from 100 to 300+ wafers per hour depending on wafer size, die count, and test time per die. A 300 mm wafer with 500 die tested at 200 ms per die requires 100 seconds of test time alone; with handling, alignment, and overhead, total cycle time is 15–20 minutes. Fab throughput planning must account for this bottleneck when balancing probe card capacity and test cell count.
