Overview

Whole house fans are high-volume exhaust systems designed to cool entire residences by drawing interior air out through attic vents and rooftop dampers. Unlike air conditioning, which recirculates and conditions the same air repeatedly at significant energy cost, whole house fans provide passive cooling when outdoor temperatures drop below indoor setpoint. A 15,000 CFM fan can exhaust an entire house volume in 10–15 minutes, lowering interior temperature 5–10 °F with minimal electrical draw.

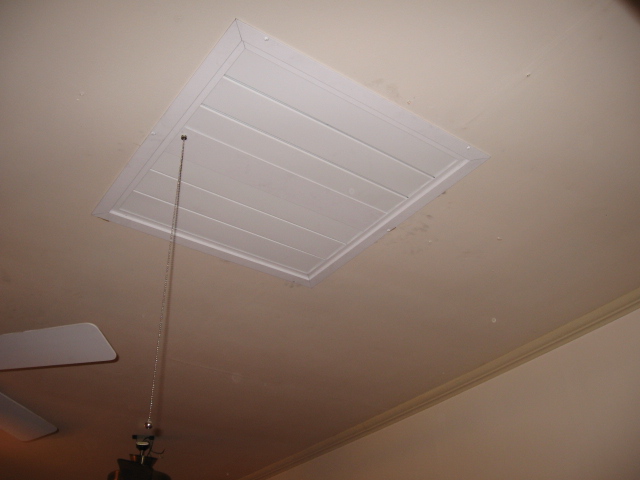

The system consists of a ceiling-mounted Motor Assembly drawing air through interior louvres, routing exhaust up through Ductwork to the attic, and venting outside via a Vent Cap. A Damper Unit prevents reverse airflow when the fan is off, maintaining attic thermal integrity. A Speed Control may be thermostat-driven (activating automatically when interior temperature exceeds outdoor) or manual.

Motor and impeller selection

The Motor is typically a 120 V or 240 V AC induction motor rated 0.5–2 HP. Larger homes (>3,000 sq ft) require 1.5–2 HP motors delivering 12,000–15,000 CFM. Smaller homes (1,500–2,000 sq ft) use 0.75–1 HP motors at 6,000–8,000 CFM.

The Impeller is a centrifugal wheel, typically 8"–16" diameter cast aluminum or stamped steel. Centrifugal designs are preferred over axial because they:

• Develop higher static pressure (0.5–1.5 inches water column) needed to overcome duct friction and roof damper resistance.
• Produce broader frequency noise signature (less tonal annoyance than pure axial fans).
• Tolerate dust and filter loading better than axial designs.

Impeller balance is critical: any imbalance >5 grams at 3600 RPM creates 50+ G vibration, transmitting to ceiling joists as audible rumble. Premium fans use dynamically balanced wheels.

Damper design and insulation

The Damper Unit serves two critical roles:

1. Preventing backflow when fan is off: Without a damper, warm interior air naturally convects up through the open ductwork, heating the attic and increasing cooling load. A gravity-operated damper uses hinged blades weighted to close when static pressure drops below 0.1 inches water column. Motorized dampers use a Damper Motor linked to the main motor; when the fan stops, a 24 V solenoid de-energizes and spring-return dampers close within 2 seconds.

2. Maintaining attic insulation R-value: Damper blades are insulated with 1"–2" polyurethane or fiberglass foam (R-5 to R-8), preventing thermal conduction from attic to living space when closed. An uninsulated damper acts as a thermal bridge, losing 5–10% of heating/cooling efficiency.

Most modern systems use motorized dampers paired with the motor start circuit; when the Motor energizes, a relay simultaneously energizes the damper motor, opening doors in parallel.

Ductwork and attic routing

The Ductwork must be insulated to prevent condensation in the attic. A temperature differential of 20 °F between warm exhaust air and cold attic can cause dew point to be reached at duct walls, leading to mold growth. Insulation standards recommend R-6 minimum (typically 2"–3" fiberglass or mineral wool wrap around the Flex Duct).

Duct sizing is critical: airflow velocity should not exceed 1,200 FPM (feet per minute), or static pressure loss becomes excessive. A 15,000 CFM fan requires minimum 10" diameter ductwork (area = 78 sq in; 15,000 CFM ÷ 78 sq in ÷ 144 = 1,335 FPM, slightly high but acceptable). Smaller 8" ducts create backpressure, reducing effective CFM by 20–30%.

Duct support must be every 4 feet; unsupported ductwork sags and may pinch closed from its own weight, choking airflow.

Roof vent and back-draft prevention

The Vent Cap exhausts air to the exterior. Modern designs include multiple louvers directing exhaust upward and outward, preventing rain from entering during storms. A Vent Damper (typically a lightweight hinged flapper) prevents backflow during strong winds.

The Roof Flashing must be sealed to prevent water leakage at the penetration. Most leaks occur at improper flashing installation rather than vent design; flashing must slide UNDER shingles above and OVER shingles below, sealed with polyurethane caulk and roofing cement.

Attic ventilation must be adequate: building codes typically require 1 CFM of attic exhaust per square foot of attic floor area. A 2,000 sq ft home with a 1,000 sq ft attic needs 1,000 CFM attic ventilation minimum. If the whole house fan exhausts 15,000 CFM, the attic must have secondary vents (soffit, gable, or ridge vents totaling >1,000 sq in of effective area) to supply fresh intake air and prevent attic from becoming a vacuum.

Speed control and thermostat integration

The Speed Control modulates motor speed via a triac (AC) or PWM (DC) controller. Multi-speed switches offer discrete speeds (off/low/med/high); variable controllers allow continuous adjustment from 0–100%.

Thermostat-based control (optional) uses a Thermostat to sense indoor and/or outdoor temperature:

• If outdoor temp < indoor setpoint (e.g., 65 °F outside, 72 °F inside), the thermostat energizes the fan at full speed.
• Some designs include a humidity sensor; the fan activates only if outdoor humidity is also lower than indoor humidity, preventing bringing in damp outside air.

Smart integration allows scheduling (e.g., "run fan from 11 PM to 6 AM when outdoor temps are coolest") via home automation systems. Modern retrofit fans with Wi-Fi modules integrate with smart home platforms.

Installation and commissioning

Whole house fan installation involves:

1. Structural framing: Ceiling opening requires reinforcement of joists and headers to distribute 150+ lbf motor weight.
2. Ductwork routing: Must clear attic insulation, avoid asbestos-wrapped pipes, and avoid tight bends that crimp flow.
3. Electrical: Typically hardwired to a dedicated 240 V or 120 V circuit with 20–30 A capacity depending on motor size. Disconnect switch required within 6 feet of installation.
4. Damper synchronization: Motorized dampers must be commissioned to open simultaneously with main motor start; a 2–3 second delay allows pressure build-up before damper opens, reducing noise and vibration.
5. Commissation airflow test: A smoke pen or anemometer should verify that air is indeed flowing through attic vents when the fan runs. Low airflow (despite high CFM rating) indicates ductwork obstruction or insufficient attic ventilation area.

Maintenance and lifespan

The Motor Bearing and Impeller are wear items:

• Motor bearings: Rated for 40,000–50,000 hours L10 life (50% chance of failure). For a fan running 500 hours/year, this is 80–100 years; in reality, bearings typically fail after 15–20 years due to humidity and vibration.
• Impeller balance: Dust accumulation can shift balance over years; an annual cleaning with compressed air maintains smooth operation.
• Filter screen: The Filter Screen at interior louvres should be vacuumed monthly to prevent blockage.

The Damper Unit hinges and seals should be inspected annually. Spring-return dampers may weaken over time; if the damper drifts open when the motor stops, it should be replaced.

Energy savings and climate suitability

Whole house fans are most effective in climates with cool nights and warm days: desert Southwest, mountain regions, and coastal areas with large diurnal temperature swings. In humid climates (Southeast US), outdoor air at 95 °F and 80% RH is less beneficial than in arid climates. In always-hot climates (Florida, Southern California), whole house fans provide modest savings (5–15% cooling load reduction) but cannot be the primary cooling strategy.

A whole house fan consuming 1 kW for 8 hours per night (8 kWh) costs ~$1 per day to run, versus an air conditioner consuming 3–5 kW for 12 hours (36–60 kWh, $5–8 per day) over the same period. In marginal climates, payback can occur in 3–5 years.
