Police Body Camera

Overview

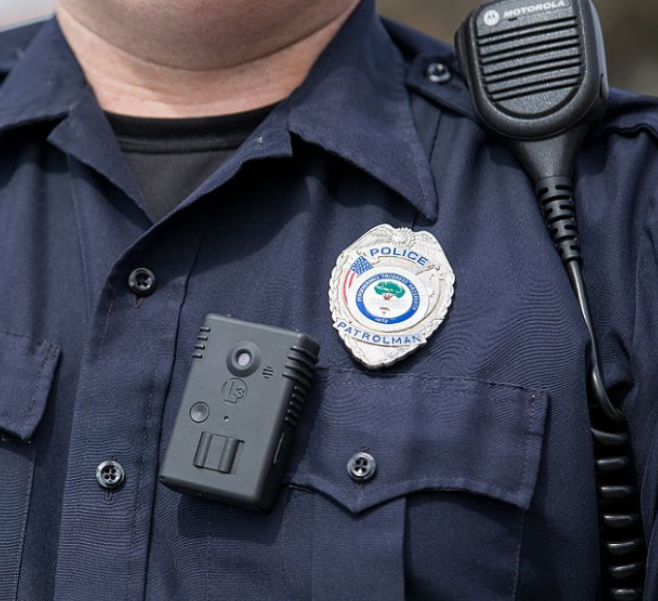

A law enforcement body-worn camera records first-person video and audio evidence from an officer's chest or shoulder position. The device continuously pre-records to a volatile buffer, so when an event-marker button is pressed, the preceding 30–60 seconds are retroactively saved to permanent storage along with all subsequent footage. Built-in GPS logs officer location every few seconds, time-stamping all frames to a GNSS-disciplined clock. The entire stream is encrypted on-device and evidence integrity is protected by tamper-detection hardware that flags any sign of post-incident firmware modification.

Officers dock the cameras at a base station where all footage and metadata automatically offload to a network server or evidence management system. The dock simultaneously charges four cameras and verifies the cryptographic chain of custody for each clip before archival.

How it works

The Imaging Module module contains a wide-angle lens (140–160°) and a CMOS image sensor running continuously at 30 or 60 fps. The sensor feeds the Processor Board, an SoC with built-in H.264/H.265 video codec. The codec compresses each frame in real-time, reducing the 400+ Mbps sensor output to 8–30 Mbps depending on resolution and bitrate selection.

Simultaneously, the Processor Board reads the Storage Module module's pre-record buffer, a block of fast DRAM holding the last 30–60 seconds of compressed video. When an officer presses the Event Marker Button, firmware copies the circular buffer contents and all subsequent frames to the Storage Module module's flash memory and Dock Connector microSD card slot.

The GPS Module module requests a position fix every second from GNSS Chipset, a multi-constellation GNSS chip bonded to the GPS Antenna. Each video frame's timestamp is tied to GNSS Chipset's 1 PPS pulse, so frame-by-frame GPS position is later recoverable. The Encryption Coprocessor, a dedicated AES accelerator, encrypts the entire stream in-place before it reaches permanent storage.

When docked, the Dock Interface presents a USB or Gigabit Ethernet uplink. The dock's onboard MCU verifies the RSA signature of each Processor Board's firmware image and checks for any evidence of tamper. Only cameras with valid signatures offload. The Dock Charger supplies 5 V / 2 A to each slot; the Power Module module's BMS Board rate-limits inrush current and balances the internal LiPo Cell charge.

The Mount Clip Assembly assembly, chest clip, shoulder harness mount, and Picatinny rail adapter, angles the lens downward to capture roughly the officer's line of sight while keeping the wide-angle field of view unobstructed.

Standards & Certification

Police body cameras are often procured to meet NIST FIPS 140-2 (cryptographic module) and state evidence-tampering standards. GPS accuracy certification may reference IEC 61108 (maritime GNSS) or civilian GPS accuracy (±5 m worst-case). Video codec compliance to H.264 (ITU-T H.264 / ISO/IEC 14496-10) ensures interoperability with evidence management software.

Maintenance

Pre-record buffer hardware provides no user-serviceable parts. MicroSD cards should be replaced annually or per department policy; worn contacts on the dock connector can be cleaned with isopropyl alcohol on a cotton swab. Lens window scratches degrade image quality and should trigger optical inspection. Battery replacement is done via dock or field charge cycles; age-related capacity loss is normal after 1–2 years of daily use.
