Digital Billboard Product

Overview

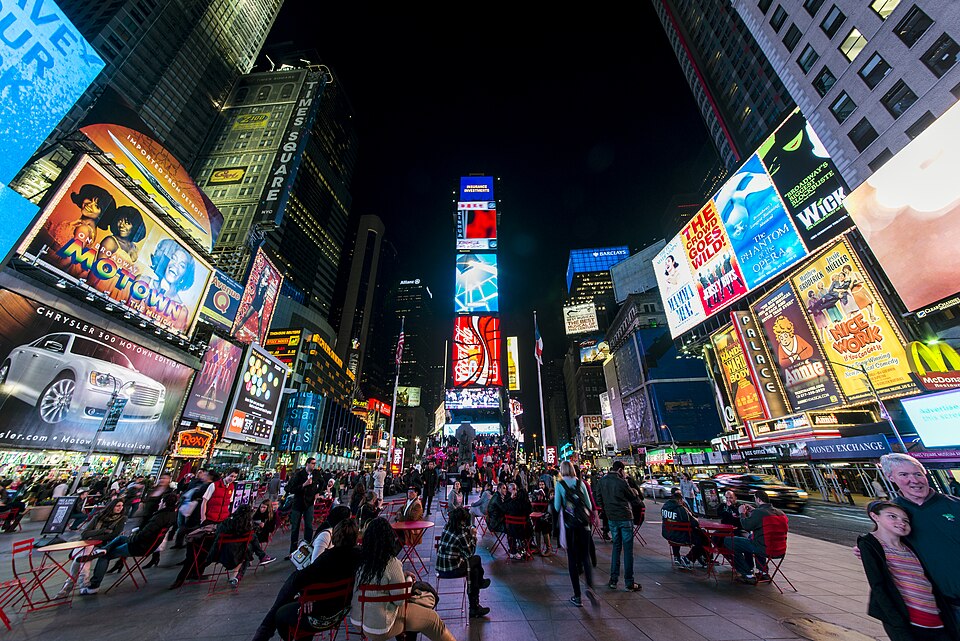

A large-format outdoor LED billboard is a digital signage system combining modular LED pixel panels with a content management server, power distribution, and active cooling. Billboards are deployed on buildings, highways, sports venues, and transit stations to display advertisements, real-time information, and event announcements. The display is driven by playlist software running on an embedded Linux player, allowing remote scheduling of content across multiple screens via the internet.

The architecture separates concerns: the LED array handles light output and refresh, the content player manages media decoding and timing, the power system supplies energy, and thermal management keeps component temperatures within operating limits. Modular design allows scaling to nearly any size by adding LED panels and power supplies.

How it works

The content player (an ARM SoC) decodes video or images from its local SSD storage or network stream. It outputs pixel data as shift-register serial streams to the LED driver ICs at 1920 Hz, updating each of the ~6,500 pixels individually. Driver ICs multiplex rows of LEDs in real time, scanning at 240 Hz, making the display appear continuously bright and flicker-free to the human eye. Each scan takes 4 milliseconds.

The 48V power system accepts three-phase AC (208V or 480V) from building mains or a generator. A main rectifier module converts this to DC; a capacitor bank smooths transient load spikes. The distribution rail splits power to 12 branch protection modules, each protecting a column of LED panels. Individual panel connectors include signal and power on the same connector body for rapid modular swaps.

The cooling system runs two 24V axial fans continuously, drawing hot air from the sealed cabinet and pushing it through a heatsink bonded to the LED array substrate. A thermostat reads air temperature and modulates fan speed via PWM—at 40°C it runs at 60% duty, at 50°C at 100%. Condensation is drained through a filtered port in the cabinet bottom.

An ambient light sensor (photodiode) mounted atop the display reads incoming sunlight. The player uses this signal to scale LED brightness (PWM duty) down in daylight and up at night, reducing glare and cutting peak power draw from 45 kW to 20 kW in daylight.

Content scheduling is handled by software running on the player. Playlists are stored on the SSD and can be modified remotely via Ethernet or 4G modem. The player supports rotation of static images (PNG/WebP) for 5–30 seconds each and video clips (H.264/H.265) from local storage or RTSP streams. A web dashboard (accessed from any phone or laptop over LTE) allows real-time switching between playlists without powering down the display.

Outdoor reliability

Billboards are exposed to rain, snow, hail, dust, and 120+ mph wind gusts. The cabinet is sealed to IP65 (water jets cannot penetrate) and vented through a one-way drain with filter mesh to prevent insects and leaves from clogging cooling intakes. The steel frame is welded and bolted to the building structure with diagonal wind bracing; deflection under maximum load is less than 1/500 of the span (less than 1 cm for a 5-meter width).

LED panels degrade slightly over 100,000 hours; color shift is less than Delta-E 3 after 50,000 hours. Maintenance involves replacing individual panels without shutting down the whole display—connectors are quick-release, each panel swap taking 10 minutes.

Size and scaling

A 4.8m × 2.7m display (16:9) with P5 pitch contains 960 × 540 = 518,400 pixels. This requires 32 LED panels (32 × 16 pixels per panel) and 6 content players load-balanced across the display area. Larger installations (up to 20m × 10m) use multiple independent displays driven by a master scheduler over Ethernet.

The power budget is the primary scaling limit: a P5 display at 100% white consumes 45 kW; outdoor installations typically have access to 60–100 A service (up to 120 kW at 480V three-phase). This allows 2–3 stacked billboards per service feed.
