Digital Luggage Scale Product

Overview

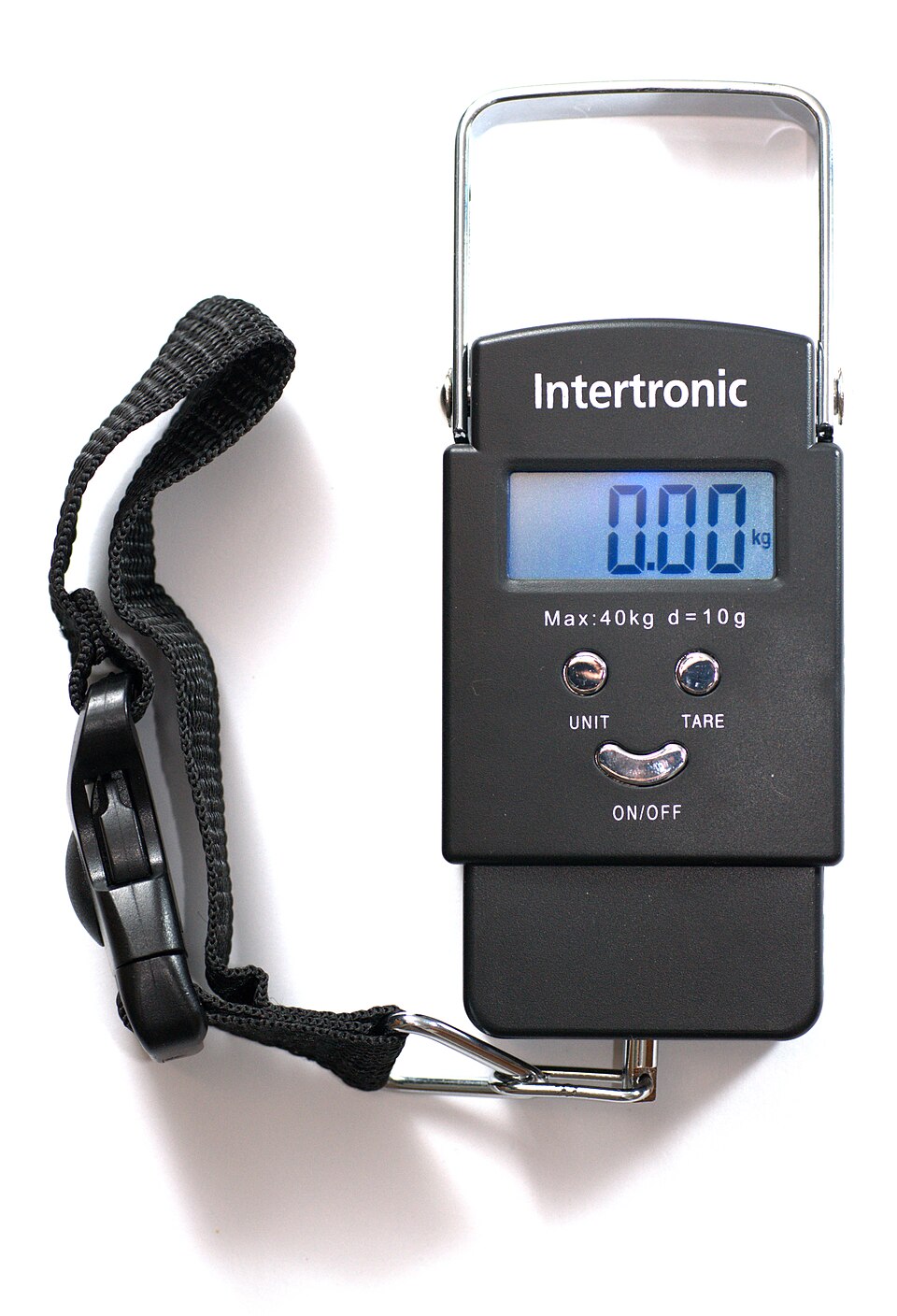

A digital luggage scale measures baggage weight at the airport or on the road, preventing overweight charges and uneven packing. Unlike a bulky bathroom scale, it is designed as a handheld pistol-grip instrument with a [[digital-luggage-scale-strap-hook|strap hook]] at the top. The user loops the hook through the luggage handle, lifts, and the [[digital-luggage-scale-display-board|digital display]] shows weight in kilograms or pounds.

At the heart lies a stainless-steel [[digital-luggage-scale-load-cell|cantilever load cell]] bonded to the [[digital-luggage-scale-housing|plastic body]]. As the user lifts the suitcase, the luggage's weight compresses or bends the cantilever microscopically. Four thin [[digital-luggage-scale-strain-gauge-1|strain gauge resistors]] bonded to the beam detect this deflection and change resistance proportionally. These four resistors form a [[pressure-sensor|Wheatstone bridge]], producing a millivolt-level differential signal proportional to weight.

This tiny signal is amplified by the [[digital-luggage-scale-adc-preamp|instrumentation amplifier]] on the [[digital-luggage-scale-control-board|main board]], then digitized by a [[digital-luggage-scale-adc-mcu|24-bit ADC]]. The [[digital-luggage-scale-adc-mcu|MCU firmware]] applies calibration corrections (zero offset and span gain) to convert the raw ADC count into kilograms. It then outputs the result to the [[digital-luggage-scale-display-board|LED or LCD display]].

How it works

On power-up (via the [[digital-luggage-scale-power-switch|on/off switch]]), the MCU initializes the 24-bit ADC, sets the sampling rate to 80 Hz, and continuously acquires load cell voltage. It internally averages 16 or 32 samples over ~200–400 ms to reduce noise and jitter from hand tremor. The firmware stores two key calibration parameters in non-volatile memory:

1. Zero offset: The ADC reading when no load is applied. This is factory-set but can be user-recalibrated by holding down a button with the scale unloaded. The [[digital-luggage-scale-zero-cal-pot|zero calibration potentiometer]] allows analog trim for factory service.

2. Span gain: The ADC reading per kilogram of load. A known reference mass (e.g., a 10 kg weight) is hung from the hook, and the user presses a calibration button. The firmware records the delta ADC count, solves for gain, and stores it. The [[digital-luggage-scale-span-cal-pot|span calibration potentiometer]] provides analog fine-tuning for manufacturing tolerance compensation.

During normal operation, the MCU applies these calibration factors:

Weight (kg) = (ADC reading − zero offset) / (span gain)

The result is displayed with a resolution of 0.1 kg. A push-button toggles the unit between kg and lbs; the [[digital-luggage-scale-unit-led|unit indicator LED]] shows which system is active.

The [[digital-luggage-scale-strain-gauge-wire|shielded 4-conductor cable]] carries the load cell bridge excitation voltage (typically 5 V DC) and the differential signal back to the preamp on the control board. The shielding prevents 50/60 Hz mains-frequency coupled noise and high-frequency switching noise from entering the millivolt-level signal path. The [[digital-luggage-scale-connector-4pin|connector]] allows the cable to disconnect for service; a [[digital-luggage-scale-strain-relief|strain relief]] prevents sharp bends that could crack the internal wires.

Two AAA batteries in the [[digital-luggage-scale-battery-pack|battery compartment]] supply ~3 V to the logic rail (via a simple diode OR-ing if using 6 V nominal, or via a boost converter if using lower voltage). The [[digital-luggage-scale-power-switch|power switch]] is a mechanical slide toggle; pressing any weight-measurement button automatically powers up if the switch is left on. An auto-shutoff timer turns off the display after 10–15 seconds of inactivity to preserve battery life.

The [[digital-luggage-scale-housing|rubberized grip]] is ergonomically contoured to fit a hand naturally, and the [[digital-luggage-scale-strap-hook|hook attachment]] is reinforced to withstand repeated 60 kg pulls without deforming. The display cover is typically translucent plastic, allowing LCD or LED backlighting to remain visible in low-light airport terminals.
