Overview

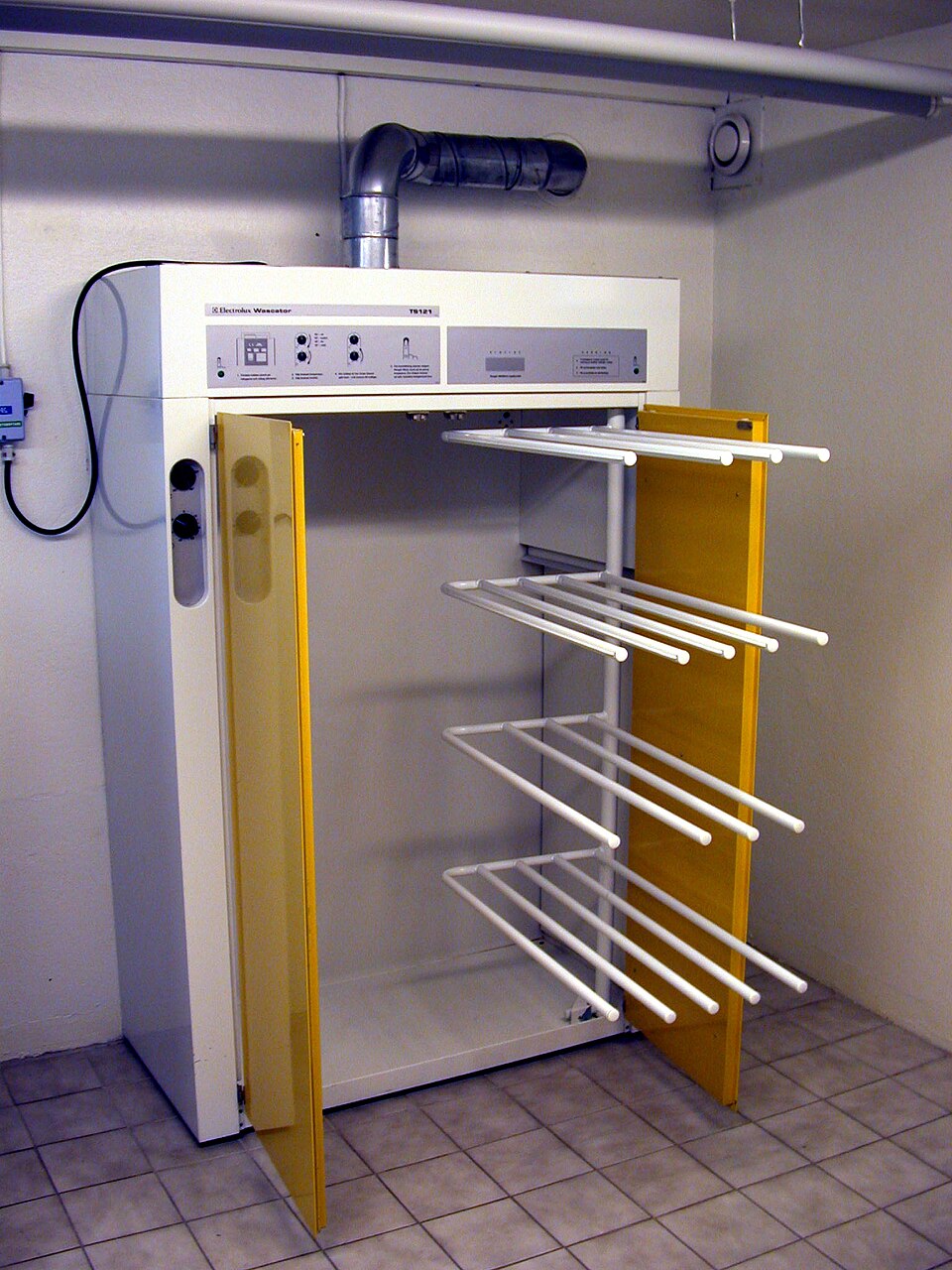

A drying cabinet is a climate-controlled enclosure that uses heated air circulation to remove moisture from clothing, shoes, and delicate textiles without mechanical wringing or high-temperature stress. Air temperature and humidity are monitored and regulated to protect fabric while ensuring thorough drying. The cabinet is commonly installed in laundromats, gyms, hotels, and homes in humid climates.

The Heating System raises intake air to 60–80°C, which is then distributed by the Fan Assembly through internal Air Ductwork. Garments hang from Hanging Rail System suspended in the warm airstream. The Sensor & Humidity Module measures humidity and temperature, feeding back to the Control Panel to modulate heat and fan speed or trigger auto-shutoff when the target dryness is reached.

How it works

The Heating Element is powered through a high-current Relay controlled by the Thermostat. Intake air passes over the heating element and is drawn by the Blower Motor into the Internal Distribution Manifold, which distributes it horizontally and vertically across the cabinet volume. Exhaust air exits through the Exhaust Duct, which incorporates a Humidity Sensor that detects when the interior relative humidity has dropped below the target level.

Garments suspended on Hanging Hooks intercept the warm airstream; water vapor is picked up by the moving air and exhausted. As drying progresses, the Humidity Sensor reading falls. When humidity reaches the setpoint (typically 40–50% relative humidity), a timer or electronic logic circuit cuts power to the Heating Element and fan, or reduces the fan speed to a "cool-down" mode.

The Control Panel provides manual override: the Temperature Dial sets the target temperature, and the Timer Control sets a maximum drying time (0–120 min). If the user selects auto mode, the Humidity Sensor takes precedence and stops the cycle early if dryness is achieved. A Thermal Fuse rated at 105–120°C provides fail-safe protection if the thermostat malfunctions and the cabinet overheats.

The Cabinet Shell is insulated with foam or mineral wool to maintain temperature stability and reduce ambient heat loss. The Frame & Leveling provides structural support and Leveling Foot adjustment for even distribution of load and vibration isolation.

Design considerations

Moisture routing: The Exhaust Duct must not be blocked; obstruction will cause humidity to rise and drying to slow or fail.

Material compatibility: Low temperatures (< 65°C) protect delicate fabrics and synthetic materials. High temperatures (> 75°C) are reserved for towels and robust textiles.

Humidity feedback loop: The Humidity Sensor is the most reliable stopping signal; a fixed timer alone will either over-dry (energy waste) or under-dry (customer dissatisfaction).

Thermal safety: The Thermal Fuse is a final safeguard against runaway heating. Its rating must be below the maximum safe cabinet temperature but above the normal operating range.
