Overview

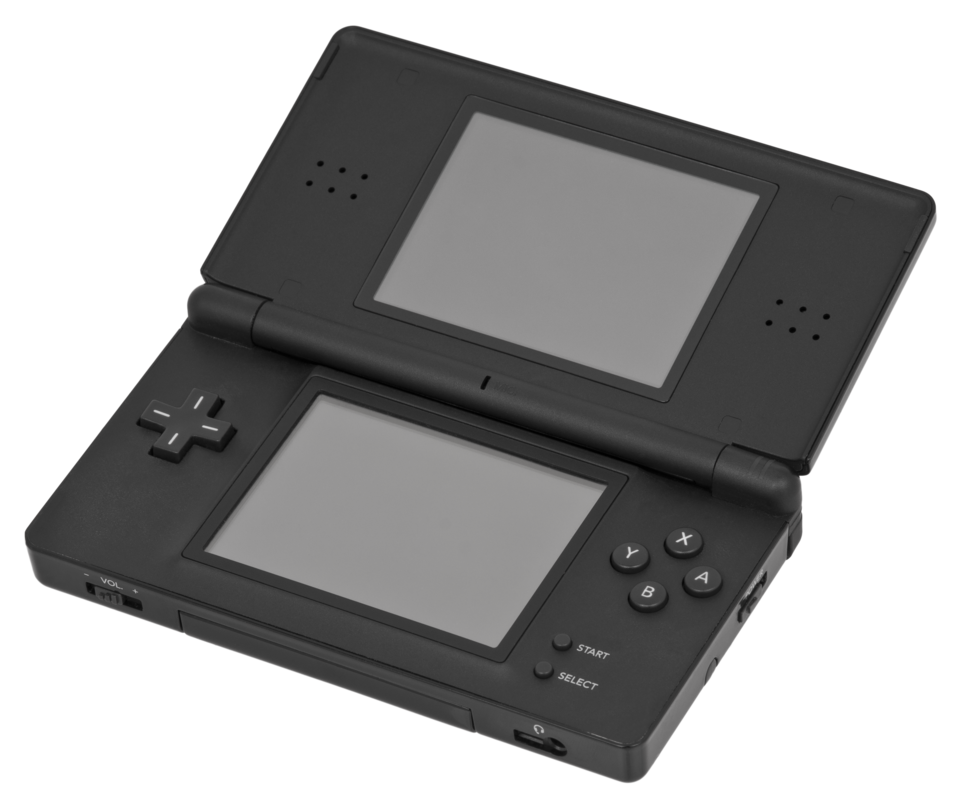

A handheld game console is a complete computer built into a controller. Behind the Display Module sits a Mainboard carrying a CPU+GPU Compute SoC Module, memory and storage; everything else exists to power that chip, keep it cool, and let your thumbs drive it. The two halves of the Enclosure form the grip, with the screen in the middle and a Control Module of sticks and buttons on either side.

Unlike a phone, the design budget goes to sustained performance. A LiPo Cell-based Battery Pack feeds a hungry processor, an active Cooling Assembly assembly with a Blower Motor and heat pipe holds clock speeds under load, and a Wi-Fi/Bluetooth Module handles online play and pairing extra controllers. A small Port Board exposes USB-C, microSD and a headphone jack, and a pair of Speaker units give it sound without earbuds.

How it works

The Compute SoC Module runs the game and renders frames into the LPDDR5 Memory memory. Each frame is scanned out over the Display Flex Cable ribbon to the LCD Panel in the Display Module, where the LED Backlight Unit lights the picture and a laminated Touch Digitizer handles menu taps. Games and the OS load from the Flash Storage and any card in the microSD Card Slot.

Input runs through the Control Module. Each Analog Thumbstick reports two axes the game reads as movement or aim; the face and D-pad caps press a Conductive Dome Sheet whose carbon contacts register button presses; the Shoulder Trigger pair adds analog squeeze. A Rumble Motor on each side delivers haptics tied to events on screen.

The power and thermal path is what makes it portable. A Power Management IC on the mainboard turns the battery voltage into the SoC core, memory and I/O rails and manages charging from USB-C. Heat from the die travels through a Thermal Pad into the Heat Pipe, spreads across the Finned Heatsink, and is pushed out the Vent Grille by the blower. When the chip warms up, firmware trades a little clock speed for runtime so the handheld stays cool enough to hold.
