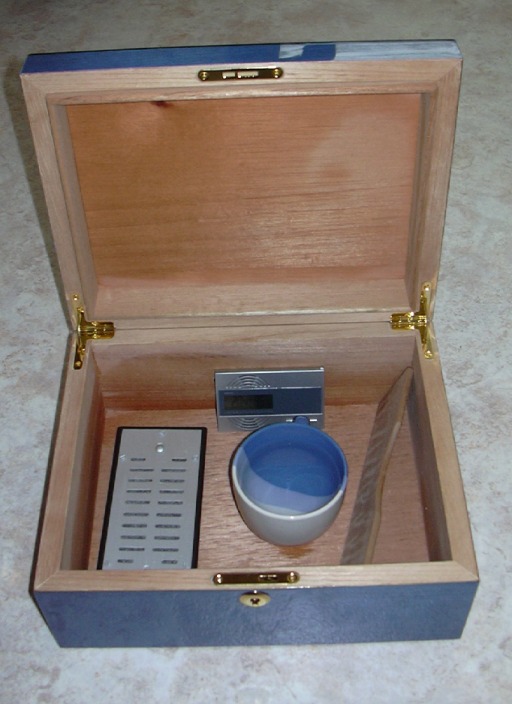

Electronic Humidor Cabinet Product

Overview

Electronic humidor cabinets preserve fine cigars and tobacco by maintaining stable relative humidity and temperature. Unlike passive humidors relying on sponge or gel, electronic cabinets use capacitive humidity sensors and proportional solenoid humidifiers to lock in 65–70% RH within ±3%. The combination of double-wall insulation, sealed glass doors with gasket compression, and low-speed air circulation creates a microclimate resistant to room humidity swings and maintaining constant conditions regardless of ambient weather.

Spanish cedar shelving provides both structural support and aromatic contribution; cedar compounds naturally inhibit mold and insect damage while imparting subtle flavor notes. The sealed enclosure prevents external air infiltration, and the Control System monitors humidity continuously, activating the Humidification Unit only when RH dips below setpoint, minimizing water waste and energy consumption.

How it works

The Hygrometer Probe inside the cabinet reports relative humidity to the Control System microcontroller every 10–60 seconds. If RH is below setpoint (e.g., 68%), the controller energizes the Feed Valve, which opens for 1–5 seconds to release distilled water from the Water Reservoir into the Humidifier Transducer.

Two humidifier designs are common: piezoelectric transducers vibrate at 1.7 MHz, atomizing water into a fine mist that suspends in air; resistive heating elements (500 W) boil water, creating steam. Piezoelectric types consume less power and integrate easily into compact cabinets. Resistive heaters deliver faster humidity rise but risk condensation on cold surfaces and higher energy draw.

The humidified air is drawn across the Circulation Duct and distributed through the Intake Baffle across the Shelf System. The Blower Motor operates continuously at low speed (typically 5–10 W), ensuring uniform RH across all shelf levels. Unlike passive designs where top shelves drift 10–15% higher than bottom shelves, active circulation maintains ±1% variation.

Water vapor condenses on cooler surfaces (typically the Inner Shell). Rather than allow pooling, the Drain System collects condensate in a Drain Pan lined with an Evaporation Wick. The wick promotes passive evaporation back into the cabinet air, recycling moisture and minimizing water loss. In humid climates, the controller can be programmed to periodically activate the Blower Motor at high speed to mechanically exhaust excess moisture through a small drain outlet.

The Cabinet Enclosure is the passive component: a double-wall structure with Foam Core insulation (typically polyurethane, R-5 to R-7) sandwiched between hardwood veneer Outer Shell and sealed Inner Shell. The Door Assembly is sealed with continuous Gasket Seal, typically silicone. When closed, the Magnetic Latch maintains 2–5 lbf compression, creating an air-tight fit. The Tempered Glass Pane allows visual inspection without opening, and its R-value is negligible (single-pane), so insulation is concentrated in walls and door frame.

Control logic and setpoint management

The Control System implements a proportional-integral (PI) algorithm:

• Dead band: If RH is within 67–69% and setpoint is 68%, the humidifier is off; no oscillation occurs.
• Proportional term: If RH falls to 65%, the solenoid pulse width increases (e.g., from 1 sec to 3 sec open).
• Integral term: If humidity drifts below setpoint for >10 min, the controller increases baseline pulse width to compensate for leak rate.

This avoids the overshoot-undershoot cycles of on-off control, reducing relative humidity variation from ±5% (on-off) to ±1–2% (PI).

Some controllers include a "learning" mode: during the first 48 hours, the system profiles cabinet leakage rate and calibrates the baseline humidifier pulse length accordingly. This compensates for door seal compliance variation and gasket aging over years of use.

Spanish cedar and moisture dynamics

Spanish cedar is hygroscopic: its fiber structure sorbs moisture from air. Kiln-dried cedar (moisture content <8%) holds approximately 0.3 kg of water per cubic meter of wood at 70% RH equilibrium. This natural buffering reduces the humidifier cycling frequency and stabilizes RH during door-open cycles. Untreated or stained cedar releases volatile organic compounds (VOCs) that can alter cigar flavor, so premium cabinets use either air-dried or kiln-dried untreated cedar.

The Cedar Shelf must not be sealed with varnish or lacquer, as that blocks water absorption and creates an unresponsive system. Some builders apply only food-grade mineral oil to preserve the wood aesthetic without waterproofing.

Condensation prevention and mold risk

A common failure mode is condensation on the Tempered Glass Pane during temperature swings. If a cabinet at 68 °F and 70% RH is placed in a 50 °F room, the dew point drops from ~60 °F to ~42 °F. The cold glass (now 50 °F) will condense moisture unless the cabinet is thermally isolated (adding a door shutter or leaving it in a stable-temperature closet).

The Foam Core insulation (R-5 to R-7) provides about 8–12 hours of thermal buffering before internal temperature equilibrates with room temperature. Modern designs add a passive vapor barrier (polyethylene sheet under the inner shell) to prevent vapor from migrating outward, where it would condense in the insulation and weaken structural integrity.

Reservoir management and water quality

The Water Reservoir must use distilled or deionized water; tap water contains minerals (calcium, magnesium) that clog the solenoid valve and humidifier transducer. Hard water deposits reduce flow by up to 30% within 6 months, necessitating valve replacement. Premium systems include a small Feed Valve screen (100 micron) to catch particles.

Reservoir capacity (typically 1–2 L) provides 10–20 days of autonomous operation in a 55 °F ambient with moderate door cycling. Larger cabinets (>100 cigar capacity) or drier climates may require 3–5 L capacity.

Maintenance and recalibration

The Hygrometer Probe should be recalibrated annually against a calibrated reference hygrometer (salt-bottle calibration method: a sealed chamber with saturated salt solution stabilizes at known RH). The Control System typically includes a calibration mode accessible via a small switch or EEPROM memory on the PCB.

The Magnetic Latch should be inspected for cracks or magnet detachment every 2 years. Replacement latches are typically available as drop-in assemblies.

The Blower Motor bearing may require lubrication every 3–5 years; sealed EC motors typically run maintenance-free for >10,000 hours.
