Instant Camera Product

Overview

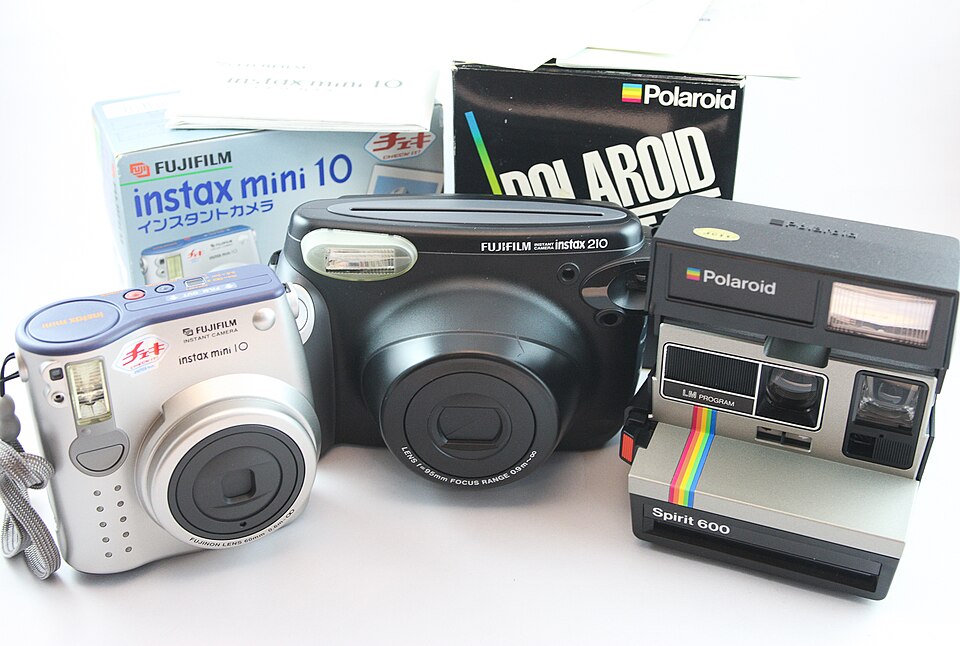

An instant camera produces a finished photographic print within minutes of pressing the shutter, with no external processing. The trick is not in the camera but in integral film: each frame is a sealed sandwich of light-sensitive emulsion layers, image-receiving layer, and a foil pod of viscous alkaline reagent crimped along one edge. The camera's job is to expose that sandwich and then burst and spread the pod evenly — everything else is conventional camera engineering wrapped around those two operations.

The architecture follows directly. The Lens and Shutter Unit forms the image, the Film Pack Chamber holds a 10-frame cartridge at the focal plane, the Developing Roller and Ejection Drive performs the chemical step mechanically, the Electronic Flash Unit compensates for very slow optics, and the Exposure Control Electronics sequences all of it from one button press.

Exposure

The optics are modest by design: a two-element 60 mm lens at f/12.7, zone-focused by the Focus Helicoid. Small apertures buy depth of field that forgives focus error, and ISO 800 film buys back some speed. The Shutter Blade Set are held by the Shutter Solenoid and timed electronically between 1/2 and 1/400 s; the Metering Photodiode meters the scene and the Microcontroller programs the interval. Because f/12.7 at ISO 800 cannot expose an indoor scene at handholdable speeds, the flash fires by default: the Flash Inverter Circuit charges the Flash Capacitor to about 330 V (roughly 5 J), the Trigger Coil strikes the Xenon Flash Tube, and the metering circuit quenches the discharge through a Power MOSFET switch once enough light has returned. Framing happens through a separate reverse-Galilean Optical Viewfinder, whose offset from the taking lens produces the parallax error that crops close-up shots if the marked corrections are ignored.

During exposure the frame must sit flat and in darkness. The Film Pressure Plate and Pack Retention Spring register the topmost frame against the film plane inside the matte-black Inner Exposure Box, and Light Seal Set around the Film Door and slot keep stray light out — a failed seal shows up as orange fogging along one print edge.

Development by roller

Immediately after exposure the Ejection Motor runs one cycle, sequenced by the Ejection Cycle Cam. The Film Pick Arm pushes the exposed frame edge-first into the nip of the Developer Spread Rollers, a pair of ground steel rollers loaded together by a Coil Spring pair. As the frame passes through, the nip bursts the reagent pod and squeegees its contents across the full frame width in a layer about 90 µm thick. Uniformity here decides print quality: a gap set too wide leaves undeveloped streaks, debris on a roller prints as a repeating bar, and this is why manufacturers tell users to clean the rollers between packs.

The spread reagent is a strongly alkaline gel that diffuses into the emulsion, develops the exposed silver, and releases dye developers that migrate to the receiving layer where the visible image forms. An opacifier in the reagent keeps the still-sensitive layers dark while development proceeds in daylight, which is why the print emerges grey-green and the image fades in over 90 seconds to several minutes — and why shaking the print does nothing. The frame exits past the Dark-Slide Exit Flap, the Frame Counter Switch decrements the counter, and the same mechanism ejects the cartridge's dark slide automatically when a fresh pack is loaded.

Power and packaging

One ejection cycle plus a flash recharge is the peak load, so the Power Supply section must deliver around an ampere briefly from two AA cells or a small LiPo Cell; flash recycle takes about 6.5 s. Classic pack films sidestepped the problem by building a battery into every film cartridge, guaranteeing fresh cells with fresh film; modern integral cameras keep the battery in the body. The Front Body Shell and Rear Body Shell close over the inner box, and the Power / Lens-Barrel Switch is typically actuated by extending the lens barrel, so the camera cannot be carried switched on.

The format's constraints are fixed by chemistry: ten frames per pack, one aperture-and-emulsion-defined look, development that slows markedly below 10 °C (prints are best developed in a warm pocket in winter), and a per-frame cost that makes every exposure deliberate.
