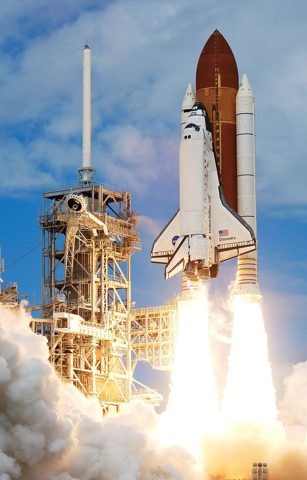

Orbital Launch Vehicle

Overview

An orbital launch vehicle is a machine for throwing away most of itself in the right order. Of a ~550 t liftoff mass, roughly 92% is propellant, and the structure that holds it, two stages, an Interstage and a Payload Fairing, is discarded piece by piece as the vehicle accelerates from rest to about 7.8 km/s. The parts count of such a machine is famously large: the Saturn V was documented at roughly 3 million parts, and this BOM is sized to match. Almost none of those parts are large. The count lives in fastener populations on every major structure, in the ~50,000 small parts inside each engine, in the discrete components of the avionics boxes, and in a harness where every wire, crimp and clamp is an individually tracked item.

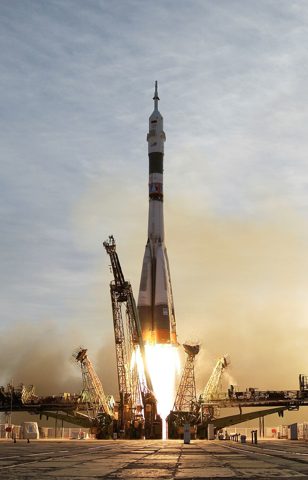

First stage

The First Stage (Booster) burns for about 160 seconds and does the brute-force work of getting the vehicle out of the thick lower atmosphere. Nine Booster Engines, eight around the rim of the Thrust Structure (Octaweb) and one in the centre, deliver roughly 7,600 kN at liftoff against a 5,400 kN weight. The octaweb arrangement is tolerant: the guidance system can shut a failing engine down and stretch the burn on the remaining eight.

Each engine runs the gas-generator cycle. A small fuel-rich combustor, the Gas Generator, produces ~900 K gas that spins the Turbopump turbine at around 36,000 rpm; the same shaft carries the LOX and RP-1 Pump Impellers, each preceded by a cavitation-suppressing Pump Inducer. Pump discharge at ~10 MPa feeds the Injector, where 700 coaxial swirl Injector Elements atomise the propellants into the regeneratively cooled Thrust Chamber & Nozzle. RP-1 flows through milled channels in the chamber liner before injection, carrying away heat from a wall a few millimetres from 3,500 K combustion gas. Counting every brazed joint, B-nut, seal and clip in the Engine Plumbing & Hardware, one engine runs to roughly 50,000 parts, the RS-25 is documented above that figure, so the nine-engine cluster alone accounts for nearly half a million.

The stage structure is its own tankage. The First-Stage LOX Tank and First-Stage RP-1 Tank are friction-stir-welded from machined aluminium-lithium Tank Barrel Panels, closed by spun Tank Domes and fitted with Slosh Baffles that keep ~400 t of moving liquid from coupling into the control loop. Welded construction keeps rivet counts far below an airliner's, but each tank still carries a six-figure Structural Fastener population for baffles, brackets and the systems tunnel. The Propellant Feed System adds thousands of counted Duct Flange Joints, a helium Pressurization System that holds tank ullage pressure as the propellant drains, and the Pogo Accumulator, a gas-charged volume on the LOX line that detunes the propulsion-structure resonance responsible for pogo oscillation on early Saturn flights.

Staging and second stage

After cutoff, Pneumatic Pushers in the Interstage push the spent booster away without pyrotechnic shock. The Second Stage lights its single Vacuum Engine, the same powerhead as the booster engine, but exhausting through a radiatively cooled Nozzle Extension with a ~165:1 area ratio that lifts specific impulse from ~310 s to ~348 s. Its Second-Stage Tank stacks LOX above RP-1 behind a single insulated common bulkhead, saving the length and mass of a separate intertank. During coast, the cold-gas Reaction Control System holds attitude and settles propellant before restart, drawing nitrogen from COPV Pressure Vessels at ~35 MPa.

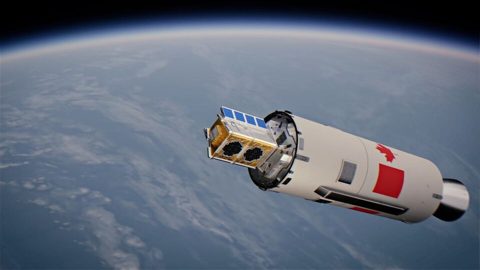

About three minutes into flight, once aerodynamic heating falls below ~1,135 W/m², the Payload Fairing splits along its Fairing Separation Rails and the two Fairing Halfves fall away. Inside, 60 Acoustic Blankets have held the payload bay below ~139 dB through liftoff, when reflected engine noise is the worst structural load many satellites ever see.

Avionics and the part count

The Avionics Suite suite flies the vehicle: three Flight Computers vote every command, three Inertial Measurement Units maintain the navigation state, and redundant Telemetry Transmitters stream several thousand measurement channels to the ground. Two independent Range Safety Units can terminate the flight if the vehicle leaves its corridor. Power flows through redundant Power Distribution Units, and remote Data Acquisition Units digitise sensors and drive effectors near where they sit. Where the part count really lives is the wiring: the Vehicle Electrical Harness adds 48,000 wires, 160,000 crimps and lugs, and 38,000 cushioned clamps rated for ~10 g-RMS random vibration.

That is where three million parts comes from: not from any single exotic component, but from honest accounting. Every Injector Element, every Brazed Joint, every Crimp Terminal appears on a drawing, carries a part number, and was installed and inspected by name. The Saturn V program made the same accounting famous; the figure has been the benchmark for launch-vehicle complexity ever since.
