Satellite Messenger Product

Overview

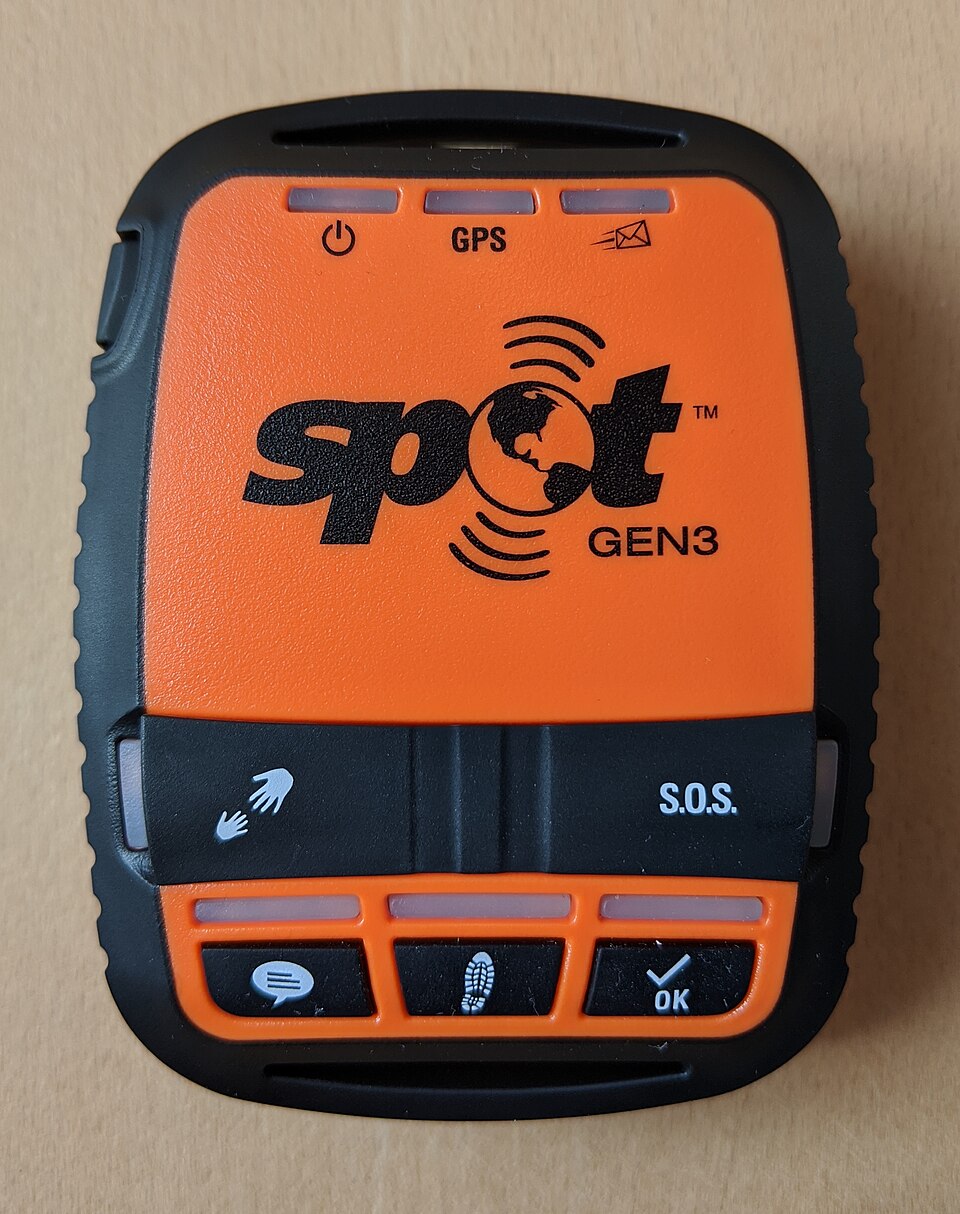

A satellite messenger is a long-range emergency communication device for remote areas beyond cellular coverage. Unlike a mobile phone, which requires ground-based cell towers, it communicates via Low Earth Orbit satellites passing overhead every 10–15 minutes. This device pairs two-way text messaging with one-touch SOS capability, allowing users to send status updates to friends or trigger professional mountain/maritime rescue.

The Housing Assembly encloses a Satellite Modem Module that encodes text into packets and transmits them to orbiting satellites via the Satellite Antenna. On the receiving end, users send messages back to this device, which the Main Board MCU displays on the Display Module. A GPS/GLONASS Receiver fixes the device's position and includes it automatically in outbound messages. The SOS Button Assembly is hardwired to broadcast a pre-configured SOS alert with coordinates to emergency responders.

The Battery Pack provides 10–14 days of idle standby power (messaging drains it faster). Unlike satellite phones, which are large and expensive to operate, this device is message-based: users are charged per message rather than by call duration, and the total data rate is ~160 bits per message, so a single charge enables dozens of operational messages.

How it works

When the user composes a message on the Alphanumeric Keypad and presses send, the Main Board MCU reads the GPS position from the GPS/GLONASS Receiver and appends latitude/longitude to the outbound packet. The packet (≤160 characters) is handed to the Modem ASIC, which encodes it with error-correction codes (Viterbi or Turbo codes, adding 50% overhead) to tolerate the noisy L-band radio path.

The Modem ASIC modulates the bitstream onto a carrier wave in the L-band uplink frequency (typically 1616–1626 MHz for Iridium, 1626–1646 MHz for Globalstar). The Power Amplifier amplifies this to 200 mW (+23 dBm EIRP). The Satellite Antenna, a ceramic patch tuned to L-band, radiates the signal skyward. When a satellite passes overhead, its Low Noise Amplifier (Low Noise Amplifier) aboard the satellite receives the weak signal, amplifies it, and relays it to a ground station.

The ground station network forwards the message to the Iridium or Globalstar messaging infrastructure, which sends it to the user-configured email address or SOS dispatch center. Simultaneously, satellites may transmit a return acknowledgement or new incoming messages back down the Satellite Antenna on the downlink frequency. The Low Noise Amplifier on this device amplifies the faint satellite signal, the Modem ASIC demodulates and decodes it, and the Main Board displays new messages on the Display Module.

The SOS Button Assembly is wired directly to the MCU interrupt. When pressed, it immediately signals the modem to transmit a hardcoded SOS packet containing the latest GPS coordinates, device ID, and a pre-set distress flag. This has priority over normal messages, ensuring SOS transmissions begin within seconds. The Power Management and Battery Pack are sized to survive extended periods in sleep mode (drawing <1 mA), but must supply bursts of 1–2 A during transmission, requiring low internal resistance and a bulk capacitor to prevent brownout.
