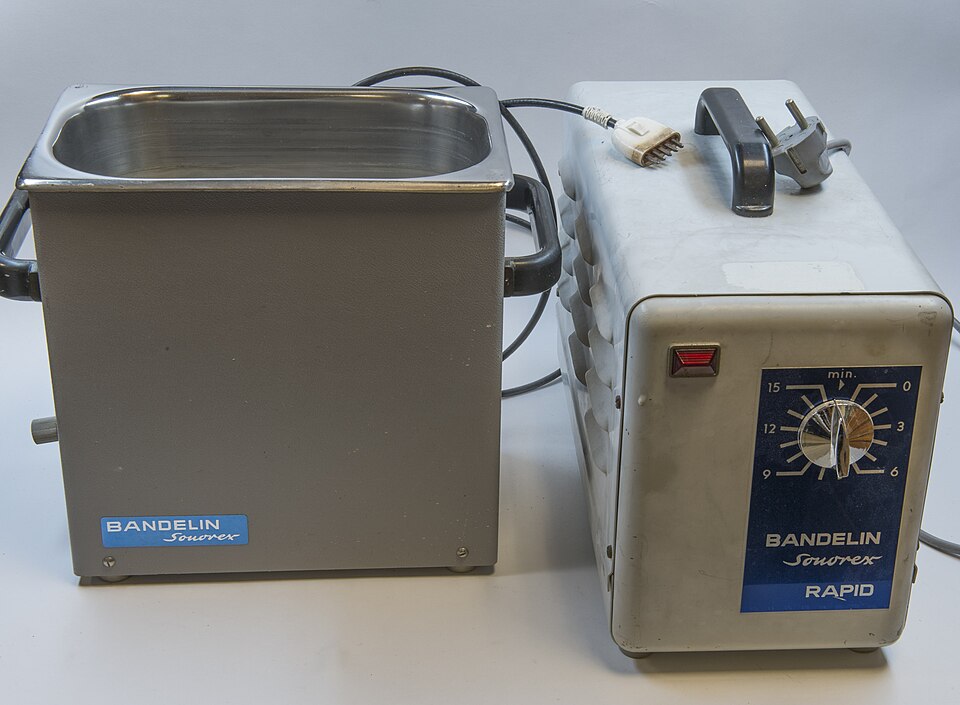

Ultrasonic Cleaner

Overview

An ultrasonic cleaner is a precision instrument that leverages cavitation, the formation and rapid collapse of microscopic bubbles in a liquid, to dislodge and remove contaminants from delicate objects. Commonly used in jewelry shops, dental clinics, watch repair, electronics manufacturing, and laboratories, it can clean intricate geometries that manual scrubbing or soaking cannot reach, without damaging soft metals, gemstones, or fine mechanical assemblies.

The Piezoelectric Transducer Array mounted to the Ultrasonic Tank bottom vibrates at 40 kHz or 80 kHz, depending on the cleaning target. This oscillation creates standing waves in the Tank Body, generating thousands of collapse events per second. Each collapse releases shock waves that dislodge soil, oxide layers, and organic residue from the submerged Mesh Basket and its contents.

The Ultrasonic Frequency Generator is powered by AC mains through the Power Supply & Distribution, and the Solution Heating System warms the solution to optimum temperature. A Cleaning Cycle Timer controls cycle duration, and a Control Panel & Interface allows the operator to select frequency and target temperature.

How ultrasonic cavitation works

The Piezo Transducer elements are bonded to the tank floor via Transducer Coupling Adhesive. When the Ultrasonic Frequency Generator drives them with a 40 kHz or 80 kHz AC signal from the Oscillator IC, the piezo ceramic expands and contracts at that frequency, mechanically vibrating the tank walls and the liquid inside.

This oscillatory motion creates alternating high-pressure (compression) and low-pressure (rarefaction) zones. During rarefaction cycles, the liquid pressure momentarily drops below its vapor pressure, causing microscopic voids (bubbles) to form. During the next compression cycle, the surrounding pressure collapses these bubbles catastrophically, generating localized shock waves of extreme temperature and pressure, up to thousands of atmospheres and several thousand Kelvin.

These shock waves, and the chemical reactions they trigger (free radicals, sonochemistry), ablate dirt, rust, oxide, and organic films from the submerged object surface. The effect is passive (requires no mechanical action from the user) and non-destructive to properly selected materials (gold, diamonds, soft ceramics withstand cavitation; delicate gemstones may not).

Frequency and application

40 kHz is the standard frequency for jewelry, watches, and general delicate cleaning. Bubble nucleation is copious, and the energy is sufficient to remove dust, oils, and light corrosion.

80 kHz (or higher) generates smaller bubbles with higher collapse energy, suitable for precision parts with tighter geometries (injection needles, microfluidic devices) and harder deposits (calcification, rust).

Lower frequencies (< 40 kHz) produce larger bubbles and are used for very robust items and heavy fouling, but can damage soft materials.

Temperature control

The Solution Heating System warms the solution from 20°C (ambient) to the setpoint. Temperature affects cleaning efficiency: warmer solutions reduce surface tension, accelerate diffusion, and lower fluid viscosity, all enhancing cavitation bubble formation and collapse. However, too much heat can damage some materials (wax finishes, some adhesives). A Temperature Sensor feeds back to a Relay controlling the Heating Element, maintaining the temperature within setpoint ±2°C.

Cleaning solution

Water with a surfactant (detergent or biodegradable soap) is the most common medium. Organic solvents (acetone, isopropyl alcohol) are used for delicate or oily items but require ventilation. The solution medium must support cavitation; too much dissolved gas (degassing required) or solids (filtration needed) reduces effectiveness.

Safety and maintenance

The Thermal Fuse (100–110°C) is a final safeguard against runaway heating. The Mesh Basket should be removed before draining to prevent objects from falling into the Drain Valve. Regular descaling and solution replacement (every 40–100 hours) prevents transducer decay and maintains cleaning effectiveness.
