Electronic Stethoscope Product

Overview

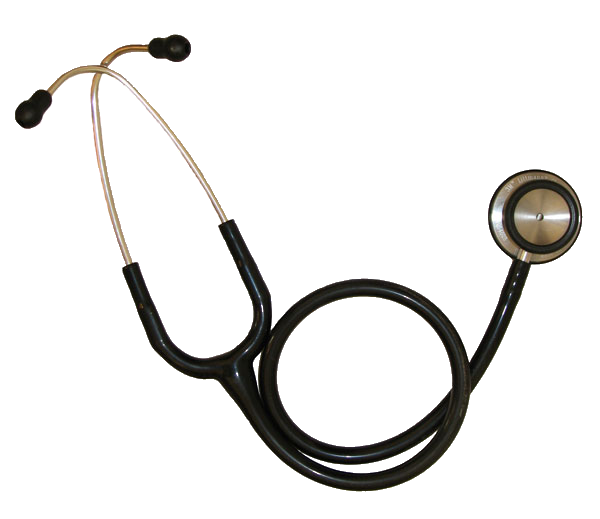

An electronic stethoscope amplifies and transmits bodily sounds (heartbeat, lung breathing, bowel motility) wirelessly to the clinician's ears via Bluetooth earpieces. Unlike a traditional acoustic stethoscope—which relies purely on mechanical resonance and the user's hearing acuity—an electronic stethoscope includes active amplification, noise filtering, and optional recording for remote diagnosis or audio documentation.

The Chestpiece Assembly contains dual acoustic sensors: one optimized for high-frequency cardiac (heart) sounds and one for low-frequency respiratory (lung) sounds. A user can switch between these modes via buttons to isolate the relevant anatomy. Wireless transmission via Bluetooth TX Module allows the clinician to move around the patient's body freely without pulling cables.

How it works

The Diaphragm Sensor is a thin stainless steel disc mounted on top of the chestpiece. When placed against the patient's skin, vibrations (acoustic pressure waves) from the chest cavity deform the disc. A MEMS Accelerometer—an integrated MEMS accelerometer or capacitive position sensor—mounted under the disc detects these vibrations as a small AC voltage (microvolts to millivolts range).

The Sensor Preamp amplifies this signal by 20–30 dB without adding significant noise. For capacitive sensors, a trans-impedance amplifier converts charge displacement to voltage; for accelerometers, a simple buffer amp suffices.

Simultaneously, the Bell Sensor—a separate acoustic chamber accessed by pressing the chestpiece flat against the skin without the diaphragm—captures lower-frequency sounds (murmurs, bowel sounds, fetal heart tones) through a dedicated Bell Acoustic Sensor. A mechanical or electronic Tuning Membrane mode switch selects which sensor's output reaches the main signal path.

Both signals converge at the Signal Processor Unit's Audio Codec, a dual-channel ADC sampling at 8–16 kHz with 16-bit resolution. The Microcontroller then applies real-time DSP filtering:

1. High-pass filter (100 Hz cutoff for cardiac, 20 Hz for lung): removes DC and very-low-frequency artifacts (muscle movement, patient breathing baseline).

2. Low-pass filter (2 kHz cutoff): suppresses electronic noise and high-frequency hum (60 Hz power line hum and harmonics).

3. Noise gate (optional): mutes the signal when the patient is silent, reducing background room noise during quiet listening periods.

4. Compression (optional, on advanced models): dynamic range compression with ~3:1 ratio ensures that loud murmurs don't clip while maintaining audibility of faint sounds.

The processed audio is encoded as Bluetooth audio frames (typically A2DP codec) and streamed to the Wireless Earpiece Pair via the BLE Transceiver. The Earbud BLE Module receivers in each earbud decode the Bluetooth stream and immediately play the audio through the [[electronic-stethoscope-earbud-speaker|6–8 mm speakers]].

End-to-end latency from patient contact to ear is ~50–100 ms, which is imperceptible to human hearing and crucial for palpation (feeling a pulse) while auscultating (listening), as the clinician must coordinate visual, tactile, and auditory feedback in real-time.

Diaphragm vs. Bell Mode

The Diaphragm Sensor excels at detecting high-frequency cardiac sounds: the rapid "lub-dub" of the valve closure, splitting of the second heart sound (S2), and systolic/diastolic murmurs. Its frequency response peaks around 500 Hz – 1 kHz.

The Bell Sensor excel at detecting low-frequency sounds: early murmurs, diastolic rumble, and the low-pitched S3 and S4 gallops that signal heart failure. Its response peaks around 100–200 Hz.

Clinically, a clinician listens with the diaphragm first, then switches to the bell by pressing the chestpiece flat (depressing the mechanical Tuning Membrane diaphragm). The electronic mode switch ensures the correct sensor's output is routed to the amplifier.

Wireless Connectivity

Bluetooth LE (low energy) operates at 2.4 GHz, the same band as WiFi and microwave ovens. To mitigate interference, modern stethoscopes use frequency hopping (changing channels 100+ times per second) and FEC (forward error correction) encoding. This allows operation in busy RF environments like hospitals with dense WiFi.

Range is typically 10–30 m. Walls and metal objects attenuate the signal; if the patient is in an adjacent room, wireless loss of signal is possible. Some models include a low-battery warning tone through the earpieces and auto-reconnect logic to seamlessly regain connection if temporary dropouts occur.

Power & Charging

The Battery Module in the chestpiece processor unit is a 3.7 V li-ion cell (1000–1500 mAh). At ~300 mW average draw (amplifier, DSP, Bluetooth TX, mixed usage), endurance is 8–12 hours per charge. The [[electronic-stethoscope-earbud-battery|earpieces' smaller batteries]] (30–50 mAh each) last 4–6 hours before requiring a dock charge.

USB-C charging via USB Port on the chestpiece processor unit recharges the main battery in ~2 hours. Some models include a charging dock that simultaneously charges both earpieces and the main unit.

Recording & Telemedicine

Advanced stethoscopes include onboard storage (microSD card slot or cloud upload via WiFi) for recording patient audio. A clinician can record a patient's heart sounds, then send the file to a cardiologist for remote expert diagnosis. Audio timestamps and patient metadata (name, ID, exam date) are automatically appended.

This feature is invaluable in rural clinics, primary care screening, or preliminary triage, where specialist cardiologists are unavailable on-site.

Noise Filtering & Artifact Suppression

The Filter Network dual bandpass filters—one for cardiac (100–2000 Hz) and one for pulmonary (100–5000 Hz) modes—suppress out-of-band noise. In a noisy environment (busy hospital ward with talking, beeping monitors, rumbling carts), the filters dramatically improve the signal-to-noise ratio by attenuating frequencies where clinically relevant signals don't exist.

The Acoustic Damper foam lining inside the Acoustic Isolation Chamber and tubing absorbs ambient sound leakage and echoes, further isolating the patient's sounds.

Comfort & Durability

The Ear Tips Set come in multiple sizes (small, medium, large) for proper fit and acoustic seal. An improper seal allows external noise to leak in and reduces sound transmission; the user should select tips that fit snugly but comfortably.

The Diaphragm Disc is a wear part; after 2–5 years of daily use, scratches degrade acoustic transmission. Replacement discs are inexpensive (~$10–20) and snap onto the chestpiece. The tubing also degrades from UV exposure and becomes brittle; replacement Y-tubes are available.

Clinical Validation

Electronic stethoscopes are subject to clinical validation per IEC 60601-2-49 (medical device standard for stethoscopes). Tests include:

• Frequency response accuracy relative to a reference acoustic simulator.
• SNR measurement in standardized phantom acoustic environments.
• Latency (<300 ms acceptable).
• Wireless reliability (no dropouts in RF-noisy hospital).

High-end clinical stethoscopes used in cardiology departments are validated to sensitivity/specificity standards for detecting specific murmurs or arrhythmias.

Typical Use Case

A cardiologist performs a bedside cardiac examination. She places the electronic stethoscope's chestpiece at the aortic area (right upper sternal border), selects diaphragm mode via a button press, and adjusts volume. She hears the systolic and diastolic heart sounds clearly amplified through the wireless earpieces. She palpates the precordium (feels the chest wall) simultaneously to detect a thrill (palpable murmur), then switches to the bell mode to listen for early diastolic murmurs. The patient is now comfortable (no stethoscope tubing pulling on the clinician's neck), and the audio clarity lets her detect pathologic murmurs that might be inaudible on a traditional acoustic stethoscope.

If needed, she presses the record button to capture a 30-second audio clip. Later, she can upload this to a remote cardiology center for expert interpretation.

Limitations

Electronic stethoscopes require charging and are not suitable for extended use without power access (e.g., a 48-hour expedition). If Bluetooth fails, the clinician cannot hear unless the unit has a fallback acoustic coupling (not all models do). The audio quality, while superior to acoustic stethoscopes in noisy environments, depends on proper earpiece fit and speaker quality; cheap units with poor speakers sound worse than a good mechanical stethoscope.

Training is required: clinicians accustomed to mechanical stethoscopes must learn to interpret the electronic audio signature (which may have different tone and dynamics) and get comfortable with the Bluetooth connectivity and button interface.
