Industrial Exoskeleton Product
Overview
Industrial exoskeletons augment human strength and endurance by transferring load from the operator's spine and shoulders to a mechanical frame, then distributing that load through the exoskeleton's structure to the ground or waist mounting points. This is fundamentally different from powered armor (which adds force): an exoskeleton reduces the effort required, allowing a worker to lift heavier loads, work at overhead heights longer, or complete repetitive motions with less fatigue.
Exoskeletons are deployed in manufacturing (automotive assembly, overhead drilling), warehousing (box sorting and stacking), construction (drywall installation, heavy tool use), and logistics (package sorting, material handling). In these roles, a worker might lift 20–50 times per shift; an exoskeleton reducing effective load by 70% (transforming a 20 kg lift to 6 kg felt effort) dramatically reduces cumulative spine stress and worker injury rates.

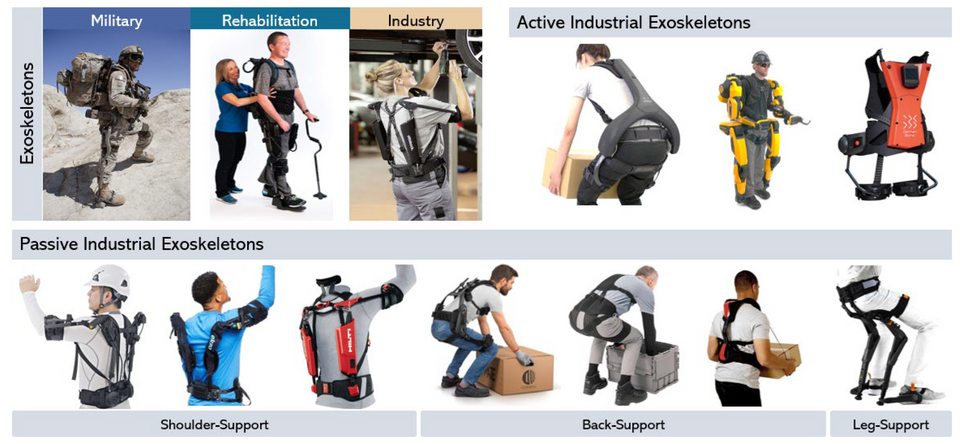

Two architectural approaches exist: passive (spring-assisted) and active (motor-driven). Passive exoskeletons use mechanical springs or leveraged joints to offset load; they are lightweight, durable, and low-cost but provide fixed assist ratios regardless of task. Active exoskeletons use electric motors and load sensors to adjust assist dynamically—an ideal design adapts assist force based on the worker's intended movement and load.
Passive Spring-Assisted Design
A minimal passive design uses compression springs at the shoulder and elbow joints to store and return energy. As the worker lifts a load, the springs deform; at the peak of the lift, the springs are compressed and store potential energy. During the lowering phase, that energy is released, assisting the descent and reducing the work required from the worker's muscles.
The mechanical advantage depends on spring rate (stiffness, measured in N/mm) and the lever arm length. A typical shoulder spring with 200 N/mm stiffness compressed 50mm by a 20 kg load provides 10 kN spring force (distributed across both shoulders) which offsets half the gravitational load. An elbow spring with less stiffness provides comparable assist to the forearm, allowing sustained overhead work with minimal fatigue.
Advantages of passive design: no battery, no electronics, extremely robust (no failure modes except spring fatigue), low cost (~$2000 per unit). Disadvantages: assist is always "on" (consuming energy even during light tasks), and assist cannot be modulated based on task demands. A worker cannot quickly transition from lifting 20 kg to lifting 5 kg; the spring force remains constant, potentially causing overexertion at the low-load end.
Active Motor-Assisted Design
A fully active design uses brushless motors at the major joints (shoulders, lower back, elbows) with proportional electronic controllers. Load cells in the harness attachment points sense applied force in real-time; a microcontroller running a proportional-integral-derivative (PID) loop adjusts motor assist to match load.
The user experience is intuitive: pick up a 30 kg box, and the exoskeleton senses the load and gradually applies motor torque to reduce the effective weight felt by the operator to, say, 10 kg. Set the box down, and the motors instantly de-energize. Adjust your grip or posture, and the assist adjusts accordingly. This dynamic adaptation is not possible with springs.
Motorized designs require lithium batteries (typically 4S LiPo, 14.4V, 5000mAh) mounted on the waist belt. Endurance is 8+ hours at moderate duty cycle (intermittent lifting, not continuous actuation). A 2-hour charge cycle allows a worker to use the same exoskeleton across a full 8-hour shift, charging during lunch break.
Motor power ranges from 50W (gentle assist) to 500W (heavy-duty cargo handling). A 50W motor driving a 3:1 pulley reduction at the lumbar spine can generate 60 Nm of torque, capable of offsetting 30 kg load at a 1m moment arm (typical when lifting at waist height).
Harness Design & Load Path
The harness is the critical interface between the human and the exoskeleton frame. A poorly designed harness causes pressure points, chafing, and reduced worker compliance (operators will reject the exoskeleton if uncomfortable). A well-designed harness distributes load uniformly across wide surface areas—shoulders, waist, chest.
The primary load path is the waist belt: a wide (~100mm) webbing belt with contoured foam padding sits on the user's iliac crest (hip bone) and lower abdomen. This belt carries the majority of vertical load (supporting the exoskeleton weight and augmented payload). The shoulder straps form a Y-configuration, distributing load from the exoskeleton arms down to the waist belt. Padding is critical to prevent subcutaneous bruising.
An emergency quick-release mechanism allows donning and doffing in under 3 minutes. This is essential for task-switching: a worker might wear the exoskeleton for 30 minutes while doing overhead drilling, then remove it for 15 minutes during a design review meeting, then re-don it. Quick-release prevents frustration and ensures the exoskeleton is worn appropriately rather than left off due to inconvenience.
Adjustability for operator fit is paramount: exoskeletons are typically shared among multiple workers on a shift. Velcro adjustable closures and removable padding allow customization for different body shapes and sizes. A height-adjustable torso section and telescoping arm links accommodate operators from 160–200cm.
Sensor Integration & Real-Time Feedback
An inertial measurement unit (IMU) on the exoskeleton frame detects body posture: the accelerometer measures gravity direction (detecting forward lean, squat posture, etc.), and the gyroscope measures rotation speed (bending, twisting). Joint encoders on the shoulders and elbows report angle, allowing the controller to detect if the worker is lifting (shoulder abduction) or lowering (shoulder adduction) and adjust motor assist accordingly.
Load cells mounted on the harness attachment points measure vertical force. If 200 N is sensed at the waist (corresponding to ~20 kg load), the controller commands the lumbar and shoulder motors to provide proportional assist. The assist force is typically capped at 70% of the sensed load, leaving 30% for the operator's muscles (to maintain healthy engagement and proprioceptive feedback).
Telemetry from these sensors is optionally transmitted to a supervisor workstation via WiFi or Bluetooth, enabling: (1) fatigue monitoring (detecting when a worker is overexerted by high load or long duration), (2) posture coaching (alerting the worker if bending angle exceeds safe limits), and (3) productivity metrics (correlation between exoskeleton use and task completion time).
Design Considerations & Trade-Offs
Weight vs. Assist Power: A heavier exoskeleton can generate more assist force (larger motors, more structural margin) but increases fatigue on the operator's legs and lower back. A typical design targets exoskeleton weight under 7 kg; any heavier and the assist benefit is partially offset by the weight of the device itself.
Spring vs. Motor: Passive springs are simpler and more reliable but inflexible. Motors provide dynamic assist but require electronics and power. A hybrid design combines a base spring assist with a low-power motor for fine-tuning.
Durability: Manufacturing environments are harsh (impacts, water splash, temperature swings). The exoskeleton must survive drops, be easily cleanable, and remain reliable over thousands of hours of use. Aluminum or carbon-fiber frames are preferred over plastic; sealed connectors protect electronics from moisture.
Customization: One-size-fits-all exoskeletons do not work; worker acceptance requires fit customization. Manufacturing exoskeletons in modular segments allows mixing sizes: a large torso section paired with small arm links for a short worker, etc.
Deployment & Training
Pre-deployment, workers are trained on proper donning, adjustment, and use. A 30-minute training session covers: (1) checking fit and strap tension, (2) understanding assist modes (manual throttle vs. auto load-sensing), (3) safe lifting technique with the exoskeleton (form is still important), and (4) emergency situations (power loss, entanglement).
Most workers adopt exoskeletons immediately if properly fitted; fatigue reduction is noticeable within the first hour. Productivity studies show 10–20% time savings on repetitive lifting tasks, offset against a typical unit cost of $3000–5000 (passive) or $8000–15000 (active).
Long-term adoption requires maintenance: padding wears and must be replaced ($200 per year), motors degrade (typical motor life is 5000 hours, ~2–3 years of heavy use), and battery capacity declines (20% loss after 1000 charge cycles). A well-supported exoskeleton program includes spare parts, maintenance contracts, and worker feedback loops to drive continuous improvement.
Occupational Health Impact
Epidemiological studies of exoskeleton deployment show 30–40% reduction in work-related musculoskeletal disorder (WMSD) incidents (back strain, shoulder tendinitis, carpal tunnel). Risk reduction is most pronounced in tasks involving: (1) repetitive overhead reaching, (2) sustained bent-over postures, and (3) frequent heavy lifting.
However, exoskeletons are not a panacea for ergonomics: proper workstation design, task rotation, and exercise remain essential. Some workers initially report increased localized pressure at harness points (taking 1–2 weeks to adapt); gradual introduction of exoskeleton use—starting with 2 hours per day, progressing to full-shift use—maximizes long-term adoption and comfort.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labourTap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
6 top-level lines · 31 rows shown · 33 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Structural Frame Assembly 5 parts | industrial-exoskeleton-frame | 1× | 1 | 7 | assembly |
| 1.1 | Aluminum Torso Box Section | industrial-exoskeleton-torso-frame | 1× | 1 | — | part |
| 1.2 | Aluminum Arm Segment | industrial-exoskeleton-arm-links | 2× | 2 | — | part |
| 1.3 | Leg Support Member | industrial-exoskeleton-leg-supports | 2× | 2 | — | part |
| 1.4 | Angular-Contact Bearing Pair | industrial-exoskeleton-joint-bearing | 1× | 1 | — | part |
| 1.5 | Stainless Fastener Assortment | industrial-exoskeleton-fastener-kit | 1× | 1 | — | part |
| 2 | Joint Actuation System 4 parts | industrial-exoskeleton-actuation | 1× | 1 | 6 | assembly |
| 2.1 | Brushless Shoulder Actuator | industrial-exoskeleton-shoulder-motor | 2× | 2 | — | part |
| 2.2 | Arm Assist Spring | industrial-exoskeleton-elbow-spring | 2× | 2 | — | part |
| 2.3 | Back-Load Motor Drive | industrial-exoskeleton-lumbar-motor | 1× | 1 | — | part |
| 2.4 | Multi-Channel Motor Controller | industrial-exoskeleton-motor-esc | 1× | 1 | — | part |
| 3 | Load-Bearing Harness 4 parts | industrial-exoskeleton-harness | 1× | 1 | 5 | assembly |
| 3.1 | Industrial Waist Belt | industrial-exoskeleton-waist-belt | 1× | 1 | — | part |
| 3.2 | Y-Harness Shoulder Strap | industrial-exoskeleton-shoulder-straps | 2× | 2 | — | part |
| 3.3 | Emergency Release Mechanism | industrial-exoskeleton-quick-release | 1× | 1 | — | part |
| 3.4 | EVA Foam Padding Sheet | industrial-exoskeleton-padding-material | 1× | 1 | — | part |
| 4 | Power Supply & Charging 4 parts | industrial-exoskeleton-battery | 1× | 1 | 4 | assembly |
| 4.1 | Li-Ion Battery Pack | industrial-exoskeleton-lipo-pack | 1× | 1 | — | part |
| 4.2 | Battery Management Board | industrial-exoskeleton-bms | 1× | 1 | — | part |
| 4.3 | Wall Charger Module | industrial-exoskeleton-charger | 1× | 1 | — | part |
| 4.4 | Battery Pouch Holster | industrial-exoskeleton-battery-mount | 1× | 1 | — | part |
| 5 | Sensor & Control Module 4 parts | industrial-exoskeleton-control-electronics | 1× | 1 | 6 | assembly |
| 5.1 | 9-DOF IMU Sensor | industrial-exoskeleton-imu | 1× | 1 | — | part |
| 5.2 | Magnetic Rotary Encoder | industrial-exoskeleton-joint-encoder | 3× | 3 | — | part |
| 5.3 | Load Cell Transducer | industrial-exoskeleton-torque-sensor | 1× | 1 | — | part |
| 5.4 | ARM Cortex-M0+ Processor | industrial-exoskeleton-mcu | 1× | 1 | — | part |
| 6 | Comfort & Ergonomic Padding 4 parts | industrial-exoskeleton-padding-components | 1× | 1 | 5 | assembly |
| 6.1 | Contoured Shoulder Pad | industrial-exoskeleton-shoulder-pad | 2× | 2 | — | part |
| 6.2 | Gel-Infused Waist Pad | industrial-exoskeleton-waist-cushion | 1× | 1 | — | part |
| 6.3 | Moisture-Wicking Fabric | industrial-exoskeleton-fabric-liner | 1× | 1 | — | part |
| 6.4 | Velcro & Buckle Fastener | industrial-exoskeleton-closure-straps | 1× | 1 | — | part |
