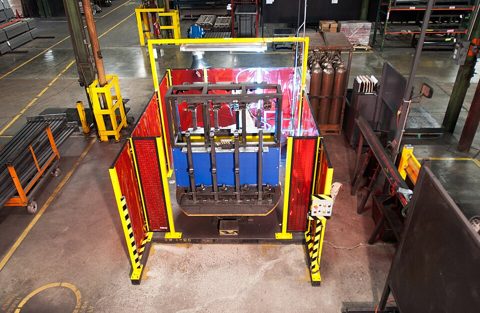

A fully fenced robotic MIG/MAG arc-welding work cell. A full specification article for this item is being written. Meanwhile its bill of materials and connections are below.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labour product / assembly shared across products atomic part related product
Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
9 top-level lines · 89 rows shown · 999 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | 6-Axis Robot Arm 6 parts | welding-robot-cell-arm | 1× | 1 | 317 | assembly |
| 1.1 | Robot Base | welding-robot-cell-arm-base | 1× | 1 | — | part |
| 1.2 | Joint Actuator 6 parts | welding-robot-cell-joint-actuator | 6× | 6 | 34 | assembly |
| 1.2.1 | Servo Motor 4 parts + deeper › | servo-motor | 1× | 6 | 24 | assembly |
| 1.2.2 | RV Gear Reducer 4 parts + deeper › | welding-robot-cell-rv-reducer | 1× | 6 | 5 | assembly |
| 1.2.3 | Encoder | encoder | 1× | 6 | — | part |
| 1.2.4 | Holding Brake | welding-robot-cell-holding-brake | 1× | 6 | — | part |
| 1.2.5 | Ball Bearing | ball-bearing | 2× | 12 | — | part |
| 1.2.6 | Fastener Set | fastener-set | 1× | 6 | — | part |
| 1.3 | Upper Arm Link | welding-robot-cell-upper-arm-link | 1× | 1 | — | part |
| 1.4 | Forearm Link | welding-robot-cell-forearm-link | 1× | 1 | — | part |
| 1.5 | 3-Axis Wrist 4 parts | welding-robot-cell-wrist | 1× | 1 | 109 | assembly |
| 1.5.1 | Joint Actuator 6 parts + deeper › | welding-robot-cell-joint-actuator | 3× | 3 | 34 | assembly |
| 1.5.2 | Helical Gear Pair | gear-pair | 2× | 2 | — | part |
| 1.5.3 | Ball Bearing | ball-bearing | 4× | 4 | — | part |
| 1.5.4 | Torch Mount Bracket | welding-robot-cell-torch-mount | 1× | 1 | — | part |
| 1.6 | Arm Internal Harness | welding-robot-cell-arm-harness | 1× | 1 | — | part |
| 2 | Robot Controller Cabinet 7 parts | welding-robot-cell-controller-cabinet | 1× | 1 | 556 | assembly |
| 2.1 | Compute SoC Module | soc-module | 1× | 1 | — | part |
| 2.2 | Servo Drive 4 parts | servo-drive | 6× | 6 | 91 | assembly |
| 2.2.1 | Bare PCB | pcb-bare | 1× | 6 | — | part |
| 2.2.2 | IGBT Power Module | igbt-module | 1× | 6 | — | part |
| 2.2.3 | Gate Driver Board 3 parts + deeper › | gate-driver-board | 1× | 6 | 87 | assembly |
| 2.2.4 | DC-Link Capacitor | dc-link-cap | 2× | 12 | — | part |
| 2.3 | Power Supply | power-supply | 1× | 1 | — | part |
| 2.4 | Teach Pendant 4 parts | welding-robot-cell-teach-pendant | 1× | 1 | 4 | assembly |
| 2.4.1 | LCD Panel | lcd-panel | 1× | 1 | — | part |
| 2.4.2 | Microcontroller | mcu | 1× | 1 | — | part |
| 2.4.3 | Enabling Switch | welding-robot-cell-enabling-switch | 1× | 1 | — | part |
| 2.4.4 | Connector | connector | 1× | 1 | — | part |
| 2.5 | I/O Board | io-board | 2× | 2 | — | part |
| 2.6 | Sheet Metal Panel | sheet-panel | 1× | 1 | — | part |
| 2.7 | Wire Bundle | wire-bundle | 1× | 1 | — | part |
| 3 | Arc Welding Equipment 5 parts | welding-robot-cell-welding-equipment | 1× | 1 | 39 | assembly |
| 3.1 | Welding Power Source 4 parts | welding-robot-cell-power-source | 1× | 1 | 5 | assembly |
| 3.1.1 | IGBT Power Module | igbt-module | 2× | 2 | — | part |
| 3.1.2 | Welding Transformer | welding-robot-cell-transformer | 1× | 1 | — | part |
| 3.1.3 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 3.1.4 | Microcontroller | mcu | 1× | 1 | — | part |
| 3.2 | Wire Feeder 3 parts | welding-robot-cell-wire-feeder | 1× | 1 | 29 | assembly |
| 3.2.1 | Servo Motor 4 parts + deeper › | servo-motor | 1× | 1 | 24 | assembly |
| 3.2.2 | Drive Feed Roll | welding-robot-cell-feed-roll | 4× | 4 | — | part |
| 3.2.3 | Helical Gear Pair | gear-pair | 1× | 1 | — | part |
| 3.3 | MIG Welding Torch 3 parts | welding-robot-cell-mig-torch | 1× | 1 | 3 | assembly |
| 3.3.1 | Contact Tip | welding-robot-cell-contact-tip | 1× | 1 | — | part |
| 3.3.2 | Gas Nozzle | welding-robot-cell-gas-nozzle | 1× | 1 | — | part |
| 3.3.3 | Torch Liner | welding-robot-cell-liner | 1× | 1 | — | part |
| 3.4 | Welding Wire Spool | welding-robot-cell-wire-spool | 1× | 1 | — | part |
| 3.5 | Gas Regulator | welding-robot-cell-gas-regulator | 1× | 1 | — | part |
| 4 | Workpiece Positioner 6 parts | welding-robot-cell-positioner | 1× | 1 | 30 | assembly |
| 4.1 | Servo Motor 4 parts | servo-motor | 1× | 1 | 24 | assembly |
| 4.1.1 | Stator Assembly 3 parts + deeper › | stator-assembly | 1× | 1 | 3 | assembly |
| 4.1.2 | Rotor Assembly 4 parts + deeper › | rotor-assembly | 1× | 1 | 19 | assembly |
| 4.1.3 | Encoder | encoder | 1× | 1 | — | part |
| 4.1.4 | Motor Housing | motor-housing | 1× | 1 | — | part |
| 4.2 | Gearbox Housing | gearbox-housing | 1× | 1 | — | part |
| 4.3 | Helical Gear Pair | gear-pair | 1× | 1 | — | part |
| 4.4 | Encoder | encoder | 1× | 1 | — | part |
| 4.5 | Ball Bearing | ball-bearing | 2× | 2 | — | part |
| 4.6 | Positioner Faceplate | welding-robot-cell-faceplate | 1× | 1 | — | part |
| 5 | Safety System 5 parts | welding-robot-cell-safety-system | 1× | 1 | 15 | assembly |
| 5.1 | Fence Panel | welding-robot-cell-fence-panel | 8× | 8 | — | part |
| 5.2 | Safety Light Curtain | welding-robot-cell-light-curtain | 1× | 1 | — | part |
| 5.3 | Door Interlock Switch | welding-robot-cell-safety-interlock | 2× | 2 | — | part |
| 5.4 | Safety Relay | welding-robot-cell-safety-relay | 1× | 1 | — | part |
| 5.5 | Emergency Stop Button | welding-robot-cell-estop-button | 3× | 3 | — | part |
| 6 | Fume Extraction Unit 3 parts | welding-robot-cell-fume-extraction | 1× | 1 | 4 | assembly |
| 6.1 | Extraction Blower | welding-robot-cell-extraction-fan | 1× | 1 | — | part |
| 6.2 | Filter Cartridge | welding-robot-cell-filter-cartridge | 2× | 2 | — | part |
| 6.3 | Relay | relay | 1× | 1 | — | part |
| 7 | Tooling Fixture 5 parts | welding-robot-cell-tooling-fixture | 1× | 1 | 25 | assembly |
| 7.1 | Fixture Base Plate | welding-robot-cell-base-plate | 1× | 1 | — | part |
| 7.2 | Pneumatic Toggle Clamp 3 parts | welding-robot-cell-pneumatic-clamp | 6× | 6 | 3 | assembly |
| 7.2.1 | Air Cylinder | welding-robot-cell-air-cylinder | 1× | 6 | — | part |
| 7.2.2 | Clamp Arm | welding-robot-cell-clamp-arm | 1× | 6 | — | part |
| 7.2.3 | O-Ring Set | oring-set | 1× | 6 | — | part |
| 7.3 | Locating Pin | welding-robot-cell-locating-pin | 4× | 4 | — | part |
| 7.4 | Solenoid Valve | welding-robot-cell-solenoid-valve | 1× | 1 | — | part |
| 7.5 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 8 | Cell Controller 5 parts | welding-robot-cell-cell-controller | 1× | 1 | 9 | assembly |
| 8.1 | Microcontroller | mcu | 1× | 1 | — | part |
| 8.2 | HMI Panel | hmi-panel | 1× | 1 | — | part |
| 8.3 | I/O Board | io-board | 2× | 2 | — | part |
| 8.4 | Relay | relay | 4× | 4 | — | part |
| 8.5 | Power Supply | power-supply | 1× | 1 | — | part |
| 9 | Cable Dress Pack 3 parts | welding-robot-cell-dress-pack | 1× | 1 | 4 | assembly |
| 9.1 | Wire Bundle | wire-bundle | 2× | 2 | — | part |
| 9.2 | Shielding Gas Hose | welding-robot-cell-gas-hose | 1× | 1 | — | part |
| 9.3 | Energy Chain | welding-robot-cell-energy-chain | 1× | 1 | — | part |
