Cable Camera System Product

Overview

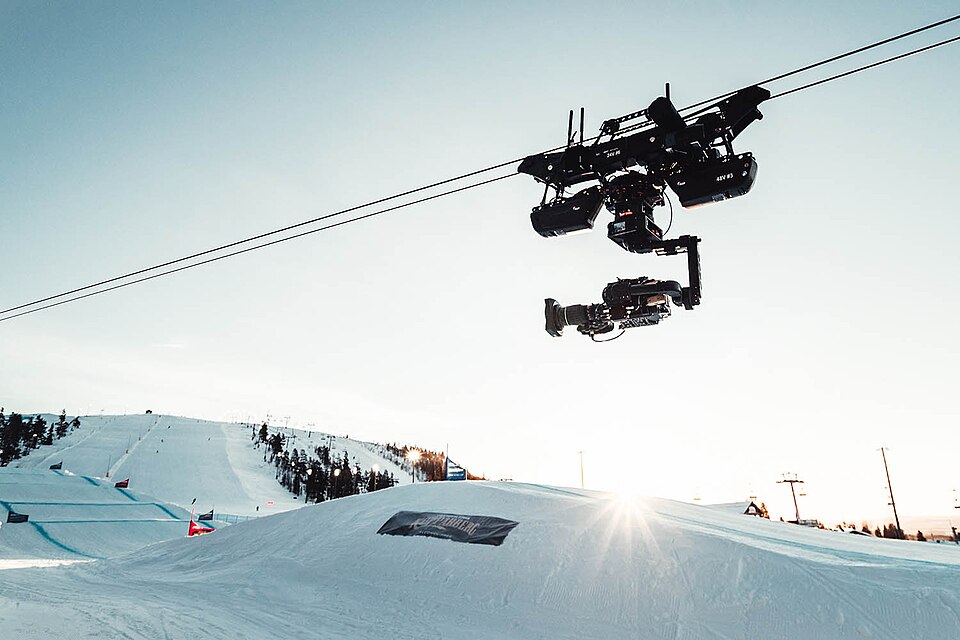

A cable camera system is a motorized crane for broadcast and cinema cinematography, providing smooth, dynamic camera moves over expansive distances—across a sports stadium during a high-angle establishing shot, across a concert stage during a musical number, or across a landscape for an aerial-like reveal. The camera is mounted on a [[cable-cam-system-stabilized-head|three-axis motorized gimbal]] that hangs from a [[cable-cam-system-cable-carriage|motorized carriage]] rolling along a main support [[cable-cam-system-cable-rigging|cable]] suspended between two fixed anchors. The carriage is powered to travel along the cable (left/right motion), while the gimbal is independently controlled via [[cable-cam-system-winches|cable-driven pan and tilt actuators]], giving the operator continuous 5-degree-of-freedom control (carriage position, pan, tilt, plus roll stabilization from the gimbal). The entire move is controlled from a ground-based [[cable-cam-system-control-station|control station]] via joystick, or pre-programmed as a repeatable motion sequence and played back robotically.

Cable systems are the go-to tool for high-budget productions: World Cup stadiums, Marvel films, concert specials, award shows. Unlike drone cameras (limited flight time, regulatory restrictions) or traditional cranes (slow, expensive), cable systems deliver high speed, unlimited endurance, and repeatable precision moves.

Carriage and cable drive

The [[cable-cam-system-cable-carriage|motorized carriage]] is a compact bearing block riding the main [[cable-cam-system-main-cable|galvanized steel 12 mm cable]]. A [[cable-cam-system-drive-pulley|high-grip drive wheel]], powered by a BLDC motor via a gearbox, propels the carriage along the cable at up to 3 m/s. Two [[cable-cam-system-idler-wheels|guide wheels]] keep the carriage centered, while a [[cable-cam-system-tension-spring|preload spring]] ensures consistent grip even if the cable sags slightly.

The [[cable-cam-system-encoder-carriage|carriage encoder]] (a rotary sensor on the drive pulley) continuously reports linear position along the cable; the [[cable-cam-system-controller|onboard SoC]] uses this feedback to maintain precise speed and acceleration profiles. If an operator wants the camera to accelerate smoothly from 0 to 2 m/s over 5 seconds, the controller calculates the exact motor power commands to achieve this, accounting for cable resistance and carriage weight.

The [[cable-cam-system-cable-rigging|guide cables]] running parallel to the main cable limit lateral sway—important when the main cable spans 50+ meters. Without guides, the carriage would swing like a pendulum, ruining the shot. The guides are under adjustable tension (200–300 kg per side) via [[cable-cam-system-cable-tensioner|turnbuckles]], a setup task performed before each shooting day.

Pan and tilt via cable actuation

Traditional pan-tilt heads use motorized gears. A cable system drives pan and tilt through a clever mechanism: the [[cable-cam-system-winches|pan and tilt winches]] are ground-mounted control stations, each winding or unwinding a thin steel cable (3–4 mm) connected to the gimbal head. As the operator moves the joystick, the [[cable-cam-system-controller|SoC]] commands the winch motors to vary cable lengths, which mechanically lever the gimbal to pan left/right or tilt up/down.

Advantages over direct motor drive:

• Zero weight on gimbal: The cable-drive actuation is lightweight; the gimbal carries only the camera and the three stabilization motors, keeping payload low.
• Mechanical advantage: A small motor winding cable over a large drum delivers high torque smoothly, ideal for heavy cinema cameras (20+ kg).
• Safety: If power is lost, [[cable-cam-system-winch-brake|spring brakes]] on the winches lock, holding the camera in place until manually reset.

The [[cable-cam-system-winch-encoder|winch encoders]] track pan and tilt angles in real-time, feeding back to the control station for closed-loop precision.

Stabilized gimbal head

The [[cable-cam-system-stabilized-head|three-axis gimbal]] is the key to professional camera motion. Even if the carriage bounces (wind gusts, cable tension oscillation), the gimbal absorbs vibration through its motors:

• Roll stabilization: A [[cable-cam-system-gimbal-motor-roll|roll motor]] continuously counteracts cable sway, keeping the horizon level even if the cable swings ±20°.
• Pitch and yaw control: The [[cable-cam-system-gimbal-motor-pitch|pitch]] and [[cable-cam-system-gimbal-motor-yaw|yaw motors]] enable deliberate tilts and pans, independent from carriage motion.
• Gyroscopic feedback: A nine-axis [[imu-module|IMU]] on the gimbal detects motion and feeds the error back to the motors at 250 Hz, enabling active stabilization—the faster the cable bounces, the faster the gimbal corrects.

Net result: a shot that appears to glide silently through the air, with no shake or vibration—impossible to achieve with a handheld camera or traditional jib crane.

Camera mount and lens control

The [[cable-cam-system-camera-mount|mount interface]] accepts any cinema camera with a standard 15 mm rod support (RED, ARRI Alexa, Sony FX30, etc.). A quick-change plate allows swapping cameras between setups without disturbing the gimbal calibration. A motorized [[cable-cam-system-mount-focus-controller|focus and zoom controller]] lets the operator remotely adjust lens focus and iris exposure during the shot—perfect for a camera move that simultaneously adjusts focus as it approaches a subject.

Control and motion recording

The [[cable-cam-system-control-station|ground control station]] features a dual-axis [[cable-cam-system-joystick|joystick]] that the operator holds, commanding carriage position (forward/back), pan, and tilt in real-time. A [[cable-cam-system-monitor|7-inch monitor]] displays the live HD video feed from the camera, plus system telemetry (cable tension, battery voltage, motor current). Low-latency wireless or hardwired control (50–100 ms round-trip latency) ensures responsive feel.

A key production advantage is motion playback: the [[cable-cam-system-recorder|onboard recorder]] captures every joystick command and executes timing (keyframes), building a "motion script". This script can be played back exactly—enabling the camera to repeat a complex 30-second dolly-and-pan move shot after shot, frame-perfect, useful for special effects compositing or multi-camera coverage where consistency is critical.

Safety and rigging

The [[cable-cam-system-cable-rigging|cable rigging]] is engineered to exceed 5× safety factor: a 12 mm galvanized steel cable with 500 kg break load carries a 30 kg camera (16.7× safety margin). All anchors are welded eye bolts rated for 5 ton load. A [[cable-cam-system-cable-guard|safety mesh net]] is suspended below the cable run to catch dropped items (lens cap, lens filter, etc.) before they hit a person below.

The [[cable-cam-system-safety-system|safety system]] monitors [[pressure-sensor|cable tension]] continuously. If tension drops unexpectedly (cable slack detected), an alarm sounds and the [[cable-cam-system-carriage-brake|fail-safe brake]] arrests the carriage. A red [[cable-cam-system-emergency-stop|e-stop button]] is wired to ground control, cutting power to all motors for immediate halt.

All components comply with EN 60204-1 (safety of machinery) and industry rigging standards (USITT, SES).

Production workflow

Day-of setup (2–3 hours):

1. Rig the main cable between two anchor points (stadium seating, theater grid, building roofs).
2. Tension the main and guide cables using turnbuckles to 200–300 kg.
3. Run power cable from a 480 VAC generator to the ground control station.
4. Mount the camera on the gimbal plate and connect it to the carriage battery.
5. Calibrate gimbal (set horizon level, focus at infinity).

Shooting:

1. Director indicates the shot: "Start high above the stage, dolly left while tilting down to the drummer."
2. Operator practices the move via joystick, adjusting speed. Director approves.
3. Operator records the joystick commands as keyframes.
4. Production rolls camera and playback the keyframes; the cable system executes the move robotically.
5. If a shot needs repeating (for additional takes, multi-camera sync), the robot replays the motion identically.

Typical moves:

• Establishing shot: Slow 20 m dolly pull-back revealing the full stage or landscape.
• Dynamic reveal: Fast 50 m carriage move synchronized with music beats.
• Precision product shot: Millimeter-level pan/tilt tracking a product through a 360° spin.
• Multiplexed multi-camera: Several cable cameras execute programmed moves in perfect sync, capturing different angles of a performance.

Cable systems are core infrastructure in major broadcast and film productions, often budgeted at $5–50k per day rental, justified by the creative shots and production efficiency they enable.
