Cartesian Gantry Robot Product

Overview

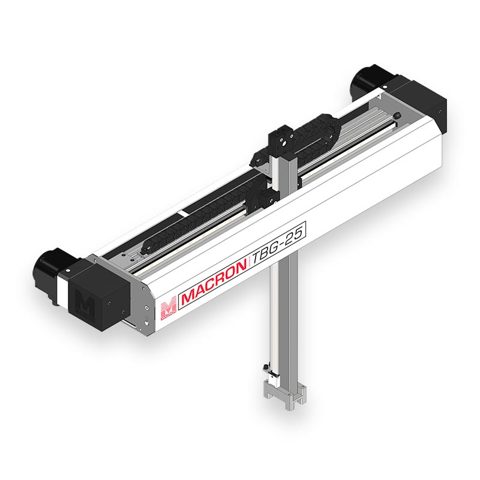

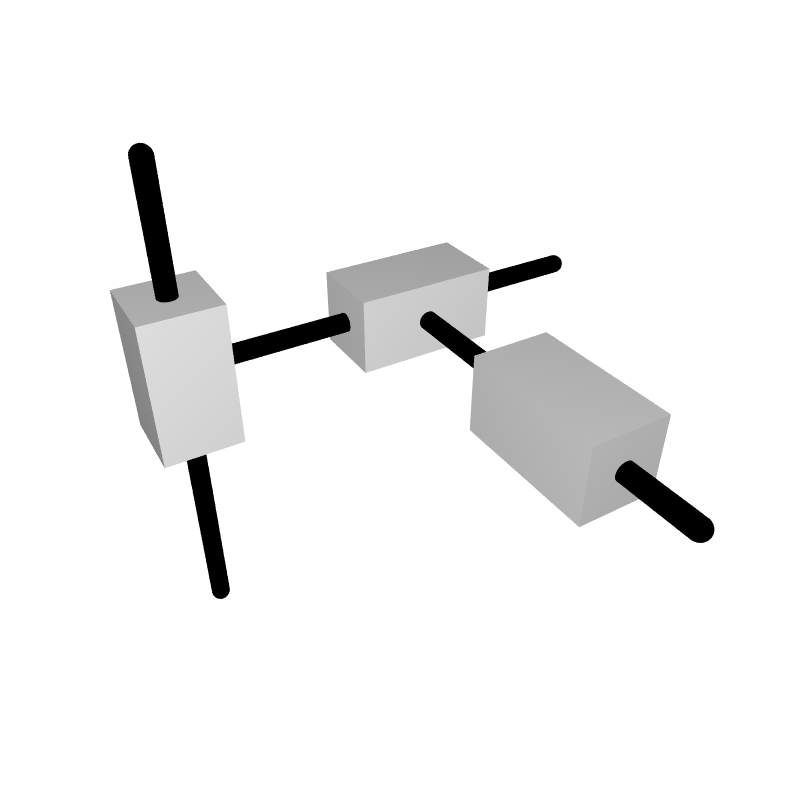

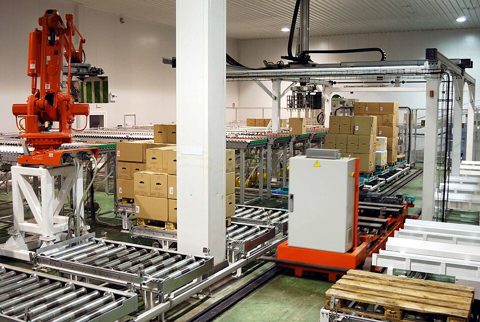

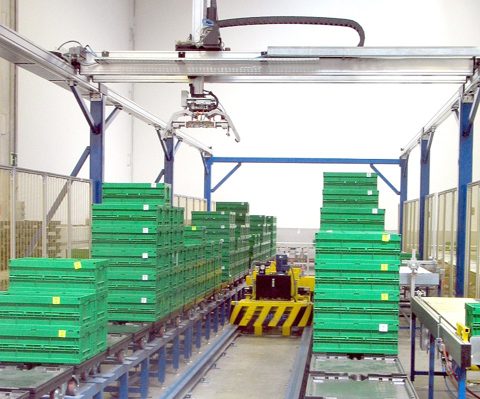

A Cartesian gantry robot positions a tool anywhere inside a rectangular box by stacking three linear axes at right angles, one for each coordinate of space. Unlike a jointed arm, every axis moves in a straight line, so the kinematics are trivial: the X, Y, and Z commands map directly to the three motor positions with no trigonometry. That makes the gantry accurate over a large footprint and easy to program, which is why it dominates pick-and-place, machine tending, dispensing, and inspection where the work is laid out on a flat plane or a shallow pallet. The whole machine hangs from an overhead Gantry Frame so the floor underneath stays clear for parts, fixtures, and conveyors.

How it works

The three axes are built from the same parts in different combinations. The long X Linear Axis bridge uses a steel-cord timing belt because belts move fast over a long stroke without a heavy rotating screw; the shorter Y Linear Axis and vertical Z Linear Axis use a Ball Screw, which trades top speed for stiffness and fine resolution. Each axis rides on profiled Linear Guide rails and is driven by an AC AC Servo Motor whose Servo Encoder closes the position loop through a Servo Drive amplifier. The Z axis adds a spring-applied brake so the tool cannot fall when power is cut.

The tool itself bolts to the End-Effector Mount plate, which here carries a pneumatic parallel gripper but accepts any tool with the right bolt pattern. Power, feedback, and air reach the moving carriages through a Cable Carrier energy chain that flexes with the stroke. A Controller Cabinet cabinet houses the motion compute, one servo drive per axis, and field I/O; it interpolates the three axes together to draw straight lines and arcs through the work envelope. An operator jogs the machine and edits programs from the Teach Pendant, a rugged touchscreen with an emergency stop and an enabling switch for safe manual motion.
