ASRS Shuttle Robot Product

Overview

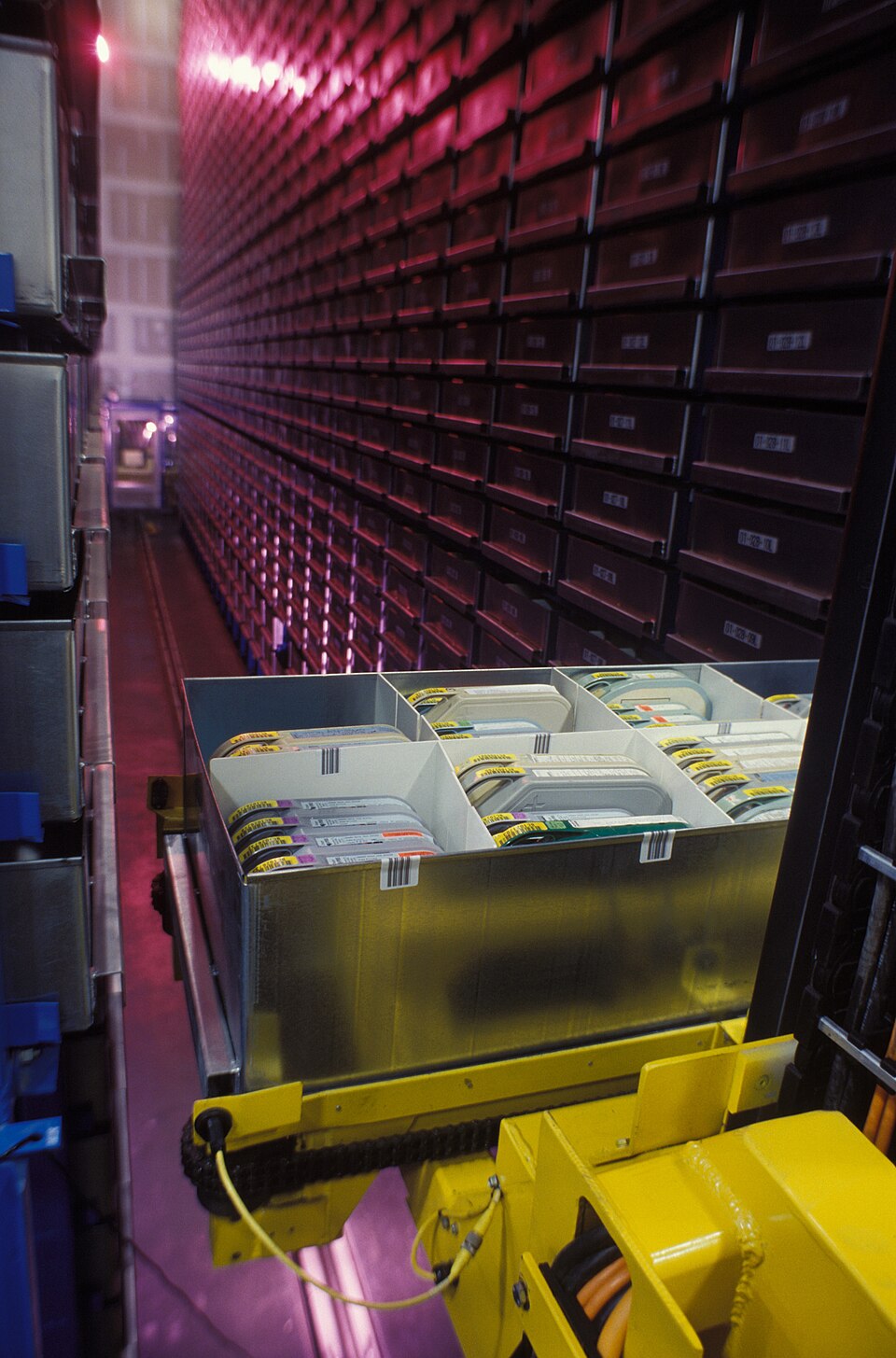

An ASRS shuttle robot is the moving element of a shuttle-based automated storage and retrieval system. Each level of a racking aisle gets its own shuttle, which runs on rails the length of the aisle, stops at a storage column with millimetre precision, extends a pair of telescopic arms under or beside a tote, drags the tote onto its deck, and races it to a lift at the aisle end. Because every level works in parallel, a single aisle sustains hundreds of tote movements per hour — an order of magnitude beyond a crane-based mini-load, which serves the whole aisle with one mast.

Travel

The Drive System presses two polyurethane Drive Wheels against the rail web, driven through a single Helical Gear Pair stage by the Traction Motor, a permanent-magnet servo with an Encoder for commutation and velocity. Eight Guide Rollers bear on the rail flanks so the shuttle stays located laterally without steering. Cruise is 4 m/s with 2 m/s² acceleration; at those rates a shuttle crosses a 60 m aisle in about 17 seconds. Absolute position comes from the Position Barcode Reader, which scans a coded strip glued along the rail — no cumulative odometry error, ±1 mm repeatability, and the shuttle re-localizes instantly after a power cycle.

Tote exchange

The Telescopic Load Handler is the part that distinguishes a shuttle from a cart. Two Telescopic Arms flank the deck, each a three-stage drawer-slide of nested Arm Stage sections on hardened Arm Guide Rails, with a synchronization Drive Belt making the stages extend proportionally. A single Extension Motor drives both arms through a Synchronization Shaft so they cannot skew and jam the tote. At full 1200 mm extension the arms reach the second-deep storage position, letting the rack hold two totes per side per column — double-deep storage trades a relocation move now and then for 40 % more density.

To grab a tote, the arms extend past it and four Finger Unit flippers rotate their Finger Blades down behind the tote lip; retracting the arms drags the tote across the rack shelf onto the Deck Roller Bed. The whole exchange takes about six seconds. Tote Photoeye photoeyes confirm seating, the deck Pressure Sensor sanity-checks the expected weight, and Overhang Sensor light curtains verify nothing sticks out before the shuttle accelerates — a protruding box flap at 4 m/s would strip itself off against the racking.

Supercapacitor power

Shuttles are the textbook industrial application of supercapacitors. The duty cycle is short bursts of high power (peaks of several kilowatts during acceleration) separated by frequent visits to the aisle ends, where the Charge Collector contacts touch powered strips and refill the Supercapacitor Bank in 10 to 15 seconds. Eighteen 2.7 V, 3000 F Supercapacitor Cells in series store roughly 30 kJ usable — only a few watt-hours, but several round trips' worth, and the cells tolerate over a million cycles where a lithium pack would wilt in months of this regime. Regenerative braking through the traction inverter returns much of each deceleration into the bank. A DC-DC Board holds the drive bus steady as the string voltage sags from 48 toward 24 V, and a small 12 V Battery keeps the controller and radio alive so the shuttle never loses its mind between charges.

Control

The Onboard Controller pairs a motion Microcontroller running the travel and transfer state machines with a safety Microcontroller supervising interlocks; an IGBT Power Module forms the traction inverter. Tasks arrive over the Fleet Comms Wi-Fi link from the warehouse control system, which orchestrates shuttles, aisle-end lifts, and conveyors as one flow. The shuttle itself only ever executes simple primitives — go to column N, fetch the inner tote — which is why fleets of hundreds stay manageable.

Service is designed around swap-not-fix: a failed shuttle is craned out by its Lift Point lugs from the aisle-end service platform and a spare drops in, keeping the level running while the patient goes to the workshop.
