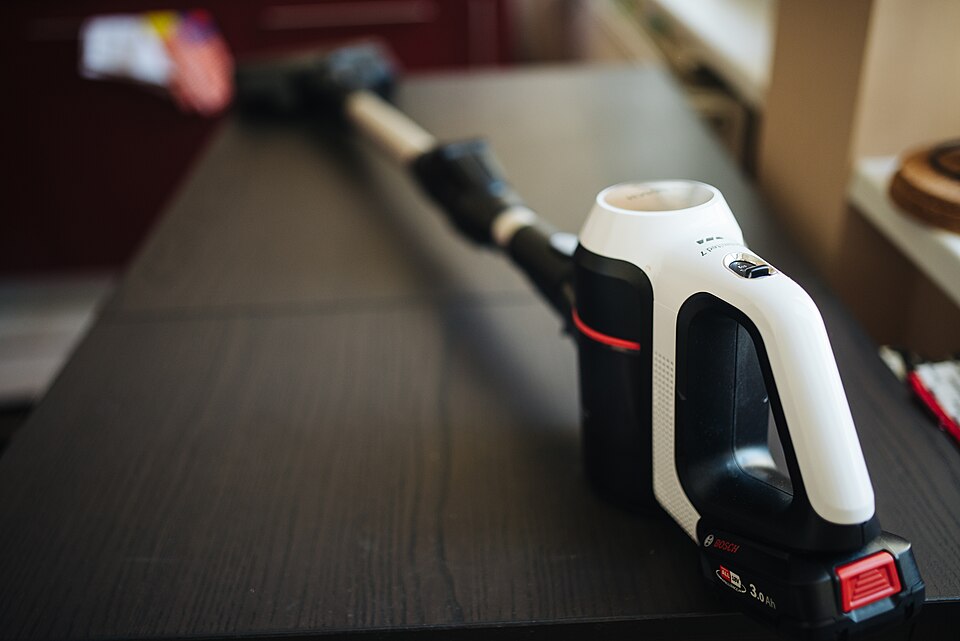

Cordless Stick Vacuum Product

A handheld cordless stick vacuum with a high-speed digital motor, cyclonic separation, HEPA filtration, and a swappable Li-ion pack. A full specification article for this item is being written. Meanwhile its bill of materials and connections are below.

Build & assembly graph

expand / collapse · shared sub-assemblies converge · links to related products · est. labour
product / assembly shared across products atomic part related product

Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.

Bill of materials

11 top-level lines · 68 rows shown · 180 parts total · indented to 3 levels
# Item / sub-assembly Part no. Qty/assy Ext. qty Parts Type
1 Main Body 7 parts cordless-stick-vacuum-main-body 1× 1 43 assembly
1.1 Handle Housing cordless-stick-vacuum-handle-housing 1× 1 — part
1.2 Power Trigger cordless-stick-vacuum-trigger 1× 1 — part
1.3 Mode Button cordless-stick-vacuum-mode-button 1× 1 — part
1.4 LCD Panel lcd-panel 1× 1 — part
1.5 Main Control Board 4 parts cordless-stick-vacuum-main-board 1× 1 37 assembly
1.5.1 Bare PCB pcb-bare 1× 1 — part
1.5.2 Microcontroller mcu 1× 1 — part
1.5.3 SMD Passive (R/C/L) smd-passives 30× 30 — part
1.5.4 Connector connector 5× 5 — part
1.6 Wire Bundle wire-bundle 1× 1 — part
1.7 Fastener Set fastener-set 1× 1 — part
2 High-Speed Motor Unit 7 parts cordless-stick-vacuum-motor-unit 1× 1 56 assembly
2.1 Stator Assembly 3 parts stator-assembly 1× 1 3 assembly
2.1.1 Stator Core (laminations) stator-core 1× 1 — part
2.1.2 Copper Winding copper-winding 1× 1 — part
2.1.3 Slot Insulation stator-insulation 1× 1 — part
2.2 Rotor Assembly 4 parts rotor-assembly 1× 1 19 assembly
2.2.1 Rotor Shaft rotor-shaft 1× 1 — part
2.2.2 Rotor Core rotor-core 1× 1 — part
2.2.3 Neodymium Magnet neodymium-magnet 16× 16 — part
2.2.4 Ball Bearing ball-bearing 1× 1 — part
2.3 Copper Winding copper-winding 3× 3 — part
2.4 Motor Housing motor-housing 1× 1 — part
2.5 Impeller cordless-stick-vacuum-impeller 1× 1 — part
2.6 Ball Bearing ball-bearing 2× 2 — part
2.7 Motor Controller 5 parts cordless-stick-vacuum-motor-controller 1× 1 27 assembly
2.7.1 Bare PCB pcb-bare 1× 1 — part
2.7.2 Microcontroller mcu 1× 1 — part
2.7.3 Hall Sensor hall-sensor 3× 3 — part
2.7.4 SMD Passive (R/C/L) smd-passives 20× 20 — part
2.7.5 Connector connector 2× 2 — part
3 Cyclone Separator 4 parts cordless-stick-vacuum-cyclone 1× 1 4 assembly
3.1 Cyclone Cones cordless-stick-vacuum-cyclone-cones 1× 1 — part
3.2 Dust Bin cordless-stick-vacuum-dust-bin 1× 1 — part
3.3 Bin Bottom Door cordless-stick-vacuum-bin-door 1× 1 — part
3.4 O-Ring Set oring-set 1× 1 — part
4 Pre-Motor Filter cordless-stick-vacuum-pre-filter 1× 1 — part
5 HEPA Post-Filter cordless-stick-vacuum-post-filter 1× 1 — part
6 Battery Pack 4 parts cordless-stick-vacuum-battery-pack 1× 1 10 assembly
6.1 Li-ion Cell, 18650 li-cell-18650 6× 6 — part
6.2 BMS Board bms-board 1× 1 — part
6.3 Battery Housing cordless-stick-vacuum-battery-housing 1× 1 — part
6.4 Connector connector 2× 2 — part
7 Telescoping Wand cordless-stick-vacuum-wand 1× 1 — part
8 Cleaner Head 7 parts cordless-stick-vacuum-cleaner-head 1× 1 37 assembly
8.1 Head Housing cordless-stick-vacuum-head-housing 1× 1 — part
8.2 Brush Bar cordless-stick-vacuum-brush-bar 1× 1 — part
8.3 Soft Roller cordless-stick-vacuum-soft-roller 1× 1 — part
8.4 Brush Motor 5 parts cordless-stick-vacuum-brush-motor 1× 1 30 assembly
8.4.1 Stator Assembly 3 parts + deeper › stator-assembly 1× 1 3 assembly
8.4.2 Rotor Assembly 4 parts + deeper › rotor-assembly 1× 1 19 assembly
8.4.3 Copper Winding copper-winding 3× 3 — part
8.4.4 Ball Bearing ball-bearing 2× 2 — part
8.4.5 Hall Sensor hall-sensor 3× 3 — part
8.5 Head Wheel cordless-stick-vacuum-head-wheel 2× 2 — part
8.6 Head LED Bar cordless-stick-vacuum-head-led 1× 1 — part
8.7 Connector connector 1× 1 — part
9 Crevice Tool cordless-stick-vacuum-crevice-tool 1× 1 — part
10 Combo Tool cordless-stick-vacuum-combo-tool 1× 1 — part
11 Charging Dock 3 parts cordless-stick-vacuum-charging-dock 1× 1 25 assembly
11.1 Dock Bracket cordless-stick-vacuum-dock-bracket 1× 1 — part
11.2 Dock Charge Board 4 parts cordless-stick-vacuum-dock-board 1× 1 22 assembly
11.2.1 Bare PCB pcb-bare 1× 1 — part
11.2.2 Microcontroller mcu 1× 1 — part
11.2.3 SMD Passive (R/C/L) smd-passives 18× 18 — part
11.2.4 Connector connector 2× 2 — part
11.3 Connector connector 2× 2 — part

Sourcing — likely vendors

Companies that make this · indicative price $50–$1.5k · MOQ & lead are typical
VendorHQSpecialtyMOQLead time
🇺🇸SharkNinja
sharkninja.com ↗ 		Needham, US Floorcare & kitchen 1,000 units 8–12 wks
🇬🇧Dyson
dyson.com ↗ 		Malmesbury, GB Vacuums & hair care 1,000 units 8–12 wks
🇺🇸Bissell
bissell.com ↗ 		Grand Rapids, US Floorcare 1,000 units 8–12 wks
🇺🇸iRobot
irobot.com ↗ 		Bedford, US Robot vacuums 1,000 units 8–12 wks
🇩🇪Kärcher
karcher.com ↗ 		Winnenden, DE Cleaning equipment 1,000 units 8–12 wks
