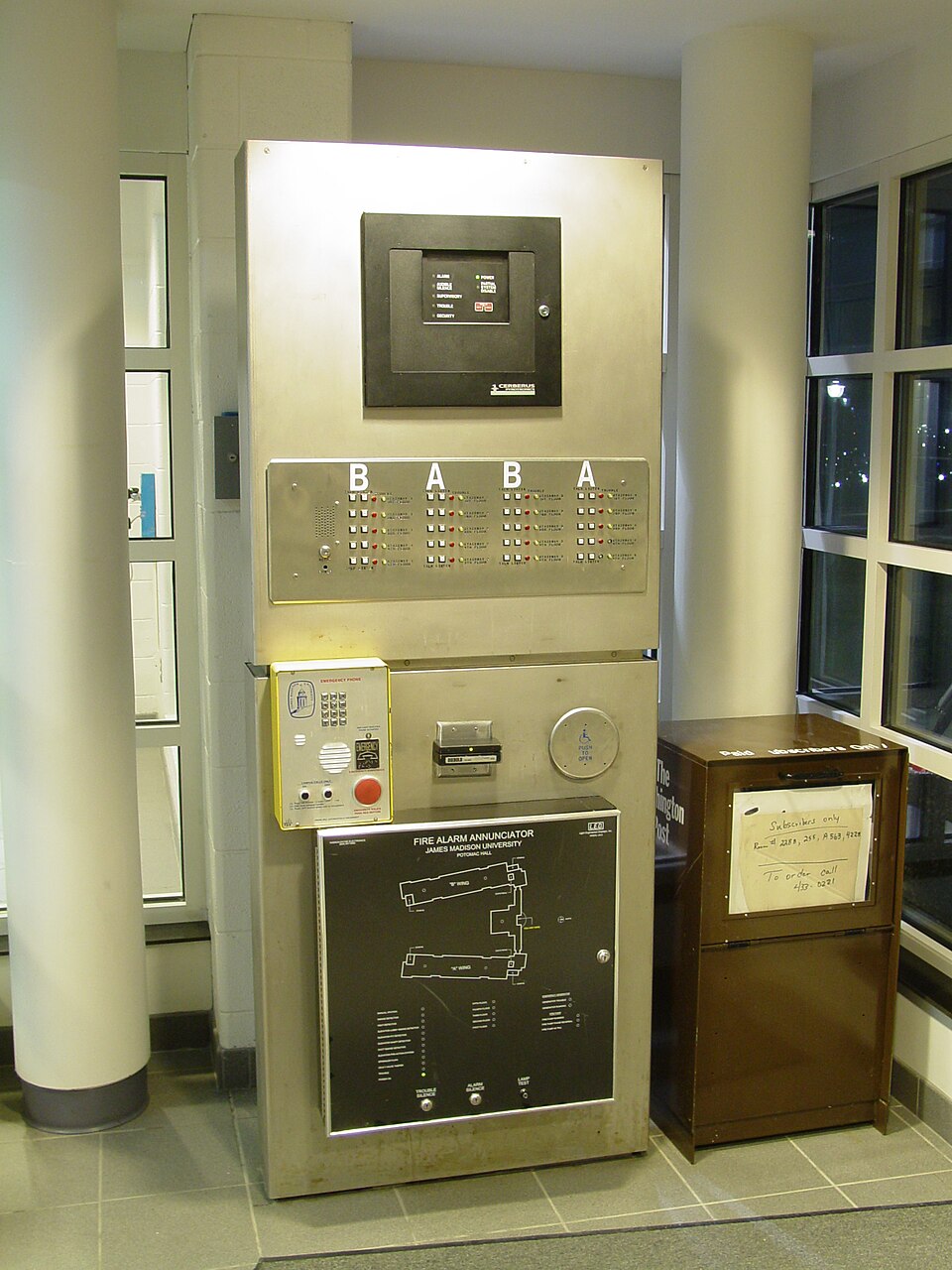

Fire Alarm Control Panel Product
An addressable fire alarm control panel: a steel-cabinet controller running addressable signaling line circuits, notification appliance circuits, backup batteries, and a network communicator, supervising the field detection and notification devices. A full specification article for this item is being written. Meanwhile its bill of materials and connections are below.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labour product / assembly shared across products atomic part related product
Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
12 top-level lines · 49 rows shown · 88 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Cabinet Enclosure 5 parts | fire-alarm-panel-enclosure | 1× | 1 | 5 | assembly |
| 1.1 | Steel Back Box | fire-alarm-panel-backbox | 1× | 1 | — | part |
| 1.2 | Cabinet Door | fire-alarm-panel-door | 1× | 1 | — | part |
| 1.3 | Cam Lock | fire-alarm-panel-lock | 1× | 1 | — | part |
| 1.4 | Dead Front Plate | fire-alarm-panel-dead-front | 1× | 1 | — | part |
| 1.5 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 2 | Main CPU Board 5 parts | fire-alarm-panel-cpu-board | 1× | 1 | 5 | assembly |
| 2.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 2.2 | Compute SoC Module | soc-module | 1× | 1 | — | part |
| 2.3 | Microcontroller | mcu | 1× | 1 | — | part |
| 2.4 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 2.5 | Non-Volatile Memory | fire-alarm-panel-memory | 1× | 1 | — | part |
| 3 | SLC Loop Driver Board 4 parts | fire-alarm-panel-slc-board | 2× | 2 | 7 | assembly |
| 3.1 | Bare PCB | pcb-bare | 1× | 2 | — | part |
| 3.2 | SLC Loop Driver | fire-alarm-panel-slc-driver | 1× | 2 | — | part |
| 3.3 | Loop Isolator | fire-alarm-panel-loop-isolator | 4× | 8 | — | part |
| 3.4 | SMD Passive (R/C/L) | smd-passives | 1× | 2 | — | part |
| 4 | NAC Notification Board 4 parts | fire-alarm-panel-nac-board | 1× | 1 | 10 | assembly |
| 4.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 4.2 | NAC Output Circuit | fire-alarm-panel-nac-circuit | 4× | 4 | — | part |
| 4.3 | Relay | relay | 4× | 4 | — | part |
| 4.4 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 5 | Display Annunciator 5 parts | fire-alarm-panel-annunciator | 1× | 1 | 12 | assembly |
| 5.1 | LCD Panel | lcd-panel | 1× | 1 | — | part |
| 5.2 | Touch Digitizer | touch-digitizer | 1× | 1 | — | part |
| 5.3 | Status LED | fire-alarm-panel-status-led | 8× | 8 | — | part |
| 5.4 | Speaker | speaker | 1× | 1 | — | part |
| 5.5 | Control Keypad | fire-alarm-panel-keypad | 1× | 1 | — | part |
| 6 | Power Supply & Charger 3 parts | fire-alarm-panel-power-supply | 1× | 1 | 3 | assembly |
| 6.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 6.2 | AC-DC Supply & Charger | fire-alarm-panel-charger | 1× | 1 | — | part |
| 6.3 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 7 | 12 V Battery | lv-battery | 2× | 2 | — | part |
| 8 | Communicator Module 4 parts | fire-alarm-panel-communicator | 1× | 1 | 4 | assembly |
| 8.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 8.2 | Dialer / Radio | fire-alarm-panel-dialer | 1× | 1 | — | part |
| 8.3 | Connector | connector | 1× | 1 | — | part |
| 8.4 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 9 | Field Wiring Terminals 2 parts | fire-alarm-panel-terminal-block | 1× | 1 | 5 | assembly |
| 9.1 | Wire Bundle | wire-bundle | 1× | 1 | — | part |
| 9.2 | Connector | connector | 4× | 4 | — | part |
| 10 | Field Devices 5 parts | fire-alarm-panel-field-devices | 1× | 1 | 26 | assembly |
| 10.1 | Addressable Smoke Detector | fire-alarm-panel-smoke-detector | 8× | 8 | — | part |
| 10.2 | Addressable Heat Detector | fire-alarm-panel-heat-detector | 4× | 4 | — | part |
| 10.3 | Manual Pull Station | fire-alarm-panel-pull-station | 4× | 4 | — | part |
| 10.4 | Horn/Strobe | fire-alarm-panel-horn-strobe | 6× | 6 | — | part |
| 10.5 | Monitor/Control Module | fire-alarm-panel-monitor-module | 4× | 4 | — | part |
| 11 | Ground-Fault Module | fire-alarm-panel-ground-fault | 1× | 1 | — | part |
| 12 | Fastener Set | fastener-set | 1× | 1 | — | part |
