Playpen Product

Overview

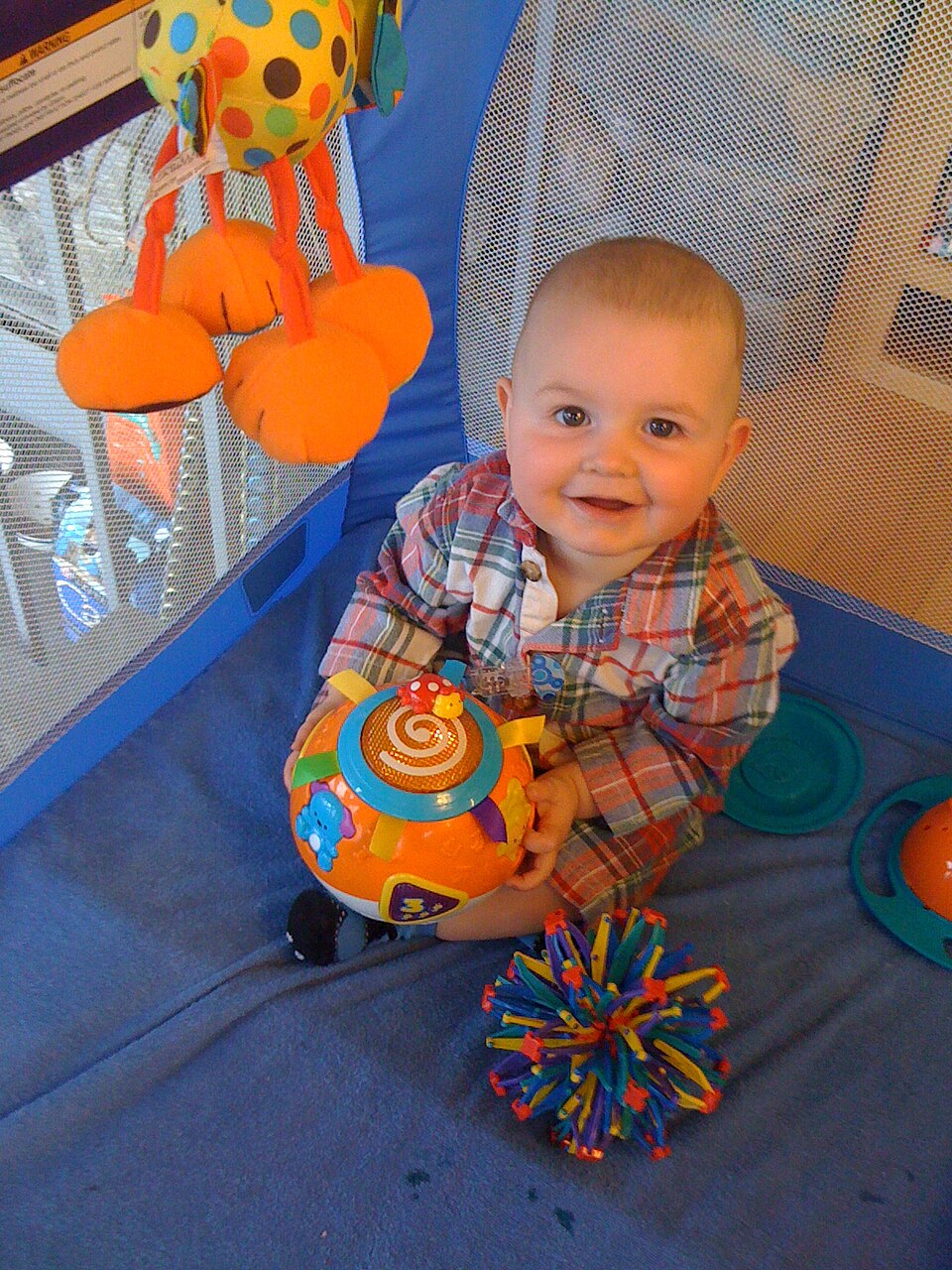

A playpen is a temporary enclosure that confines a mobile baby or toddler to a safe space while allowing the caregiver to attend to other tasks. The Collapsible Frame is a collapsible aluminum skeleton that expands to a square or rectangular footprint, with Mesh Wall Panel on all four sides providing visual transparency while containing the child. The Mattress Base Assembly cushions the floor, and the Corner Locking Hub secure the frame when open, preventing collapse.

The design prioritizes portability and speed of setup: a caregiver can open a playpen and place a child inside in under a minute, making it practical for travel, visits to friends, or temporary play areas during errands.

Frame structure and mechanics

The Collapsible Frame consists of Aluminum Frame Tube segments—aluminum tubes arranged in a square or rectangular perimeter, connected at corners by Frame Joint. Horizontal Cross Brace elements add rigidity and prevent the frame from racking (twisting out of square).

The frame collapses by folding at Frame Hinge points. In the simplest designs, the two longer sides of the rectangle fold inward toward the center, and the two shorter sides rotate 90 degrees to lie parallel with the longer sides, creating a long flat package. In other designs, all four sides fold concertina-style, compressing into a compact cylinder.

The playpen-locking-hub is the mechanism preventing collapse during use. As the frame is pulled open to full size, the corner joints Frame Joint move into specific positions; at that point, a spring-loaded Hub Latch engages, preventing the joint from closing. The Hub Release Button must be pressed to disengage the latch, allowing the frame to fold.

Mesh walls and breathability

The Mesh Wall Panel are made of a fine polyester Mesh Fabric weave with no large holes—babies cannot poke fingers through or catch clothing. The mesh is typically stitched to a fabric Mesh Border along the edges, which then attaches to the frame using Mesh Fastener fasteners (velcro strips or snap buttons) along the top and bottom rails.

The mesh provides several benefits: it is breathable, allowing air circulation and preventing pockets of still air that could overheat the child; it is transparent, allowing the caregiver to see inside from any angle; it is washable, which is important for hygiene; and it is soft, posing minimal injury risk if the child falls against it.

The Top Rail Padding is a soft trim along the top frame rail, preventing the child from striking the hard aluminum edge if bouncing or climbing.

Mattress base and comfort

The Mattress Base Assembly is a cushioned insert covering the bottom of the playpen. The Mattress Cover is typically quilted or padded fabric, and underneath is Mattress Foam, one or more layers of cushioning foam (typically 2–3 cm thick). The Mattress Bottom is a non-slip material (often rubber or textured plastic) in contact with the floor, preventing the mattress from sliding and creating a trip hazard.

The Mattress Fastener straps (typically webbing sewn to the mattress and bolted to the frame) keep the mattress centered and prevent it from bunching or folding.

The firmness of the mattress is balanced: too soft, and the child sinks in, increasing risk of positional asphyxia (particularly for infants); too firm, and impact forces from tumbles are not adequately cushioned. Most playpens use closed-cell or partially closed-cell foam.

Portability and storage

The Carrying Bag is typically nylon or canvas, with Carry Strap handles and a Bag Zipper closure. When the frame is folded and the mattress is rolled or folded compactly, the entire assembly fits in the bag, which is roughly the size of a large umbrella or small tent bag.

The bag has Bag Padding inside to protect the frame from denting and to reduce noise (a folded playpen frame can be noisy and may startle the baby if unfolded abruptly in a quiet room).

The total weight (5–7 kg) is light enough for most parents to carry one-handed while holding a toddler in the other arm, though manufacturers typically recommend two-handed carrying.

Safety considerations

The playpen is designed to confine the child but not to restrain—there are no latches on the child. Once inside, a mobile baby can move freely, crawl, and climb. The height of the walls (typically 60–75 cm) is enough to prevent children under 12 months from climbing out but may not stop a determined toddler who is over 18 months.

The Mesh Wall Panel are not escape-proof; a clever toddler can attempt to climb or pull the fabric away from fasteners. The Corner Locking Hub are designed to prevent accidental collapse but are not childproof—a strong toddler who understands cause and effect might figure out how to press the Hub Release Button and fold the playpen.

Standards (EN 12221 for European markets, ASTM F406 for North America) mandate minimum wall height, mesh strength, locking hub reliability, and mattress firmness, among other criteria. Certified playpens have been tested to withstand the force of a child pushing and climbing.

Hygiene and maintenance

The Mesh Fabric is typically machine-washable on a delicate cycle. The Mattress Cover is usually removable and also washable. The aluminum frame does not rust and can be wiped down with a damp cloth. Over time, the playpen-locking-hub may accumulate dust or lint and become sticky; a dry cloth or compressed air usually restores smooth operation.

The Mesh Fastener velcro or snaps can wear over time, requiring replacement fasteners (often available from the manufacturer). The Frame Hinge can loosen slightly, and a gentle squeeze with pliers can re-tighten the joint.
