NAS Server

Overview

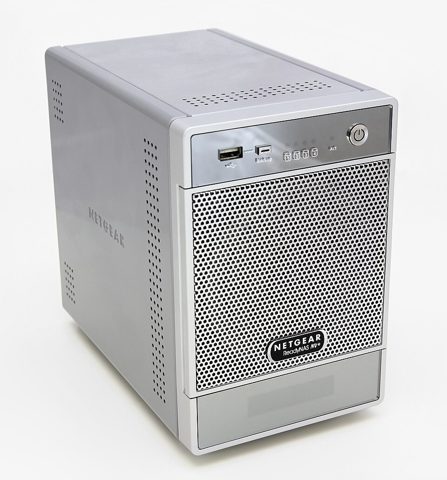

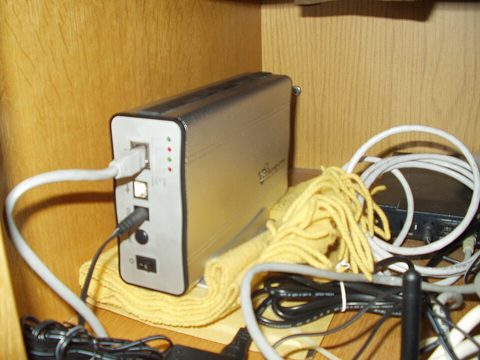

A network-attached storage appliance is a dedicated file server in a compact tower. Four hard drives pool into a fault-tolerant volume that every machine on the network can mount, with NVMe SSDs acting as a fast cache in front of the spinning disks. Hot-swap trays let a failed drive be replaced without powering down.

The unit is a sheet-metal Chassis holding hot-swap trays. The Motherboard runs the operating system, the Drive Backplane connects the drives, four 3.5" Hard Drive units provide bulk capacity, and two NVMe Cache SSD modules cache hot data. A Network Interface Card handles 10-gigabit networking and the Front Status Panel shows status.

How it works

Each drive slides into a tray that mates blindly with the backplane, which carries combined SATA data and power to every bay. The motherboard's SATA Controller IC presents the four disks to the SoC, where storage software stripes them into a RAID set: parity RAID spreads data and redundancy across all drives so one disk can fail without data loss, and the array rebuilds onto a replacement once inserted.
