Rack Server (2U)

Overview

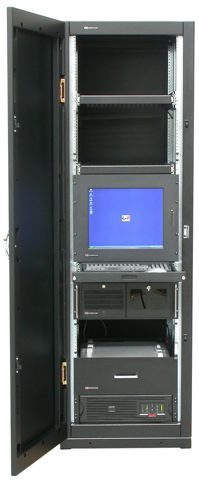

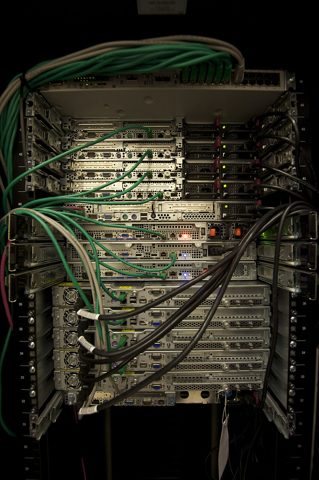

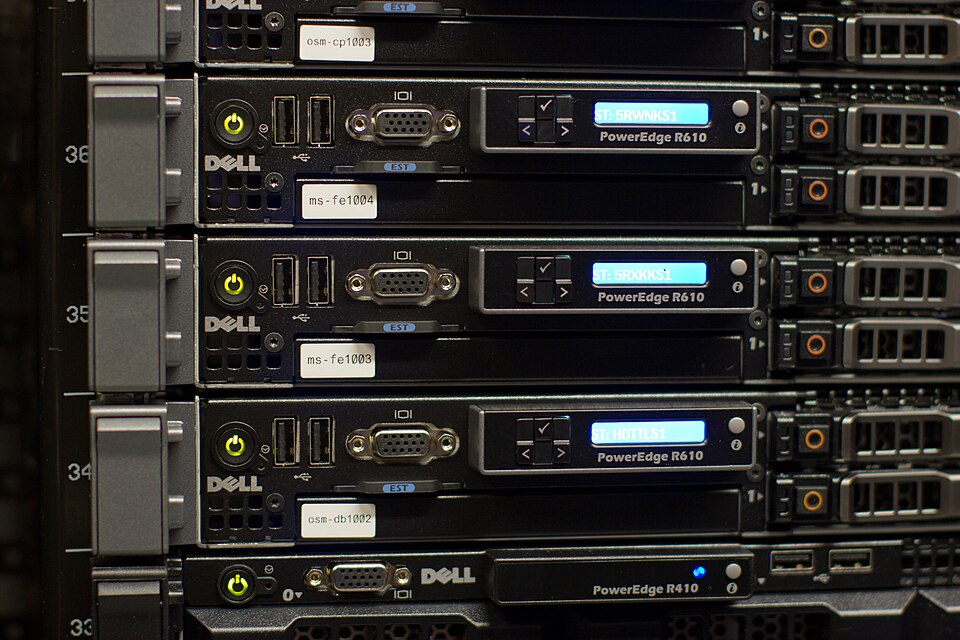

A rack server is a computer built to live in a data-center rack rather than on a desk. The 2U format means it is two rack units tall, so dozens fit in a single cabinet. Density drives every design choice: components pack tightly front to back, airflow runs in one straight path, and almost every serviceable part slides out without tools so a technician can swap it while neighboring servers keep running.

The machine starts with the Chassis & Rails, a folded sheet-metal box on Slide Rail rails. Inside, the Server Motherboard carries two CPUs, registered memory, and a BMC (Baseboard Mgmt Controller) for lights-out management. Storage rides in the Drive Backplane & Bays, populated with Solid-State Drive and Hard Disk Drive units and driven by a RAID / HBA Card. Air is moved by the Cooling Fan Wall, expansion cards mount on PCIe Riser cages, and two hot-swap Power Supply modules keep the server alive if one fails.

How it works

Cold air enters the front, crosses the drives, passes the fan wall, and exhausts hot at the rear. The dual-socket motherboard runs the workload; its baseboard management controller is a second tiny computer that watches temperatures, controls fan speed, and lets an administrator power-cycle or reinstall the server remotely even when the main system is off.

Data lands on the backplane, which fans a few controller links out to every bay through a SAS expander, so any drive is reachable from the RAID / HBA Card. That card stripes data across drives for speed and parity for safety, holding recent writes in cache that a supercapacitor flushes to flash on power loss. The PCIe Riser turns the board's vertical slots sideways to fit under the 2U lid, where Network Interface Card cards connect the server to the network. Redundancy is the theme throughout: two power supplies, paired fans, and tool-less carriers mean a single failure is a hot-swap, not an outage.
