Rotary Heat Wheel Product

Overview

A rotary heat wheel (or rotary heat exchanger) is a counter-flow device that recovers sensible and latent energy from exhaust air and transfers it to incoming fresh air in HVAC systems. The core element—a rotating drum packed with corrugated aluminum or silica-ceramic matrix—alternates between passing through warm exhaust air and cool supply air. As the rotor spins at 10–20 rpm, thermal energy and moisture transfer into the matrix material, then release into the opposite air stream on the next rotation. This passive recovery mechanism requires only low motor power (0.5–2 kW) and achieves sensible effectiveness of 70–85% and latent (moisture) effectiveness of 50–70%, making it ideal for climates with large seasonal temperature and humidity swings.

Rotary heat wheels are classified as enthalpy (or energy) exchangers because they transfer both temperature and moisture. A mechanical purge sector prevents exhaust odors and contaminants from bleeding into the supply air, critical for indoor air quality compliance. The rotor matrix is typically aluminum for speed and cost in residential/light commercial units, or silica-ceramic for chemical resistance in industrial applications. Bearing design and seal integrity directly impact system leakage (target <5%) and long-term reliability.

How it works

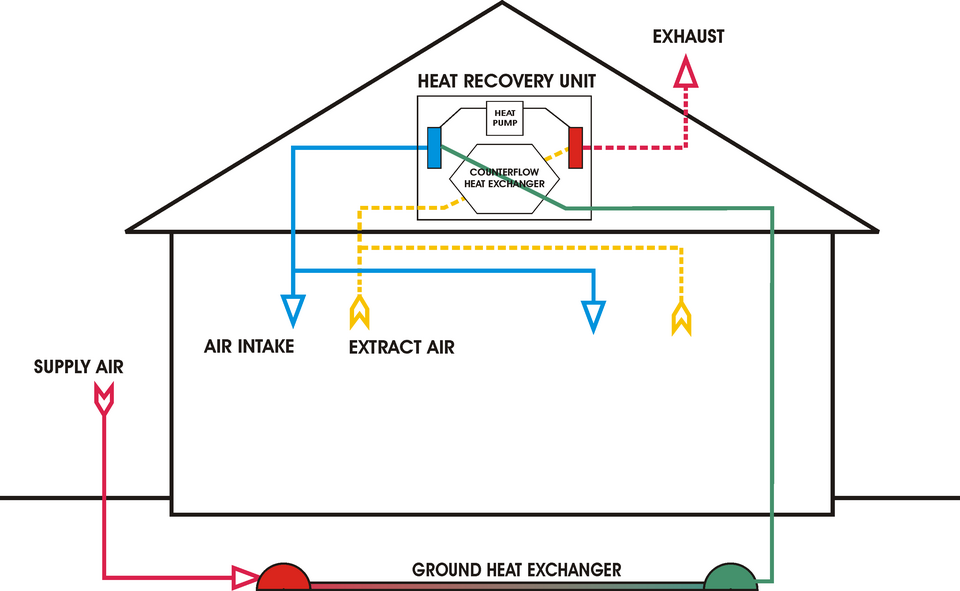

Air enters the unit through two separate inlet plenums: one from the building exhaust (stale air) and one from outside (fresh but unconditioned). As the motor drives the Rotor Matrix at constant speed, the matrix material passes through the hot exhaust stream, absorbing sensible heat and latent moisture into the porous structure. When the same matrix surface rotates into the cold supply air path, it releases the stored energy, pre-warming and pre-humidifying the incoming outside air before it enters the HVAC system.

The Seal Assembly are critical: edge seals along the perimeter prevent bypass leakage, while the Purge Sector Assembly sector uses a rotating blade to physically sweep across the matrix surface facing the exhaust inlet, shedding any moisture or odor that might otherwise carry over into the supply air. This purge action runs continuously during rotation and is passive—no additional valve logic is required.

Power is delivered from the Drive Motor Assembly through a Drive Belt Assembly drive system with spring-loaded tensioner. Belt drives are preferred over direct-drive because they allow flexible speed reduction (typically 3:1 to 5:1) and simplify motor selection; a 0.5–2 kW ECM or AC motor can operate at 3600 rpm, while the rotor idles at 10–20 rpm. The Drive Shaft is supported by Bearing Block Assembly at each end, mounted inside a Aluminum Casing that also houses all inlet/outlet flanges and filter racks.

Maintenance and Service

The Service Doors provide access for annual inspection. The rotor matrix accumulates dust and pollen over time; periodic dry brushing or low-pressure wash extends operating life to 15–20 years. Pre-filters (outside the wheel) are standard to reduce loading.

Motors and [[rotary-heat-exchanger-belt|belts]] are the most common maintenance items, typically replaced every 5–7 years in continuous operation. Bearing [[oring-set|seals]] should be checked during service to prevent grease leakage and contamination.

Standards and Applications

Common in LEED and Passive House designs where energy recovery is a core ventilation strategy. Typical capacities range from 500 CFM (small residential) to 5000 CFM (large commercial/industrial). ASHRAE 90.1 mandates energy recovery on systems >5000 CFM in certain climate zones. Rotary wheels compete with plate heat exchangers (lower sensible-only recovery, lower cost) and membrane desiccant wheels (better humidity control, higher cost and maintenance).
