Violin Product

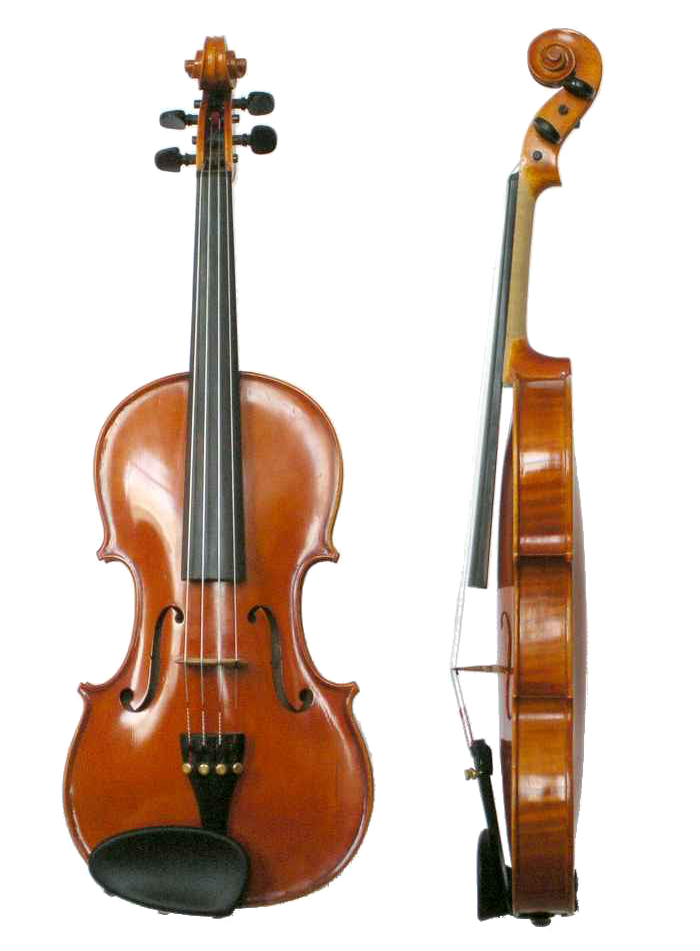

A full-size acoustic violin with bow, built from carved tonewoods and fitted with four strings. A full specification article for this item is being written. Meanwhile its bill of materials and connections are below.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labour product / assembly shared across products atomic part related product
Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
9 top-level lines · 34 rows shown · 47 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Body Assembly 8 parts | violin-body | 1× | 1 | 19 | assembly |
| 1.1 | Spruce Top 2 parts | violin-top | 1× | 1 | 2 | assembly |
| 1.1.1 | Spruce Top Plate | violin-top-plate | 1× | 1 | — | part |
| 1.1.2 | Bass Bar | violin-bass-bar | 1× | 1 | — | part |
| 1.2 | Maple Back Plate | violin-back | 1× | 1 | — | part |
| 1.3 | Maple Rib | violin-rib | 6× | 6 | — | part |
| 1.4 | Corner / End Block | violin-block | 6× | 6 | — | part |
| 1.5 | Purfling | violin-purfling | 1× | 1 | — | part |
| 1.6 | Varnish Finish | violin-varnish | 1× | 1 | — | part |
| 1.7 | Sound Post | violin-sound-post | 1× | 1 | — | part |
| 1.8 | Bridge | violin-bridge | 1× | 1 | — | part |
| 2 | Neck Assembly 3 parts | violin-neck | 1× | 1 | 3 | assembly |
| 2.1 | Maple Neck & Scroll | violin-neck-blank | 1× | 1 | — | part |
| 2.2 | Ebony Fingerboard | violin-fingerboard | 1× | 1 | — | part |
| 2.3 | Nut | violin-nut | 1× | 1 | — | part |
| 3 | Ebony Tuning Peg | violin-peg | 4× | 4 | — | part |
| 4 | Tailpiece Assembly 3 parts | violin-tailpiece | 1× | 1 | 6 | assembly |
| 4.1 | Tailpiece Body | violin-tailpiece-body | 1× | 1 | — | part |
| 4.2 | Fine Tuner | violin-fine-tuner | 4× | 4 | — | part |
| 4.3 | Tailgut | violin-tailgut | 1× | 1 | — | part |
| 5 | Chin Rest Assembly 2 parts | violin-chinrest | 1× | 1 | 2 | assembly |
| 5.1 | Chin Rest Cup | violin-chinrest-cup | 1× | 1 | — | part |
| 5.2 | Chin Rest Clamp | violin-chinrest-clamp | 1× | 1 | — | part |
| 6 | Endpin Button | violin-endpin | 1× | 1 | — | part |
| 7 | Violin String | violin-string | 4× | 4 | — | part |
| 8 | Bow Assembly 7 parts | violin-bow | 1× | 1 | 7 | assembly |
| 8.1 | Pernambuco Stick | violin-bow-stick | 1× | 1 | — | part |
| 8.2 | Ebony Frog | violin-bow-frog | 1× | 1 | — | part |
| 8.3 | Frog Eyelet | violin-bow-eyelet | 1× | 1 | — | part |
| 8.4 | Adjuster Screw | violin-bow-screw | 1× | 1 | — | part |
| 8.5 | Horsehair | violin-bow-hair | 1× | 1 | — | part |
| 8.6 | Grip & Lapping | violin-bow-lapping | 1× | 1 | — | part |
| 8.7 | Tip Plate | violin-bow-tip-plate | 1× | 1 | — | part |
| 9 | Rosin | violin-rosin | 1× | 1 | — | part |
