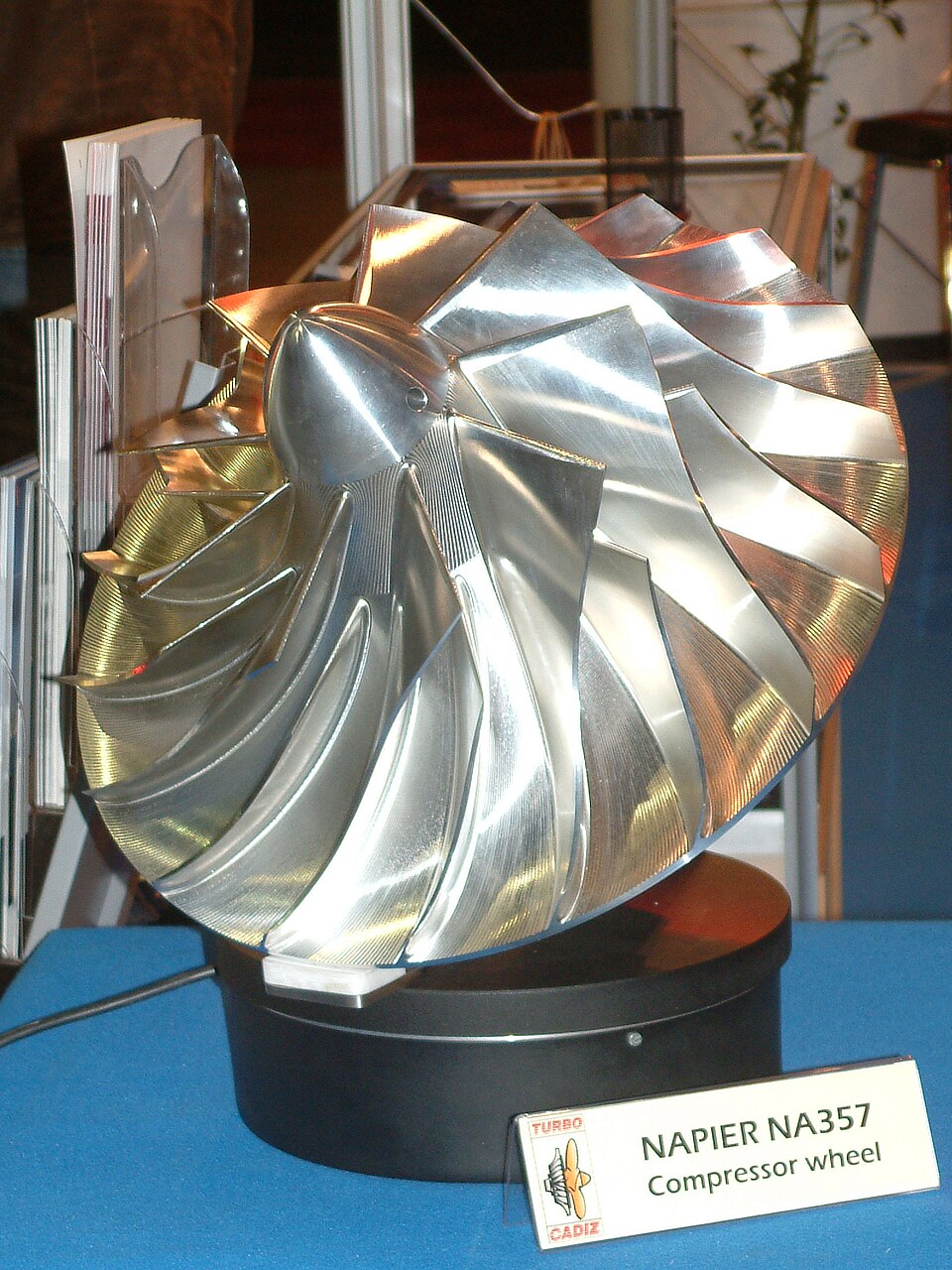

Centrifugal Compressor

Product

Overview

A centrifugal compressor raises the pressure of a continuous gas stream by spinning it through one or more impellers and then converting that velocity into pressure in stationary diffusers. It is the dominant machine for high-flow, moderate-ratio compression duties, air separation, refrigeration, refinery and petrochemical process gas, and large plant-air systems, where a positive-displacement machine would be too bulky or too pulsating. The integrally geared layout used here mounts impellers on the ends of high-speed pinions driven from a single bull gear, so each stage can run at its own optimum speed.

Compression is dynamic rather than volumetric: the Centrifugal Impeller accelerates gas radially outward, and the Diaphragm passages decelerate it to recover pressure before the next stage. Because the machine has no rubbing compression elements, it runs oil-free on the process side and tolerates very high speeds, but it must be kept clear of surge, the unstable flow reversal that occurs when discharge demand exceeds what the impellers can deliver.

How it works

A Driver Motor turns the Integral Gearbox, whose bull gear and pinion step the speed up to the tens of thousands of rpm the impellers need. The Rotor Assembly carries the impeller stack and a Balance Piston that offsets the axial thrust the aerodynamic loading produces; whatever thrust remains is taken by the thrust bearing in the Bearing Set, while tilting-pad journal bearings hold the rotor radially. Gas enters through the suction side of the Process Nozzles, passes the adjustable inlet guide vanes, and is compressed stage by stage inside the horizontally split Compressor Casing.

Keeping the high-speed shaft sealed and lubricated is the job of two support systems. The Seal System uses non-contacting dry-gas seals at each shaft penetration, fed clean buffer gas so process gas cannot leak out along the shaft. The Lube Oil System supplies cooled, filtered oil to the bearings and gear mesh from a dedicated console with a standby pump.

Protection against surge is continuous. The Anti-Surge System system measures flow and the pressure rise across the machine and, as the operating point approaches the surge line, opens a fast recycle valve to route discharge gas back to suction, raising throughput and pulling the machine back to a stable point. The whole train sits on a fabricated Baseplate / Skid that aligns the motor, gearbox and casing and carries the piping loads.

Centrifugal Compressor parts and their functions

10 top-level parts · 338 parts in total · full bill of materials below
Centrifugal Compressor parts diagram: 1 compressor casing, 2 rotor assembly, 3 bearing set, 4 seal system, 5 integral gearbox, 6 driver motor, 7 lube oil system, 8 anti-surge system, 9 process nozzles, 10 baseplate / skid. 338 parts in 10 top-level items.
Centrifugal Compressor parts diagram. Numbers match the table below; each box is one top-level part or assembly with what it contains.
#PartQtyWhat it does
1 Compressor Casing 6 parts 1× Horizontally split casing + diaphragms
2 Rotor Assembly 5 parts 1× Impellers, shaft, balance piston
3 Bearing Set 4 parts 1× Radial journal bearings plus a double-acting thrust bearing.
4 Seal System 4 parts 1× Dry-gas shaft seals with a separation gas and labyrinth interstage seals.
5 Integral Gearbox 5 parts 1× Integrally geared bull/pinion
6 Driver Motor 5 parts 1× Large 2-pole induction motor driving the gearbox input.
7 Lube Oil System 5 parts 1× Pressurized oil console feeding bearings and gears.
8 Anti-Surge System 4 parts 1× Recycle valve + control
9 Process Nozzles 3 parts 1× Inlet / discharge nozzles
10 Baseplate / Skid 1× Fabricated steel skid carrying compressor, gearbox and motor.

3D model

No 3D model yet. Have a CAD file of this? Add a 3D model. STL renders right on this page; STEP, FreeCAD, and OpenSCAD sources are welcome too (openly licensed, like all 3D models on BOMwiki).

Build & assembly graph

expand / collapse · shared sub-assemblies converge · links to related products · est. labour
product / assembly shared across products atomic part related product

Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.

Bill of materials for Centrifugal Compressor

10 top-level lines · 73 rows shown · 338 parts total · indented to 3 levels
# Item / sub-assembly Part no. Qty/assy Ext. qty Parts Type
1 Compressor Casing 6 parts centrifugal-compressor-casing 1× 1 9 assembly
1.1 Lower Casing Half centrifugal-compressor-casing-lower 1× 1 · part
1.2 Upper Casing Half centrifugal-compressor-casing-upper 1× 1 · part
1.3 Diaphragm centrifugal-compressor-diaphragm 4× 4 · part
1.4 Inlet Guide Vanes centrifugal-compressor-inlet-guide-vane 1× 1 · part
1.5 Fastener Set fastener-set 1× 1 · part
1.6 O-Ring Set oring-set 1× 1 · part
2 Rotor Assembly 5 parts centrifugal-compressor-rotor 1× 1 9 assembly
2.1 Compressor Shaft centrifugal-compressor-shaft 1× 1 · part
2.2 Centrifugal Impeller centrifugal-compressor-impeller 4× 4 · part
2.3 Balance Piston centrifugal-compressor-balance-piston 1× 1 · part
2.4 Shaft Sleeve centrifugal-compressor-shaft-sleeve 2× 2 · part
2.5 Thrust Collar centrifugal-compressor-thrust-collar 1× 1 · part
3 Bearing Set 4 parts centrifugal-compressor-bearing-set 1× 1 7 assembly
3.1 Tilting-Pad Journal Bearing centrifugal-compressor-journal-bearing 2× 2 · part
3.2 Thrust Bearing centrifugal-compressor-thrust-bearing 1× 1 · part
3.3 Ball Bearing ball-bearing 2× 2 · part
3.4 Bearing Housing centrifugal-compressor-bearing-housing 2× 2 · part
4 Seal System 4 parts centrifugal-compressor-seal-system 1× 1 13 assembly
4.1 Dry-Gas Seal centrifugal-compressor-dry-gas-seal 2× 2 · part
4.2 Labyrinth Seal centrifugal-compressor-labyrinth-seal 4× 4 · part
4.3 Seal Gas Panel 3 parts centrifugal-compressor-seal-gas-panel 1× 1 6 assembly
4.3.1 Seal Gas Filter centrifugal-compressor-gas-filter 2× 2 · part
4.3.2 Control Valve centrifugal-compressor-control-valve 2× 2 · part
4.3.3 Pressure Sensor pressure-sensor 2× 2 · part
4.4 O-Ring Set oring-set 1× 1 · part
5 Integral Gearbox 5 parts centrifugal-compressor-gearbox 1× 1 9 assembly
5.1 Gearbox Housing gearbox-housing 1× 1 · part
5.2 Helical Gear Pair gear-pair 1× 1 · part
5.3 Ball Bearing ball-bearing 4× 4 · part
5.4 Oil Seal oil-seal 2× 2 · part
5.5 Gear Oil centrifugal-compressor-gear-oil 1× 1 · part
6 Driver Motor 5 parts centrifugal-compressor-driver-motor 1× 1 26 assembly
6.1 Stator Assembly 3 parts stator-assembly 1× 1 3 assembly
6.1.1 Stator Core (laminations) stator-core 1× 1 · part
6.1.2 Copper Winding copper-winding 1× 1 · part
6.1.3 Slot Insulation stator-insulation 1× 1 · part
6.2 Rotor Assembly 4 parts rotor-assembly 1× 1 19 assembly
6.2.1 Rotor Shaft rotor-shaft 1× 1 · part
6.2.2 Rotor Core rotor-core 1× 1 · part
6.2.3 Neodymium Magnet neodymium-magnet 16× 16 · part
6.2.4 Ball Bearing ball-bearing 1× 1 · part
6.3 Copper Winding copper-winding 1× 1 · part
6.4 Motor Housing motor-housing 1× 1 · part
6.5 Ball Bearing ball-bearing 2× 2 · part
7 Lube Oil System 5 parts centrifugal-compressor-lube-system 1× 1 30 assembly
7.1 Lube Oil Pump 4 parts centrifugal-compressor-oil-pump 1× 1 25 assembly
7.1.1 Stator Assembly 3 parts + deeper › stator-assembly 1× 1 3 assembly
7.1.2 Rotor Assembly 4 parts + deeper › rotor-assembly 1× 1 19 assembly
7.1.3 Pump Gear Rotor centrifugal-compressor-gear-rotor 2× 2 · part
7.1.4 Oil Seal oil-seal 1× 1 · part
7.2 Oil Cooler centrifugal-compressor-oil-cooler 1× 1 · part
7.3 Oil Filter centrifugal-compressor-oil-filter 2× 2 · part
7.4 Oil Reservoir centrifugal-compressor-oil-reservoir 1× 1 · part
7.5 Turbine Lube Oil centrifugal-compressor-lube-oil 1× 1 · part
8 Anti-Surge System 4 parts centrifugal-compressor-anti-surge 1× 1 231 assembly
8.1 Anti-Surge Recycle Valve 3 parts centrifugal-compressor-recycle-valve 1× 1 3 assembly
8.1.1 Valve Body centrifugal-compressor-valve-body 1× 1 · part
8.1.2 Valve Actuator centrifugal-compressor-valve-actuator 1× 1 · part
8.1.3 O-Ring Set oring-set 1× 1 · part
8.2 Surge Controller 5 parts centrifugal-compressor-controller 1× 1 225 assembly
8.2.1 Bare PCB pcb-bare 1× 1 · part
8.2.2 Microcontroller mcu 2× 2 · part
8.2.3 LCD Panel lcd-panel 1× 1 · part
8.2.4 Touch Digitizer touch-digitizer 1× 1 · part
8.2.5 SMD Passive (R/C/L) smd-passives 220× 220 · part
8.3 Flow Meter centrifugal-compressor-flow-sensor 1× 1 · part
8.4 Pressure Sensor pressure-sensor 2× 2 · part
9 Process Nozzles 3 parts centrifugal-compressor-nozzles 1× 1 3 assembly
9.1 Inlet Nozzle centrifugal-compressor-inlet-nozzle 1× 1 · part
9.2 Discharge Nozzle centrifugal-compressor-discharge-nozzle 1× 1 · part
9.3 Fastener Set fastener-set 1× 1 · part
10 Baseplate / Skid centrifugal-compressor-baseplate 1× 1 · part
