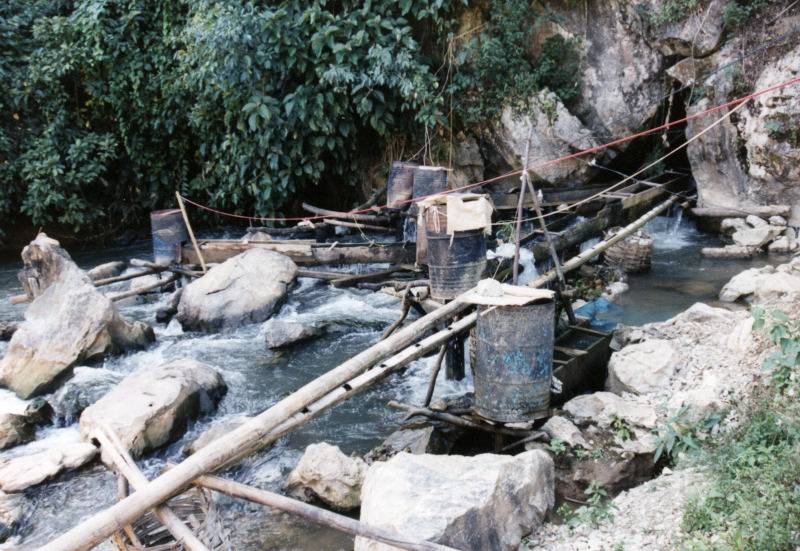

Micro Hydro Turbine Product
Overview
A micro hydro turbine converts the energy of falling water into electricity at scales from a few kilowatts to about 100 kW, enough for a farm, a small factory, or a village mini-grid. Unlike solar or wind, a stream with adequate flow delivers power 24 hours a day, so capacity factors of 50-90% are normal and a 10 kW plant can produce as much annual energy as 40-60 kW of solar panels.
Power available is simply P = ρ·g·Q·H·η: water density times gravity times flow times head times efficiency. A site with 100 m of head and 20 L/s of flow offers about 20 kW gross, of which a well-built plant delivers 60-75% as electricity at the wire. The head is collected by an intake upstream and brought to the powerhouse in a penstock pipe; everything described here begins where that pipe ends.
The Pelton runner
For heads above roughly 30 m the impulse turbine of choice is the Pelton wheel. In the Penstock Interface, the Jet Nozzle converts the full pressure head into a jet moving at up to 100 m/s, the velocity given by √(2gH). The jet strikes the splitter ridge of each Pelton Bucket on the Turbine Runner, divides into two sheets, and is turned through nearly 180 degrees. Maximum energy transfer occurs when the bucket moves at almost half the jet speed, which fixes the runner rpm for a given head and Runner Disc diameter; designers pick the diameter so the machine runs at 750, 1,000, or 1,500 rpm for direct coupling to a standard generator. Peak hydraulic efficiency reaches 88-91%, and unlike reaction turbines a Pelton holds high efficiency down to small fractions of rated flow, valuable on streams that shrink in summer. For lower heads with more flow, the same architecture is built around a Francis, crossflow, or propeller runner instead.
Flow control and governing
An off-grid plant must hold 50 or 60 Hz exactly while consumer load swings constantly. Mechanical governing alone is too slow and expensive at this scale, so the standard solution is the Electronic Load Controller: an electronic load controller that watches frequency and diverts whatever power the consumers are not using into the Ballast Load Bank resistor bank. The turbine then always runs at constant full load, and frequency stays within ±0.5 Hz with no moving parts in the control loop.
Water-side control still exists for efficiency and protection. Each nozzle contains a Spear Valve, a needle moved axially by a Servo Motor that varies jet diameter from 10% to 100% flow so dry-season water is not wasted into the ballast. On sudden load rejection, the Jet Deflector swings into the jet within a second, cutting torque immediately, while the spear closes over tens of seconds; closing fast would slam the long water column in the penstock and create destructive water hammer. The Main Inlet Valve isolates the machine entirely for maintenance, and a Pressure Sensor watches penstock pressure for burst or blockage. Every rotating part is nonetheless sized for runaway, the roughly 1.8-times-rated speed the runner reaches if all load disappears with jets open.
Generator and shaftline
Shaft power crosses the Flexible Coupling to the Generator. Modern micro hydro favors permanent-magnet machines with Neodymium Magnet rotor poles for efficiency above 90% even at partial load; synchronous machines with brushless exciters remain common where grid connection requires voltage control. The Shaftline runs the stainless Main Shaft in two Ball Bearing pillow blocks, protected by Oil Seal glands and a Water Flinger that throws spray clear, since bearing water ingress is the dominant micro-hydro failure mode. Spent water falls through the Casing Shell at atmospheric pressure and leaves by the Tailrace Flange; a Pelton runner must stay above tailwater level, so unlike a reaction turbine it sacrifices the last few meters of head below the nozzles.
Electrical plant
The Control Panel panel carries the Main Breaker, Current Transformer transformers on each phase, and protection relays for over/under voltage and frequency, overcurrent, and reverse power. Grid-tied plants synchronize automatically and export under the local interconnection rules; island plants feed the mini-grid directly with the ELC holding frequency. A plant controller logs head, flow, output, and bearing temperature, and a well-maintained machine runs 30-50 years, with Pelton Bucket replacement every decade or two on silt-laden rivers the main wear item.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labourTap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
9 top-level lines · 62 rows shown · 159 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Turbine Runner 5 parts | small-hydro-turbine-runner | 1× | 1 | 22 | assembly |
| 1.1 | Pelton Bucket | small-hydro-turbine-bucket | 18× | 18 | — | part |
| 1.2 | Runner Disc | small-hydro-turbine-runner-disc | 1× | 1 | — | part |
| 1.3 | Runner Hub | small-hydro-turbine-runner-hub | 1× | 1 | — | part |
| 1.4 | Balance Weights | small-hydro-turbine-balance-weights | 1× | 1 | — | part |
| 1.5 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 2 | Penstock Interface 6 parts | small-hydro-turbine-penstock-interface | 1× | 1 | 7 | assembly |
| 2.1 | Main Inlet Valve | small-hydro-turbine-inlet-valve | 1× | 1 | — | part |
| 2.2 | Distributor Manifold | small-hydro-turbine-manifold | 1× | 1 | — | part |
| 2.3 | Jet Nozzle | small-hydro-turbine-nozzle | 2× | 2 | — | part |
| 2.4 | Pressure Sensor | pressure-sensor | 1× | 1 | — | part |
| 2.5 | Drain Valve | small-hydro-turbine-drain-valve | 1× | 1 | — | part |
| 2.6 | O-Ring Set | oring-set | 1× | 1 | — | part |
| 3 | Generator 7 parts | small-hydro-turbine-generator | 1× | 1 | 43 | assembly |
| 3.1 | Stator Assembly 3 parts | stator-assembly | 1× | 1 | 3 | assembly |
| 3.1.1 | Stator Core (laminations) | stator-core | 1× | 1 | — | part |
| 3.1.2 | Copper Winding | copper-winding | 1× | 1 | — | part |
| 3.1.3 | Slot Insulation | stator-insulation | 1× | 1 | — | part |
| 3.2 | Rotor Assembly 4 parts | rotor-assembly | 1× | 1 | 19 | assembly |
| 3.2.1 | Rotor Shaft | rotor-shaft | 1× | 1 | — | part |
| 3.2.2 | Rotor Core | rotor-core | 1× | 1 | — | part |
| 3.2.3 | Neodymium Magnet | neodymium-magnet | 16× | 16 | — | part |
| 3.2.4 | Ball Bearing | ball-bearing | 1× | 1 | — | part |
| 3.3 | Neodymium Magnet | neodymium-magnet | 16× | 16 | — | part |
| 3.4 | Copper Winding | copper-winding | 1× | 1 | — | part |
| 3.5 | Ball Bearing | ball-bearing | 2× | 2 | — | part |
| 3.6 | Motor Housing | motor-housing | 1× | 1 | — | part |
| 3.7 | Encoder | encoder | 1× | 1 | — | part |
| 4 | Governor and Flow Control 6 parts | small-hydro-turbine-governor | 1× | 1 | 55 | assembly |
| 4.1 | Spear Valve | small-hydro-turbine-spear-valve | 2× | 2 | — | part |
| 4.2 | Servo Motor 4 parts | servo-motor | 2× | 2 | 24 | assembly |
| 4.2.1 | Stator Assembly 3 parts + deeper › | stator-assembly | 1× | 2 | 3 | assembly |
| 4.2.2 | Rotor Assembly 4 parts + deeper › | rotor-assembly | 1× | 2 | 19 | assembly |
| 4.2.3 | Encoder | encoder | 1× | 2 | — | part |
| 4.2.4 | Motor Housing | motor-housing | 1× | 2 | — | part |
| 4.3 | Jet Deflector | small-hydro-turbine-deflector | 2× | 2 | — | part |
| 4.4 | Electronic Load Controller | small-hydro-turbine-elc | 1× | 1 | — | part |
| 4.5 | Ballast Load Bank | small-hydro-turbine-ballast-load | 1× | 1 | — | part |
| 4.6 | Hall Sensor | hall-sensor | 1× | 1 | — | part |
| 5 | Shaftline 5 parts | small-hydro-turbine-shaftline | 1× | 1 | 7 | assembly |
| 5.1 | Main Shaft | small-hydro-turbine-main-shaft | 1× | 1 | — | part |
| 5.2 | Ball Bearing | ball-bearing | 2× | 2 | — | part |
| 5.3 | Oil Seal | oil-seal | 2× | 2 | — | part |
| 5.4 | Flexible Coupling | small-hydro-turbine-coupling | 1× | 1 | — | part |
| 5.5 | Water Flinger | small-hydro-turbine-flinger | 1× | 1 | — | part |
| 6 | Base Frame and Casing 6 parts | small-hydro-turbine-frame | 1× | 1 | 7 | assembly |
| 6.1 | Base Skid | small-hydro-turbine-skid | 1× | 1 | — | part |
| 6.2 | Casing Shell | small-hydro-turbine-casing-shell | 1× | 1 | — | part |
| 6.3 | Inspection Hatch | small-hydro-turbine-inspection-hatch | 1× | 1 | — | part |
| 6.4 | Tailrace Flange | small-hydro-turbine-tailrace-flange | 1× | 1 | — | part |
| 6.5 | Sheet Metal Panel | sheet-panel | 2× | 2 | — | part |
| 6.6 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 7 | Control Panel 7 parts | small-hydro-turbine-electrical | 1× | 1 | 15 | assembly |
| 7.1 | Main Breaker | small-hydro-turbine-breaker | 1× | 1 | — | part |
| 7.2 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 7.3 | Microcontroller | mcu | 1× | 1 | — | part |
| 7.4 | Relay | relay | 4× | 4 | — | part |
| 7.5 | LCD Panel | lcd-panel | 1× | 1 | — | part |
| 7.6 | Current Transformer | small-hydro-turbine-metering-ct | 3× | 3 | — | part |
| 7.7 | Connector | connector | 4× | 4 | — | part |
| 8 | Wire Bundle | wire-bundle | 1× | 1 | — | part |
| 9 | Fastener Set | fastener-set | 2× | 2 | — | part |
