Arcade Cabinet Product

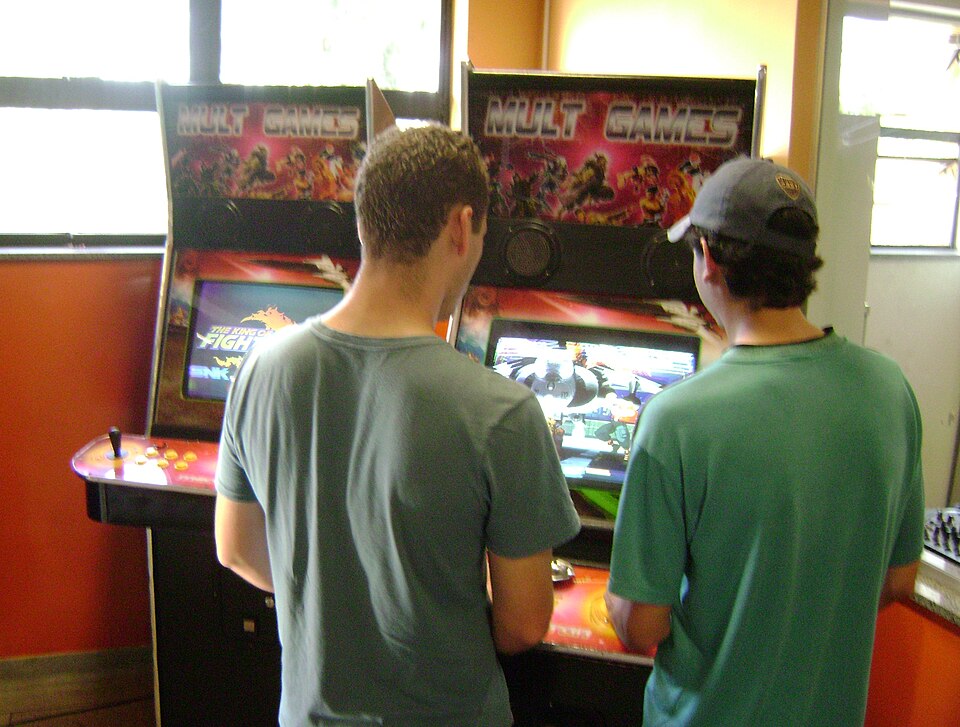

An upright coin-operated arcade machine: an MDF/plywood cabinet with coin door and marquee, an LCD monitor, a control panel of joysticks and buttons, an SBC game board, and an audio/power/wiring stack. A full specification article for this item is being written. Meanwhile its bill of materials and connections are below.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labour product / assembly shared across products atomic part related product
Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
10 top-level lines · 72 rows shown · 122 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Cabinet 9 parts | arcade-cabinet-cabinet | 1× | 1 | 23 | assembly |
| 1.1 | Cabinet Side Panel | arcade-cabinet-side-panel | 2× | 2 | — | part |
| 1.2 | Cabinet Panel Set | arcade-cabinet-panel-set | 1× | 1 | — | part |
| 1.3 | Side Art Decal | arcade-cabinet-side-art | 2× | 2 | — | part |
| 1.4 | Monitor Bezel | arcade-cabinet-bezel | 1× | 1 | — | part |
| 1.5 | Coin Door Assembly 5 parts | arcade-cabinet-coin-door | 1× | 1 | 7 | assembly |
| 1.5.1 | Coin Door Frame | arcade-cabinet-coin-door-frame | 1× | 1 | — | part |
| 1.5.2 | Coin Mechanism | arcade-cabinet-coin-mech | 2× | 2 | — | part |
| 1.5.3 | Coin Microswitch | arcade-cabinet-coin-switch | 2× | 2 | — | part |
| 1.5.4 | Coin Box | arcade-cabinet-coin-box | 1× | 1 | — | part |
| 1.5.5 | Cam Lock | arcade-cabinet-door-lock | 1× | 1 | — | part |
| 1.6 | T-Molding | arcade-cabinet-t-molding | 1× | 1 | — | part |
| 1.7 | Swivel Caster | arcade-cabinet-caster | 4× | 4 | — | part |
| 1.8 | Marquee Header 3 parts | arcade-cabinet-marquee | 1× | 1 | 4 | assembly |
| 1.8.1 | Marquee Graphic | arcade-cabinet-marquee-art | 1× | 1 | — | part |
| 1.8.2 | Marquee Retainer | arcade-cabinet-marquee-retainer | 2× | 2 | — | part |
| 1.8.3 | LED Light Strip | arcade-cabinet-led-strip | 1× | 1 | — | part |
| 1.9 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 2 | Display Module 4 parts | arcade-cabinet-display | 1× | 1 | 8 | assembly |
| 2.1 | LCD Panel | lcd-panel | 1× | 1 | — | part |
| 2.2 | Monitor Driver Board 4 parts | arcade-cabinet-monitor-driver | 1× | 1 | 5 | assembly |
| 2.2.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 2.2.2 | Microcontroller | mcu | 1× | 1 | — | part |
| 2.2.3 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 2.2.4 | Connector | connector | 2× | 2 | — | part |
| 2.3 | Monitor Mount Frame | arcade-cabinet-monitor-mount | 1× | 1 | — | part |
| 2.4 | Screen Glass | arcade-cabinet-screen-glass | 1× | 1 | — | part |
| 3 | Control Panel 6 parts | arcade-cabinet-control-panel | 1× | 1 | 61 | assembly |
| 3.1 | Control Panel Board | arcade-cabinet-cp-board | 1× | 1 | — | part |
| 3.2 | Control Panel Overlay | arcade-cabinet-cp-overlay | 1× | 1 | — | part |
| 3.3 | Joystick 6 parts | arcade-cabinet-joystick | 2× | 2 | 9 | assembly |
| 3.3.1 | Joystick Shaft | arcade-cabinet-joy-shaft | 1× | 2 | — | part |
| 3.3.2 | Ball Top | arcade-cabinet-ball-top | 1× | 2 | — | part |
| 3.3.3 | Joystick Actuator | arcade-cabinet-joy-actuator | 1× | 2 | — | part |
| 3.3.4 | Microswitch | arcade-cabinet-microswitch | 4× | 8 | — | part |
| 3.3.5 | Coil Spring | coil-spring | 1× | 2 | — | part |
| 3.3.6 | Restrictor Gate | arcade-cabinet-restrictor-gate | 1× | 2 | — | part |
| 3.4 | Push Button 3 parts | arcade-cabinet-push-button | 12× | 12 | 3 | assembly |
| 3.4.1 | Button Plunger | arcade-cabinet-button-plunger | 1× | 12 | — | part |
| 3.4.2 | Microswitch | arcade-cabinet-microswitch | 1× | 12 | — | part |
| 3.4.3 | Button LED | arcade-cabinet-button-led | 1× | 12 | — | part |
| 3.5 | Admin Button | arcade-cabinet-admin-button | 4× | 4 | — | part |
| 3.6 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 4 | Game Board 3 parts | arcade-cabinet-game-board | 1× | 1 | 14 | assembly |
| 4.1 | Single-Board Computer 5 parts | arcade-cabinet-sbc | 1× | 1 | 8 | assembly |
| 4.1.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 4.1.2 | Compute SoC Module | soc-module | 1× | 1 | — | part |
| 4.1.3 | Microcontroller | mcu | 1× | 1 | — | part |
| 4.1.4 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 4.1.5 | Connector | connector | 4× | 4 | — | part |
| 4.2 | Storage Module | arcade-cabinet-storage | 1× | 1 | — | part |
| 4.3 | I/O Encoder Board 4 parts | arcade-cabinet-io-encoder | 1× | 1 | 5 | assembly |
| 4.3.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 4.3.2 | Microcontroller | mcu | 1× | 1 | — | part |
| 4.3.3 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 4.3.4 | Connector | connector | 2× | 2 | — | part |
| 5 | Audio Module 3 parts | arcade-cabinet-audio | 1× | 1 | 8 | assembly |
| 5.1 | Amplifier Board 4 parts | arcade-cabinet-amp-board | 1× | 1 | 5 | assembly |
| 5.1.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 5.1.2 | Class-D Amp IC | arcade-cabinet-amp-ic | 1× | 1 | — | part |
| 5.1.3 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 5.1.4 | Connector | connector | 2× | 2 | — | part |
| 5.2 | Speaker | speaker | 2× | 2 | — | part |
| 5.3 | Volume Potentiometer | arcade-cabinet-volume-pot | 1× | 1 | — | part |
| 6 | Power Supply | power-supply | 1× | 1 | — | part |
| 7 | Power Distribution 3 parts | arcade-cabinet-power-dist | 1× | 1 | 3 | assembly |
| 7.1 | AC Power Inlet | arcade-cabinet-ac-inlet | 1× | 1 | — | part |
| 7.2 | DC Distribution Block | arcade-cabinet-dist-block | 1× | 1 | — | part |
| 7.3 | Wire Bundle | wire-bundle | 1× | 1 | — | part |
| 8 | Wire Bundle | wire-bundle | 1× | 1 | — | part |
| 9 | Cooling Fan | arcade-cabinet-cooling-fan | 2× | 2 | — | part |
| 10 | Fastener Set | fastener-set | 1× | 1 | — | part |
Sourcing — likely vendors
Companies that make this · indicative price $20–$3k · MOQ & lead are typical| Vendor | HQ | Specialty | MOQ | Lead time |
|---|---|---|---|---|
| arcade1up.com ↗ | Atlanta, US | Home arcade cabinets | 2,000 units | 6–10 wks |
| rawthrills.com ↗ | Skokie, US | Arcade game manufacturer | 2,000 units | 6–10 wks |
| segaarcade.com ↗ | Chessington, GB | Arcade machine maker | 2,000 units | 6–10 wks |
| bandainamco-am.co.jp ↗ | Tokyo, JP | Arcade game maker | 2,000 units | 6–10 wks |
