Overview

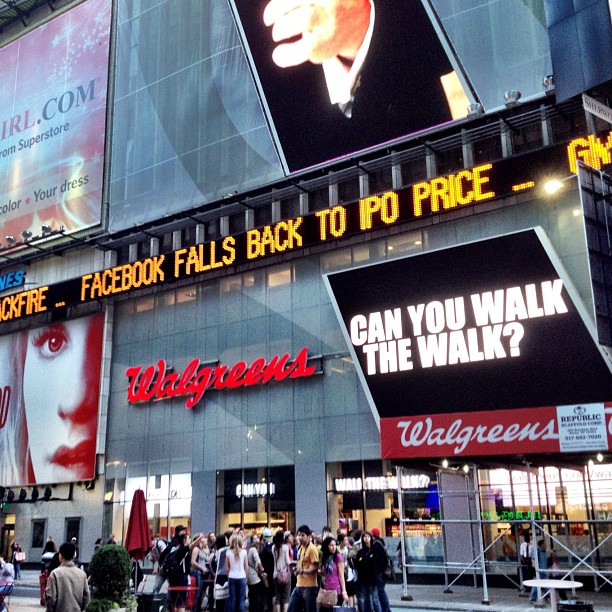

A digital signage display is a commercial-grade LCD or LED panel with integrated media playback, network connectivity, and thermal management for continuous operation in retail, hospitality, corporate, and public-transit environments. Unlike consumer televisions, signage displays are engineered for 24/7 operation, deliver full brightness in ambient daylight, and run proprietary software that manages playlists, remote scheduling, and cloud content updates.

The display consists of a high-brightness LCD panel (500–1000 nits) backed by an LED array and light guide, a media player SoC that decodes and schedules video content, network connectivity for cloud management, and a protective enclosure with active thermal management. The minimal bezel design (often < 10 mm) allows multiple displays to be tiled into a seamless wall, eliminating gaps between screens. Content is uploaded to the display via WiFi or Ethernet, scheduled using a cloud platform, and played out on a programmable loop, often synced across dozens or hundreds of displays across multiple locations.

How it works

Power enters via the Power Converter, which steps down 110–240 V AC to regulated 12 and 24 V DC supplies. The LED Backlight Array receives current from the LED Driver, which continuously adjusts brightness based on ambient light sensors (if installed) and the media player's content schedule. The Light Guide Plate diffuses the LED light evenly across the panel.

Video content flows from the Media Player Module to the LCD Pixel Array. The media player—a full Media SoC with Flash Storage for local playlists—decodes incoming video using the Video Codec Engine, which handles H.264, H.265, VP9, and Motion JPEG in hardware. The System RAM buffers video frames and manages multiple overlay layers (logos, scrolling text, etc.).

The Connectivity Module module connects the player to the cloud via Gigabit Ethernet Port or WiFi Module. A central management system pushes scheduling updates, new content, and firmware patches over the network without requiring on-site technician visits. The HDMI Input allows emergency live-feed override—e.g., breaking news or emergency alerts—when needed.

Thermal management is critical for 24/7 operation. The Finned Heatsink conducts heat from the LED driver and processor to the Thermal Spreader in the rear frame, and the Cooling Fan Assembly activates when the Temperature Sensor detects internal temperature rising above 50°C. The Air Filter prevents dust from clogging the fan and fouling component surfaces.

The Outer Case protects the panel in high-traffic areas, and the Front Glass front surface is often treated with anti-glare or anti-reflective coating to maintain visibility in sunlit locations. The VESA Mounting Plate and Wall Bracket mount the display to walls or stands, with Cable Grommet protecting cables from pinch and moisture.
