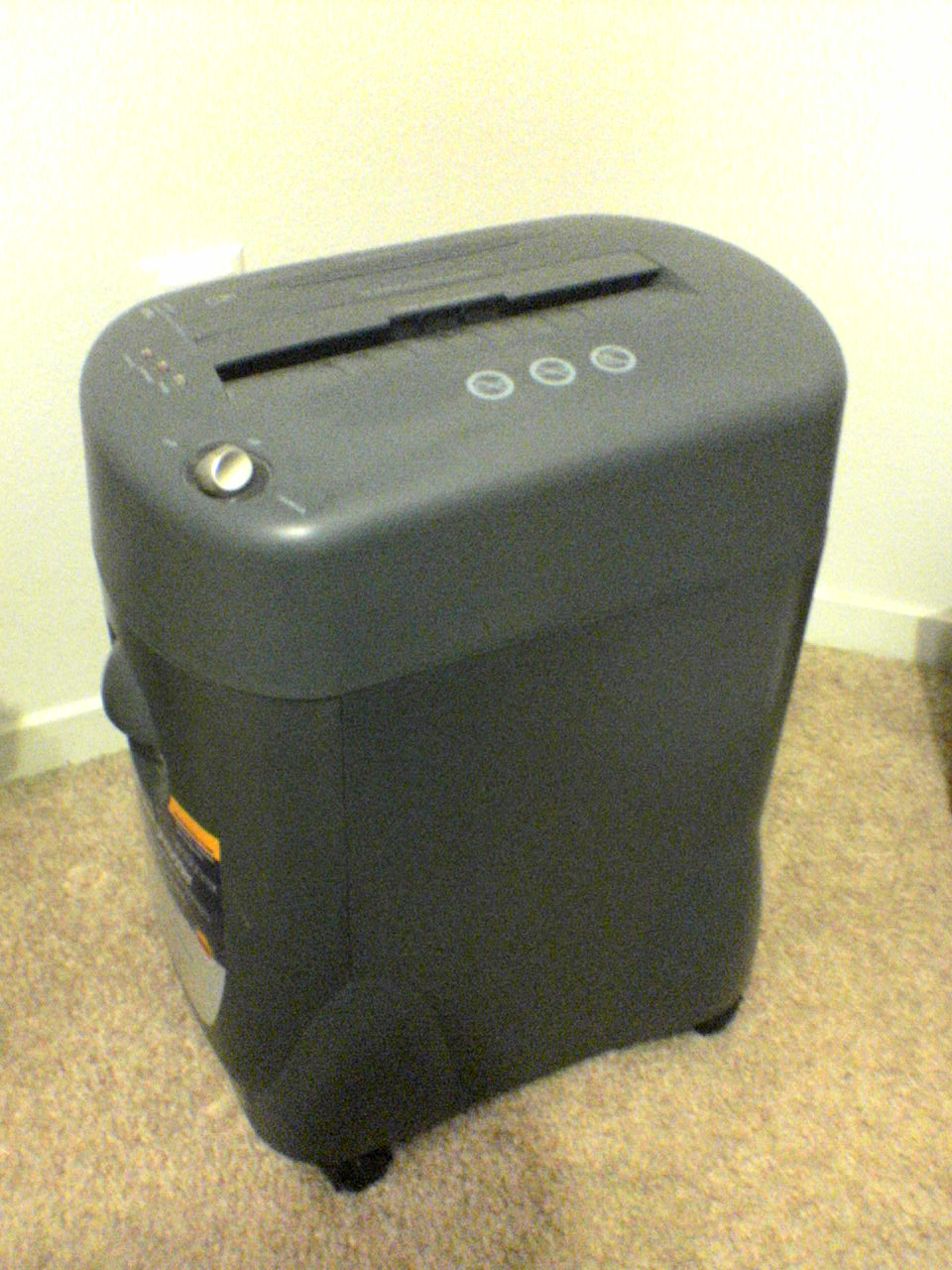

Paper Shredder Product
A cross-cut office shredder: an induction motor drives two intermeshing hardened cutter shafts through a reduction gearbox, slicing fed sheets into confetti that falls into a waste bin, with sensors that auto-start, reverse on jams, and stop when the bin is full or the head is lifted. A full specification article for this item is being written. Meanwhile its bill of materials and connections are below.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labour product / assembly shared across products atomic part related product
Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
14 top-level lines · 52 rows shown · 234 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Shredder Head 4 parts | paper-shredder-head | 1× | 1 | 4 | assembly |
| 1.1 | Head Housing | paper-shredder-head-housing | 1× | 1 | — | part |
| 1.2 | Cutter Frame | paper-shredder-cutter-frame | 1× | 1 | — | part |
| 1.3 | Head Lift Sensor | paper-shredder-head-lift-sensor | 1× | 1 | — | part |
| 1.4 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 2 | Cutting Assembly 5 parts | paper-shredder-cutting-assembly | 1× | 1 | 168 | assembly |
| 2.1 | Cutter Shaft | paper-shredder-cutter-shaft | 2× | 2 | — | part |
| 2.2 | Cutting Disc | paper-shredder-cutting-blade | 80× | 80 | — | part |
| 2.3 | Blade Spacer | paper-shredder-spacer | 80× | 80 | — | part |
| 2.4 | Ball Bearing | ball-bearing | 4× | 4 | — | part |
| 2.5 | Stripper Comb | paper-shredder-stripper-comb | 2× | 2 | — | part |
| 3 | Drive Motor 6 parts | paper-shredder-motor | 1× | 1 | 27 | assembly |
| 3.1 | Stator Assembly 3 parts | stator-assembly | 1× | 1 | 3 | assembly |
| 3.1.1 | Stator Core (laminations) | stator-core | 1× | 1 | — | part |
| 3.1.2 | Copper Winding | copper-winding | 1× | 1 | — | part |
| 3.1.3 | Slot Insulation | stator-insulation | 1× | 1 | — | part |
| 3.2 | Rotor Assembly 4 parts | rotor-assembly | 1× | 1 | 19 | assembly |
| 3.2.1 | Rotor Shaft | rotor-shaft | 1× | 1 | — | part |
| 3.2.2 | Rotor Core | rotor-core | 1× | 1 | — | part |
| 3.2.3 | Neodymium Magnet | neodymium-magnet | 16× | 16 | — | part |
| 3.2.4 | Ball Bearing | ball-bearing | 1× | 1 | — | part |
| 3.3 | Copper Winding | copper-winding | 1× | 1 | — | part |
| 3.4 | Motor Housing | motor-housing | 1× | 1 | — | part |
| 3.5 | Ball Bearing | ball-bearing | 2× | 2 | — | part |
| 3.6 | Thermal Protector | paper-shredder-thermal-protector | 1× | 1 | — | part |
| 4 | Reduction Gearbox 4 parts | paper-shredder-gearbox | 1× | 1 | 6 | assembly |
| 4.1 | Helical Gear Pair | gear-pair | 2× | 2 | — | part |
| 4.2 | Gearbox Housing | gearbox-housing | 1× | 1 | — | part |
| 4.3 | Ball Bearing | ball-bearing | 2× | 2 | — | part |
| 4.4 | Output Pinion | paper-shredder-output-pinion | 1× | 1 | — | part |
| 5 | Feed Throat 3 parts | paper-shredder-feed-throat | 1× | 1 | 3 | assembly |
| 5.1 | Throat Plate | paper-shredder-throat-plate | 1× | 1 | — | part |
| 5.2 | Safety Flap | paper-shredder-safety-flap | 1× | 1 | — | part |
| 5.3 | Feed Sensor | paper-shredder-feed-sensor | 1× | 1 | — | part |
| 6 | Control Board 7 parts | paper-shredder-control-board | 1× | 1 | 12 | assembly |
| 6.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 6.2 | Microcontroller | mcu | 1× | 1 | — | part |
| 6.3 | Relay | relay | 2× | 2 | — | part |
| 6.4 | IR Sensor | paper-shredder-ir-sensor | 2× | 2 | — | part |
| 6.5 | Overload Sensor | paper-shredder-overload-sensor | 1× | 1 | — | part |
| 6.6 | Bin-Full Sensor | paper-shredder-bin-full-sensor | 1× | 1 | — | part |
| 6.7 | Connector | connector | 4× | 4 | — | part |
| 7 | Power Switch | paper-shredder-power-switch | 1× | 1 | — | part |
| 8 | Power Cord | paper-shredder-power-cord | 1× | 1 | — | part |
| 9 | Wire Bundle | wire-bundle | 1× | 1 | — | part |
| 10 | Connector | connector | 3× | 3 | — | part |
| 11 | Waste Bin 2 parts | paper-shredder-waste-bin | 1× | 1 | 2 | assembly |
| 11.1 | Bin Basket | paper-shredder-bin-basket | 1× | 1 | — | part |
| 11.2 | Fill Window | paper-shredder-bin-window | 1× | 1 | — | part |
| 12 | Caster | caster | 4× | 4 | — | part |
| 13 | Shredder Oil | paper-shredder-oil | 1× | 1 | — | part |
| 14 | Fastener Set | fastener-set | 1× | 1 | — | part |
