Wine Cellar Conditioner Product

Overview

A wine cellar conditioner is a specialized refrigerated cabinet that stores wine under ideal long-term aging conditions. Unlike a beverage cooler, it maintains two critical parameters simultaneously: precise temperature (typically 10–20 °C depending on wine type) and relative humidity (50–80%) to prevent cork drying and label deterioration. The Storage Cabinet houses a Refrigeration Unit system powered by Control System electronics that cycle heating and cooling elements to hold tight setpoints over hours and days, allowing collectors to preserve valuable bottles without a dedicated climate-controlled room.

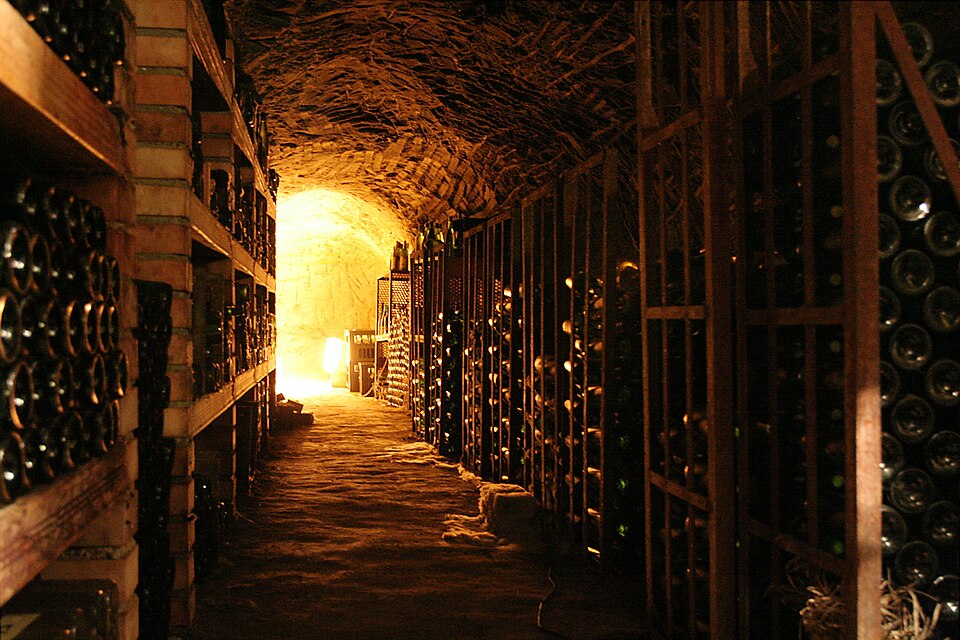

The horizontal bottle storage philosophy—bottles lying on their side in Bottle Storage—keeps the cork moist and prevents the seal from drying out, which would allow oxidation and cork taint. This design originated from traditional cellar practice and is maintained in every modern wine storage unit.

How it works

When powered, the Control System reads both the Thermistor and Humidity Hygrometer, comparing them to the setpoints on the Temperature Setpoint Knob and Humidity Setpoint Knob. If temperature exceeds the setpoint, the Relay energizes the Cooling Compressor, which circulates refrigerant through the Evaporator Coil coil.

The Circulation Fan blown by Fan Motor pushes cabinet air across the cold evaporator, chilling it. Air flows through the Duct System channels, circulating uniformly around the Bottle Storage system where bottles rest horizontally. Heat absorbed by the refrigerant is rejected in the Condenser Coil coil on the cabinet back.

If humidity drops below setpoint, the Ultrasonic Humidifier ultrasonic element mists water vapor into the air, raising relative humidity. Conversely, if humidity exceeds setpoint, the Dehumidifying Cartridge removes excess moisture, maintaining the 50–80% window that prevents cork mold (above 80%) and cork drying (below 50%).

The Storage Cabinet provides heavy Thermal Insulation, typically 50–100 mm of polyurethane foam, minimizing heat gain and reducing compressor run time. The Glass Display Door is often UV-tinted glass, allowing visual inspection without opening and exposing the contents to temperature fluctuation and external light, which degrades wine color and aroma compounds.

Temperature stability of ±1–2 °C is critical—rapid swings cause cork expansion and contraction, pushing wine out past the capsule or pulling in air. Most units use a Microcontroller to implement hysteresis control: the compressor turns on only when temperature exceeds +1 °C above setpoint, and stays on until 1 °C below, preventing rapid cycling.

The LCD Panel digital display shows current temperature and humidity, allowing the owner to verify operating conditions at a glance. The Electrical System wiring draws 3–10 A on a standard 230 V circuit, making it suitable for apartment and home use. Thermoelectric units use less power (300–500 W) but cool more slowly; compressor units (500–2000 W) reach setpoint faster and handle ambient temperatures up to 40 °C, whereas thermoelectric units struggle above 32 °C.

The Wooden Shelves and Metal Wine Rack allow air circulation, ensuring no stagnant zones. The Bottle Stop Rail stop rails prevent bottles rolling during vibration or cabinet movement.

For serious collectors, maintaining these conditions—consistent cool temperature and moderate humidity—is the difference between a wine that ages gracefully and one that oxidizes, turns to vinegar, or develops cork taint within years.
