Washer-Dryer Combo Product

Overview

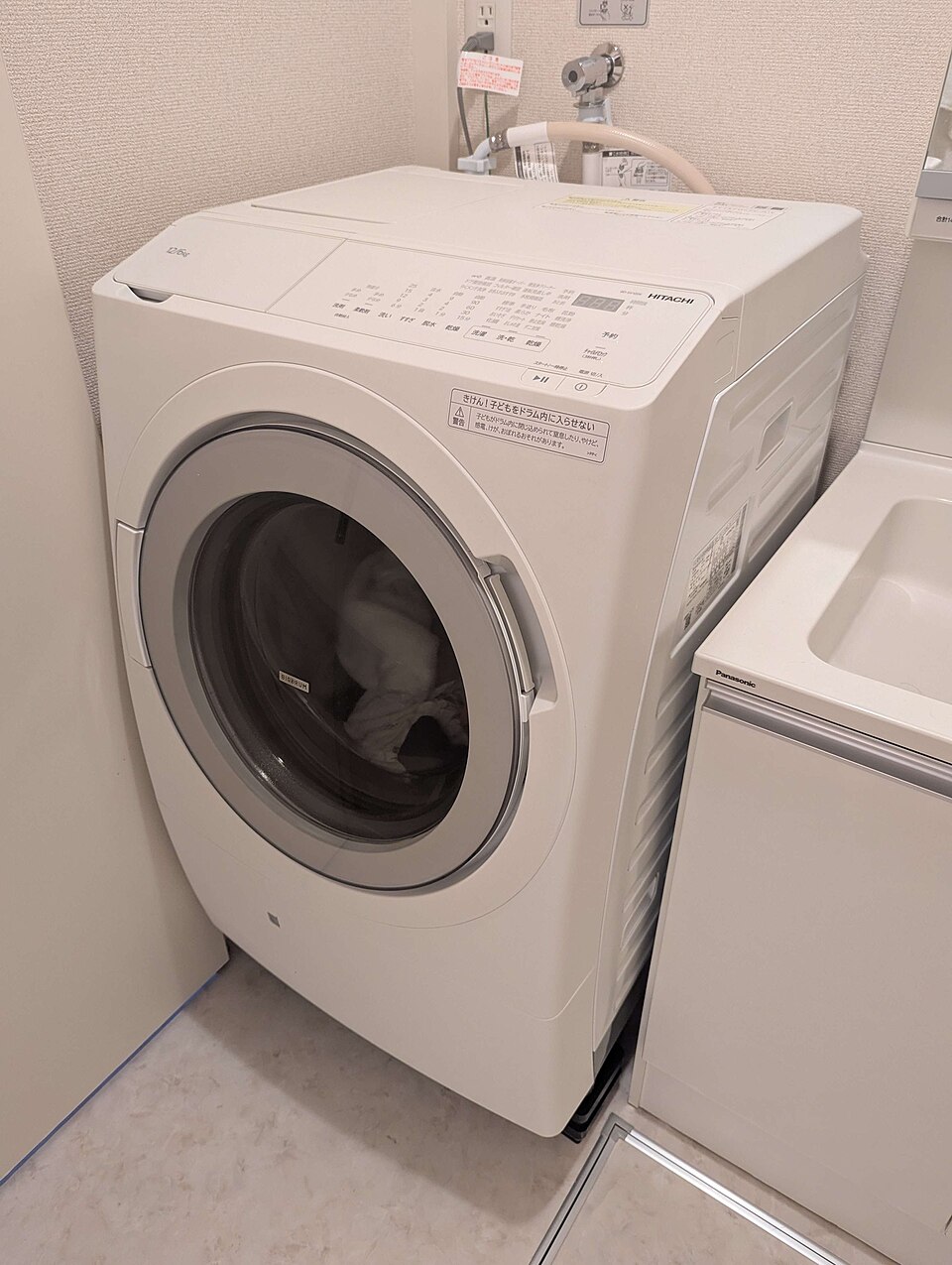

A washer-dryer combo is an all-in-one laundry appliance designed for apartments and small homes where installing separate washer and dryer units is impractical. A single Wash/Dry Drum serves both wash and dry functions. The machine washes clothes using a fill-and-tumble cycle, then—without transferring the load—proceeds to a drying phase where warm air circulates and a [[washer-dryer-combo-heating|condenser core]] extracts moisture, condensing it to drain.

The trade-off is longer cycle times and slightly lower drying efficiency versus separate machines, but the space saving and installation simplicity are major advantages for apartment dwellers and those with limited laundry space.

How it works

When the operator selects a program on the Cycle Selector and presses start, the Control PCB microcontroller begins the cycle. First, the Hot Water Valve and Cold Water Valve solenoids open, filling the Wash/Dry Drum to the programmed level while the Main Drive Motor begins a slow tumble. Detergent is released from a dispenser, mixing with the water.

The main wash phase runs 30–50 minutes at higher speed, tumbling the load and agitating water through Perforation Pattern in the drum. At the end of the wash phase, the Water Pump drains water out through the Drain Lint Filter, which catches lint and prevents it from clogging the drain line.

A rinse cycle follows: water is refilled, tumbled to remove detergent residue, then drained again. Next comes spin-out: the drum accelerates to 1200–1600 rpm, centrifugal force throws water against the drum walls and out through the perforations, reducing moisture content from ~50% down to ~10%.

The drying phase then begins. The Air Blower fan starts circulating air, and the Heating Element warms it to the selected temperature (typically 50–65 °C). Warm air flows through the tumbling drum. Moisture evaporates from clothes and is carried into the Condenser Core, where air cools and water vapor condenses back to liquid. The condensate drips into a collection tray and is pumped out by the Condensate Pump to the drain.

The Main Drive Motor driven by a Drive Belt tumbles the drum slowly during drying to expose all surfaces evenly. The Relay switches control the heater, pump, and blower sequencing. When the final moisture level is reached (typically 5–8% after 60–120 minutes), the Microcontroller stops heating, runs a cooling-down tumble, and signals completion on the LCD Panel.

The Sealing System and O-Ring Set protect the Ball Bearing at the drum's rear, preventing water from migrating into the motor. A Thermal Fuse cuts power if the condenser or heater ever overheats.

Drawbacks include longer total cycle times (90–180 minutes vs. 45 minutes separate), lower drying efficiency (condensing dryers dry cooler than vented dryers), and the inability to wash a second load while the first is drying. But for 1–2 person households or temporary situations, the space efficiency is invaluable.
