Washing Machine

Overview

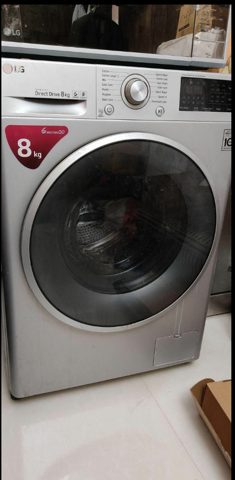

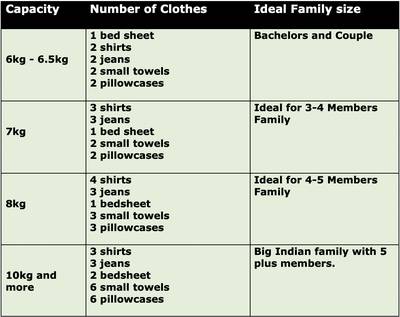

A front-loading washing machine cleans laundry by tumbling it in a perforated drum through heated, detergent-laden water, then extracts the water with a high-speed spin. Loading from the front lets the drum mount on a horizontal axis, so clothes lift and drop through the wash liquor rather than being agitated by a central post, gentler on fabric and more efficient with water and energy. A microprocessor sequences fill, wash, rinse, and spin into selectable programs tuned to fabric type and soil level.

How it works

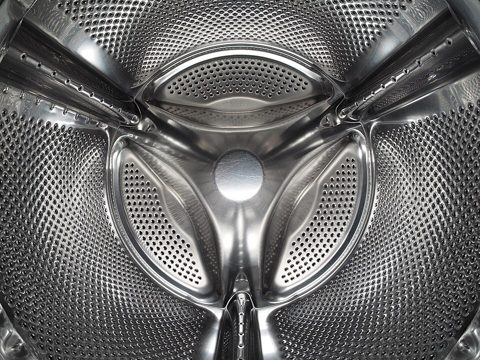

Laundry tumbles inside the Drum Assembly, where a stainless steel inner drum perforated for water flow rotates within a sealed outer tub. The drum rides on bearings around a central shaft and carries lifter paddles that raise and drop the load as it turns. Rotation is supplied by the Drive Motor, whose torque reaches the drum pulley through a poly-V belt; the same motor runs slowly for washing and ramps to high speed for the spin extraction phase.

Water management is handled by the Water System: inlet valves admit mains water through the detergent dispenser, a heating element raises it to the program temperature, a pressure switch monitors fill level, and a drain pump empties the tub between phases. All of this is sequenced by the Control Board board, which times each step, switches the valves and pump via relays, and drives the motor through an inverter for precise speed control.

The drum and motor assembly hangs inside the Cabinet on a Suspension System of springs and friction dampers, with heavy counterweights added so the structure can absorb the violent out-of-balance forces of a 1400-rpm spin without walking across the floor. The Door Assembly seals the front with a tempered glass porthole and a flexible boot gasket, and an electrical interlock keeps it locked whenever the drum is turning or water is present.
