Fare Gate Product

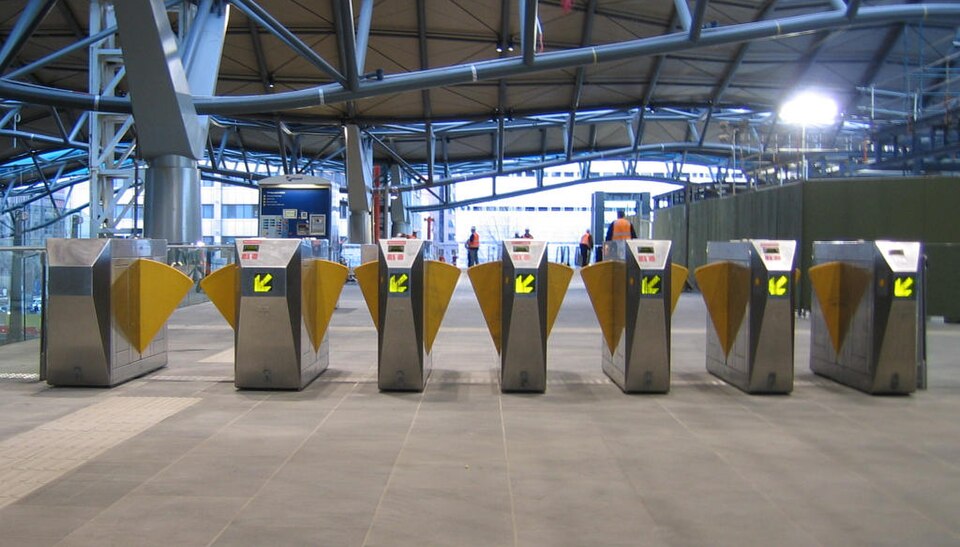

An automated passenger access control gate reading tickets and cards and opening a passage barrier upon valid entry. A full specification article for this item is being written. Meanwhile its bill of materials and connections are below.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labour product / assembly shared across products atomic part related product
Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
7 top-level lines · 52 rows shown · 73 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Stainless Steel Cabinet 4 parts | ticket-gate-cabinet | 1× | 1 | 6 | assembly |
| 1.1 | Side Panel | ticket-gate-side-panel | 2× | 2 | — | part |
| 1.2 | Top Cover Assembly | ticket-gate-top-cover | 1× | 1 | — | part |
| 1.3 | Base Housing | ticket-gate-bottom-housing | 1× | 1 | — | part |
| 1.4 | Sheet Metal Panel | sheet-panel | 2× | 2 | — | part |
| 2 | Barrier Drive System 4 parts | ticket-gate-barrier-mechanism | 1× | 1 | 35 | assembly |
| 2.1 | Barrier Motor 4 parts | ticket-gate-barrier-motor | 1× | 1 | 24 | assembly |
| 2.1.1 | Stator Assembly 3 parts + deeper › | stator-assembly | 1× | 1 | 3 | assembly |
| 2.1.2 | Rotor Assembly 4 parts + deeper › | rotor-assembly | 1× | 1 | 19 | assembly |
| 2.1.3 | Ball Bearing | ball-bearing | 1× | 1 | — | part |
| 2.1.4 | Oil Seal | oil-seal | 1× | 1 | — | part |
| 2.2 | Gear Reducer 4 parts | ticket-gate-barrier-gearbox | 1× | 1 | 5 | assembly |
| 2.2.1 | Gearbox Housing | gearbox-housing | 1× | 1 | — | part |
| 2.2.2 | Helical Gear Pair | gear-pair | 1× | 1 | — | part |
| 2.2.3 | Ball Bearing | ball-bearing | 2× | 2 | — | part |
| 2.2.4 | Oil Seal | oil-seal | 1× | 1 | — | part |
| 2.3 | Barrier Arm (Tripod or Flap) 2 parts | ticket-gate-barrier-arm | 1× | 1 | 2 | assembly |
| 2.3.1 | Sheet Metal Panel | sheet-panel | 1× | 1 | — | part |
| 2.3.2 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 2.4 | Barrier Pivot Bearing 3 parts | ticket-gate-barrier-pivot | 1× | 1 | 4 | assembly |
| 2.4.1 | Ball Bearing | ball-bearing | 2× | 2 | — | part |
| 2.4.2 | Oil Seal | oil-seal | 1× | 1 | — | part |
| 2.4.3 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 3 | Ticket & Card Reader System 4 parts | ticket-gate-reader-array | 1× | 1 | 4 | assembly |
| 3.1 | Magnetic Stripe Reader | ticket-gate-magnetic-reader | 1× | 1 | — | part |
| 3.2 | RFID/NFC Reader | ticket-gate-rfid-reader | 1× | 1 | — | part |
| 3.3 | QR Camera Module | ticket-gate-qr-camera | 1× | 1 | — | part |
| 3.4 | Reader Status LED | ticket-gate-reader-display | 1× | 1 | — | part |
| 4 | Information Display 3 parts | ticket-gate-display-panel | 1× | 1 | 4 | assembly |
| 4.1 | LCD Panel | lcd-panel | 1× | 1 | — | part |
| 4.2 | Display Backlight Module | ticket-gate-display-backlight | 1× | 1 | — | part |
| 4.3 | Connector | connector | 2× | 2 | — | part |
| 5 | Gate Control Electronics 3 parts | ticket-gate-control-board | 1× | 1 | 17 | assembly |
| 5.1 | Validator CPU Board 4 parts | ticket-gate-validator-cpu | 1× | 1 | 9 | assembly |
| 5.1.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 5.1.2 | Microcontroller | mcu | 1× | 1 | — | part |
| 5.1.3 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 5.1.4 | Connector | connector | 6× | 6 | — | part |
| 5.2 | Relay Output Module 2 parts | ticket-gate-relay-output | 1× | 1 | 5 | assembly |
| 5.2.1 | Relay | relay | 4× | 4 | — | part |
| 5.2.2 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 5.3 | Network Communication Module 2 parts | ticket-gate-wireless-modem | 1× | 1 | 3 | assembly |
| 5.3.1 | Connector | connector | 2× | 2 | — | part |
| 5.3.2 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 6 | Power Supply Module 3 parts | ticket-gate-power-supply | 1× | 1 | 3 | assembly |
| 6.1 | Power Supply | power-supply | 1× | 1 | — | part |
| 6.2 | Power Supply | power-supply | 1× | 1 | — | part |
| 6.3 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 7 | Passage & Safety Sensors 3 parts | ticket-gate-sensor-package | 1× | 1 | 4 | assembly |
| 7.1 | Passage IR Sensor | ticket-gate-passage-sensor | 2× | 2 | — | part |
| 7.2 | Obstruction Sensor | ticket-gate-obstruction-sensor | 1× | 1 | — | part |
| 7.3 | Relay | relay | 1× | 1 | — | part |
