Channel Letter Bender Product

Overview

A channel-letter bender is an industrial machine that converts aluminium coil stock into finished channel letterforms for exterior signage. Coil is unwound continuously, shaped through multi-point mandrels into a hollow rectangular channel (typically U, C, or custom profile), notched at regular intervals for connector brackets, and slotted on the sides for wiring or lamp mounting. The process is fully programmable, allowing rapid changeover between letter designs without manual die swaps.

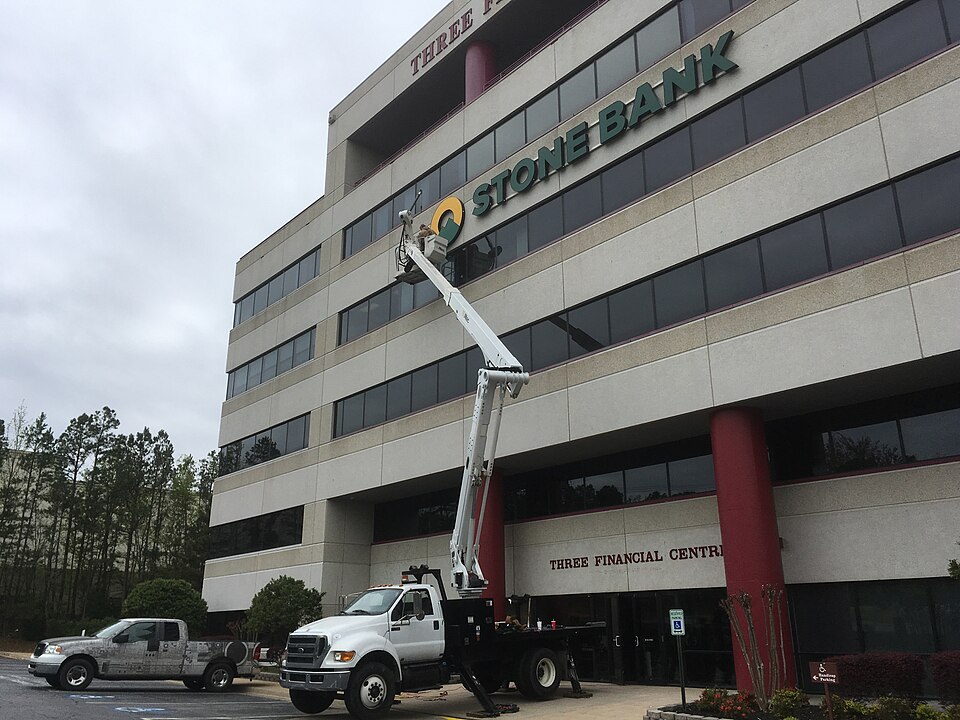

Channel-letter signage dominates commercial storefronts. Unlike formed plastic or routed wood, aluminium channels offer durability, weather resistance, and consistent light-panel support for backlighting. A single bender can produce complete letterforms for multiple signs per day, with output ranging from a single 5 m/min to industrial 15 m/min for high-volume applications.

How It Works

Coil Feeder unwound continuously from a starting coil. The Feed Step Motor, driven by stepper commands, indexes the strip in precise increments—typically 50–200 mm per bend cycle depending on letter geometry.

The Bending Head rotates on a servo-controlled spindle. It contains three hardened Mandrel Pin pins (or four in tight-radius designs) arranged in a rotary die. As the strip advances, the head rotates against it, wrapping and forming the aluminium into the channel profile over multiple revolutions. The Pressure Roller applies radial force, ensuring consistent bend radius and wall thickness.

Once the channel shape is complete, the Notching Unit punches regularly spaced rectangular notches—typically every 40–60 mm. These notches accept mounting brackets and connector lugs, allowing letters to be joined end-to-end or fastened to a mounting frame. A Notch Actuator (pneumatic cylinder) fires the punch synchronized with Encoder feedback from the strip position.

The Slotting Unit cuts horizontal vents or cable slots into the flanges—necessary for airflow (cooling LED lamps) and internal wiring passage. Slot position is programmable.

The Controller coordinates all motion: it manages Feed Step Motor indexing, Servo Motor rotation speed and angle, and firing of the notching solenoid. Operators input letter length and profile via the HMI Touchscreen Panel; the PLC calculates feed distances, bend rotations, and notch timing automatically.

The Power Drive supplies continuous torque via the Main Motor. A Gearbox reduces speed and increases torque to the bending spindle, typically achieving 0.5–5 rpm rotation at 2–5 kN forming pressure.

Design Profiles and Applications

Standard profiles: U-channel (simple two-wall), C-channel (three walls), box-channel (fully closed, for rigid forms). Custom asymmetric profiles are possible by changing mandrel pin sets—a 20-minute job on programmed machines. Wide-flange variants (100–200 mm) suit large billboard letters; narrow-flange (20–50 mm) suit small signage or trim.

Material: pure-rolled aluminium alloys (3003, 5052) chosen for ductility and corrosion resistance. Thickness 0.5–2.0 mm is standard; thicker material requires slower speeds and higher forming pressure.

Output of a single machine: one 2–3 m letter every 10–30 minutes, depending on profile complexity. A high-end bender can produce 30+ letters per shift in a 24-hour sign-shop operation.

Maintenance and Precision

Mandrel pins wear gradually; hardening is depleted after ~1000 letters per set. Replacement pin sets cost €500–1500 and take <1 hour to swap. The Bending Head bearings require daily oil lubrication; annual replacement is typical in high-volume shops.

Bend angle accuracy: ±0.5 mm drift per 100 letters is normal; tighter tolerance requires weekly mandrel cleaning (aluminium oxide buildup dulls pins). The Feed Step Motor encoder drift compensation maintains repeatability across long runs.

Slotting and notching maintain sub-1 mm precision over 1000+ cycles using hardened dies and Pressure Sensor monitoring to detect tool wear.
