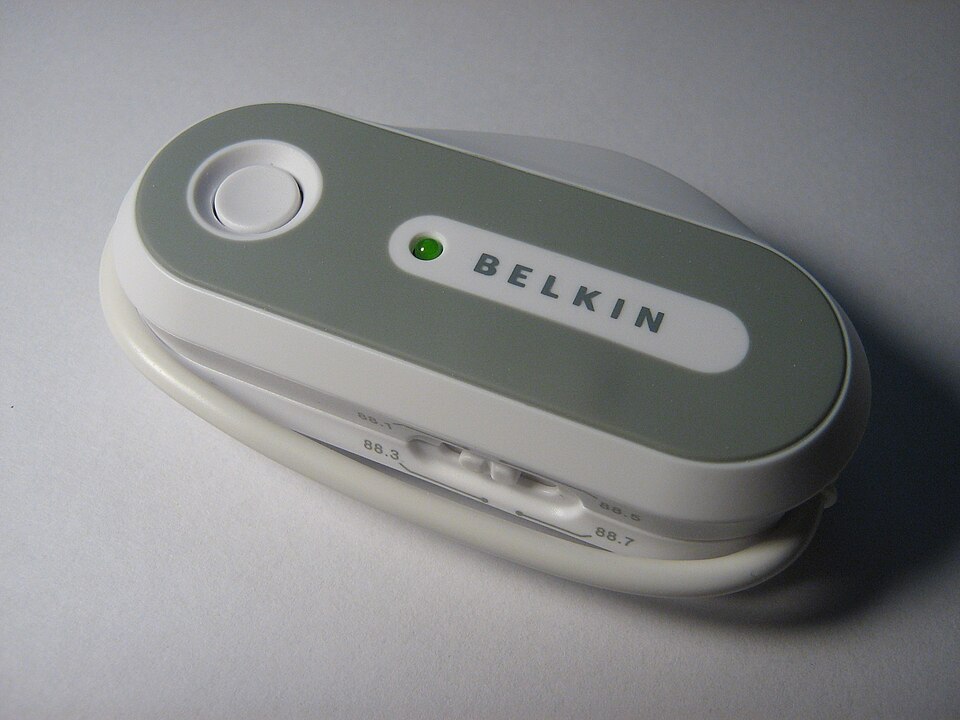

Car FM Transmitter Product

Overview

An FM transmitter bridges the gap between a car stereo system and personal audio devices. Rather than replace the radio, it broadcasts audio from a smartphone or tablet over an unoccupied FM frequency. The driver tunes the car radio to that frequency, and the audio plays through the vehicle's existing speaker system. The device also doubles as a USB charging hub, adding practical value for road trips.

This unit combines a Bluetooth audio receiver, a frequency-tunable FM modulator, and a low-power RF amplifier into a single dashboard-mounted device. The [[car-fm-transmitter-cigarette-plug|cigarette lighter connector]] draws power from the car's 12V auxiliary circuit. An internal [[car-fm-transmitter-power-supply|DC-DC converter]] regulates voltage to logic rails and USB buses. The [[car-fm-transmitter-display|LED or LCD display]] shows the currently tuned frequency, and [[car-fm-transmitter-controls|tactile buttons]] allow the driver to increment or decrement frequency in 100 kHz or 200 kHz steps.

How it works

When powered on, the [[car-fm-transmitter-mcu|main MCU]] initializes the [[car-fm-transmitter-fm-module|FM modulator]] to a default frequency (often 107.9 MHz, the highest unoccupied slot in many regions). The [[car-fm-transmitter-oscillator|crystal oscillator]] provides a stable reference, and the [[car-fm-transmitter-modulator-ic|modulation IC]] tunes the frequency synthesizer by adjusting varactor diode capacitance or divider ratios.

The [[car-fm-transmitter-bluetooth-audio|Bluetooth audio receiver]] initializes its [[soc-module|BLE SoC]] and begins scanning for pairing requests. Once a phone pairs for the first time, credentials are stored in flash; on subsequent power-ups, the transceiver auto-reconnects. Audio streams in as a continuous L/R stereo bitstream at 48 kHz. The [[car-fm-transmitter-audio-codec|audio codec IC]] decodes and buffers this, outputting an analog audio signal to the [[car-fm-transmitter-modulator-ic|modulation stage]].

The audio signal modulates the RF carrier generated by the [[car-fm-transmitter-oscillator|oscillator]]. In wideband FM, the modulation index is chosen to produce a transmission occupying ~200 kHz of bandwidth (per FM broadcast standard). The [[car-fm-transmitter-rf-amplifier|RF amplifier stage]], typically a simple BJT or MOSFET, boosts the modulated signal to 0.5–2 W before feeding it to the [[car-fm-transmitter-antenna|telescopic antenna]]. The antenna radiates the signal, and a car radio tuned to the same frequency receives and demodulates it.

When the driver presses the [[car-fm-transmitter-tune-up-btn|tune up]] or [[car-fm-transmitter-tune-down-btn|tune down]] button, the MCU sends a command to the modulator to step the frequency. The [[car-fm-transmitter-display|display]] updates to show the new frequency, and the driver immediately retunes the car radio to match. Some advanced models auto-detect a quiet FM slot using a receiver IC (not shown for simplicity), eliminating manual tuning.

The [[car-fm-transmitter-volume-pot|volume knob]] adjusts the amplitude of the audio signal feeding the modulator. The [[car-fm-transmitter-microphone|built-in microphone]] provides a call return path; the MCU routes it to the Bluetooth SoC, enabling hands-free calling. When an incoming call arrives, the transmitter mutes music, amplifies the microphone, and lets the driver converse while keeping eyes on the road.

The [[car-fm-transmitter-power-supply|switch-mode converter]] reduces the 12V input to regulated 5V for USB output and logic supply. The converter operates at ~600 kHz switching frequency to minimize conducted noise into the vehicle electrical system. Two [[car-fm-transmitter-usb-port-a|USB ports]] share the 5V rail; total available current is typically 2–2.5 A, sufficient for two phones at 1 A each. A [[car-fm-transmitter-fuse|fuse]] in the [[car-fm-transmitter-cigarette-plug|input connector]] protects against short-circuit; a typical 3 A fast-blow fuse opens if the internal converter fails.

The [[car-fm-transmitter-antenna|telescopic antenna]] extends to roughly 75 cm for optimal reception and transmission. A tuning stub on some models allows users to dial in the frequency response for their car's electrical environment, reducing hash and co-channel interference.
