E-Ink Writing Tablet Product

Overview

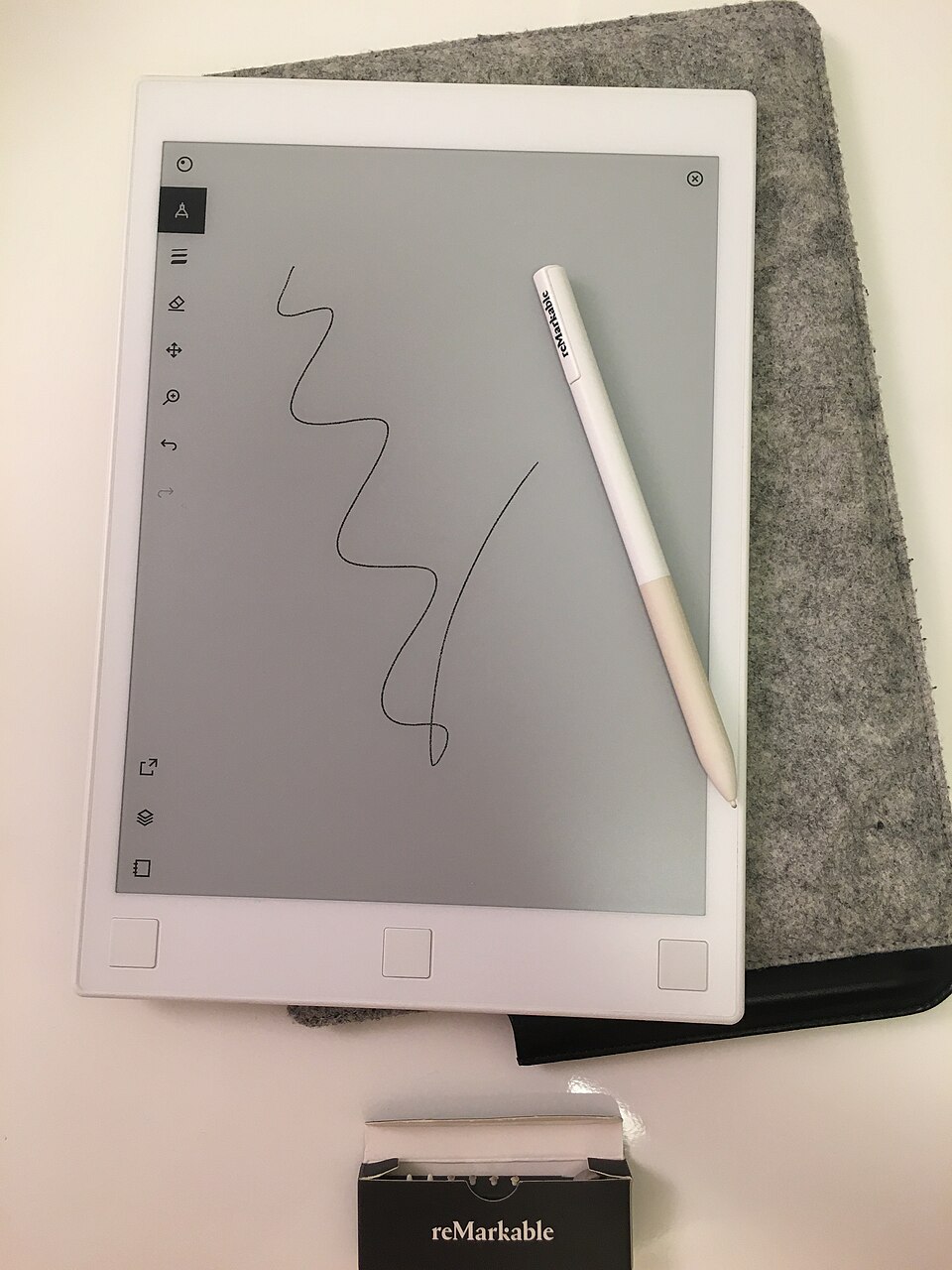

An e-ink writing tablet reads and writes like paper rather than a backlit screen. The E-Ink Display Module pairs an electrophoretic panel with an EMR digitizer so a battery-free EMR Stylus can write on it; the Mainboard runs the note and reading apps; a LiPo Cell-based Battery Pack lasts for weeks because the display holds an image without power; and an optional Frontlight Module lights the page for reading in the dark. It all sits in a thin Enclosure with a Port Board for USB-C.

The defining trait is the display physics. E ink only draws power when the image changes, so the device is dominated by standby, not screen-on time, and the whole Mainboard is tuned for low-power idling rather than raw speed.

How it works

The E Ink Panel is a layer of microcapsules, each holding black and white charged pigment in a clear fluid over a TFT backplane. To draw a pixel the EPD Timing Controller applies a voltage waveform that pulls the right pigment to the surface; once it settles, the pigment stays put with no power, which is why a page persists when the tablet sleeps. Those waveforms need bipolar high-voltage rails the EPD Power Management IC generates from the battery.

Writing uses electromagnetic resonance. The Touch Digitizer is a sensor grid that radiates an RF field; the Resonant Coil in the stylus resonates with it, returning a signal that locates the pen and, through the Pressure Sensor, reports how hard the Replaceable Nib is pressed. Because the field powers the pen, the stylus needs no battery, and the Compute SoC Module renders strokes onto the panel fast enough to feel like ink.

The application processor on the Mainboard runs from the eMMC Storage and buffers documents in LPDDR Memory; files move on and off through the Port Board USB-C link or a card in the microSD Slot. For reading after dark, the Frontlight Module shines edge LEDs across a Light Guide Film so light washes over the page from the front, never glaring back at you the way a backlit panel does, with warm and cool LEDs mixed by the LED Driver.
