Portable Power Station Product

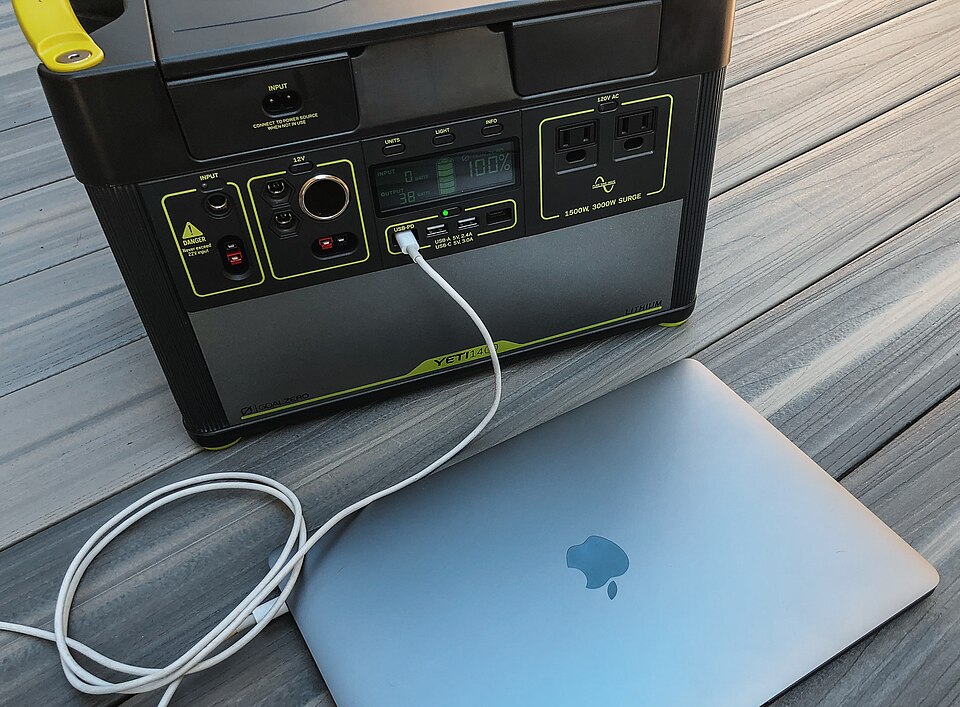

A 1 kWh LiFePO4 portable power station with a pure-sine inverter, MPPT solar input and AC/USB/DC outputs. A full specification article for this item is being written. Meanwhile its bill of materials and connections are below.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labour product / assembly shared across products atomic part related product
Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
13 top-level lines · 71 rows shown · 94 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Enclosure 5 parts | portable-power-station-enclosure | 1× | 1 | 10 | assembly |
| 1.1 | Case Half | portable-power-station-case-half | 2× | 2 | — | part |
| 1.2 | Carry Handle | portable-power-station-handle | 1× | 1 | — | part |
| 1.3 | Rubber Foot | portable-power-station-foot | 4× | 4 | — | part |
| 1.4 | Vent Grille | portable-power-station-vent-grille | 2× | 2 | — | part |
| 1.5 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 2 | LiFePO4 Battery Pack 6 parts | portable-power-station-battery-pack | 1× | 1 | 22 | assembly |
| 2.1 | LiFePO4 Cell | portable-power-station-lifepo4-cell | 16× | 16 | — | part |
| 2.2 | Cell Holder | portable-power-station-cell-holder | 1× | 1 | — | part |
| 2.3 | Spot-Welded Busbar | portable-power-station-busbar | 1× | 1 | — | part |
| 2.4 | BMS Board | bms-board | 1× | 1 | — | part |
| 2.5 | Temperature Sensor | portable-power-station-temp-sensor | 2× | 2 | — | part |
| 2.6 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 3 | Pure-Sine Inverter Board 8 parts | portable-power-station-inverter | 1× | 1 | 13 | assembly |
| 3.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 3.2 | Microcontroller | mcu | 1× | 1 | — | part |
| 3.3 | Power MOSFET | mosfet | 4× | 4 | — | part |
| 3.4 | IGBT Power Module | igbt-module | 1× | 1 | — | part |
| 3.5 | Inverter Transformer | portable-power-station-transformer | 1× | 1 | — | part |
| 3.6 | DC-Link Capacitor | dc-link-cap | 2× | 2 | — | part |
| 3.7 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 3.8 | Connector | connector | 2× | 2 | — | part |
| 4 | MPPT Charge Controller 4 parts | portable-power-station-mppt | 1× | 1 | 5 | assembly |
| 4.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 4.2 | Microcontroller | mcu | 1× | 1 | — | part |
| 4.3 | Power MOSFET | mosfet | 2× | 2 | — | part |
| 4.4 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 5 | AC/DC Charger Board 5 parts | portable-power-station-charger | 1× | 1 | 7 | assembly |
| 5.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 5.2 | Power MOSFET | mosfet | 2× | 2 | — | part |
| 5.3 | Charger Transformer | portable-power-station-charger-transformer | 1× | 1 | — | part |
| 5.4 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 5.5 | Connector | connector | 2× | 2 | — | part |
| 6 | Control Board 5 parts | portable-power-station-control-board | 1× | 1 | 7 | assembly |
| 6.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 6.2 | Compute SoC Module | soc-module | 1× | 1 | — | part |
| 6.3 | Microcontroller | mcu | 1× | 1 | — | part |
| 6.4 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 6.5 | Connector | connector | 3× | 3 | — | part |
| 7 | Output Panel 6 parts | portable-power-station-outputs | 1× | 1 | 9 | assembly |
| 7.1 | AC Outlet | portable-power-station-ac-outlet | 2× | 2 | — | part |
| 7.2 | Relay | relay | 1× | 1 | — | part |
| 7.3 | USB Port Assembly | portable-power-station-usb-port | 1× | 1 | — | part |
| 7.4 | USB PD Board 3 parts | portable-power-station-usb-board | 1× | 1 | 3 | assembly |
| 7.4.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 7.4.2 | Microcontroller | mcu | 1× | 1 | — | part |
| 7.4.3 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 7.5 | 12V Car Socket | portable-power-station-car-socket | 1× | 1 | — | part |
| 7.6 | DC Barrel Jack | portable-power-station-dc-barrel | 1× | 1 | — | part |
| 8 | Input Panel 3 parts | portable-power-station-input | 1× | 1 | 4 | assembly |
| 8.1 | Solar Input Port | portable-power-station-solar-input-port | 1× | 1 | — | part |
| 8.2 | AC Input Port | portable-power-station-ac-input-port | 1× | 1 | — | part |
| 8.3 | Connector | connector | 2× | 2 | — | part |
| 9 | Display Assembly 4 parts | portable-power-station-display | 1× | 1 | 4 | assembly |
| 9.1 | LCD Panel | lcd-panel | 1× | 1 | — | part |
| 9.2 | Button Set | portable-power-station-button-set | 1× | 1 | — | part |
| 9.3 | Indicator LEDs | portable-power-station-led-set | 1× | 1 | — | part |
| 9.4 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 10 | Cooling Fan 2 parts | portable-power-station-cooling-fan | 1× | 1 | 2 | assembly |
| 10.1 | Blower Motor | blower-motor | 1× | 1 | — | part |
| 10.2 | Fan Impeller | portable-power-station-fan-impeller | 1× | 1 | — | part |
| 11 | Busbars + Internal Wiring 3 parts | portable-power-station-busbar-wiring | 1× | 1 | 6 | assembly |
| 11.1 | Power Busbar | portable-power-station-power-busbar | 1× | 1 | — | part |
| 11.2 | Wire Bundle | wire-bundle | 1× | 1 | — | part |
| 11.3 | Connector | connector | 4× | 4 | — | part |
| 12 | Wireless Module 4 parts | portable-power-station-wireless-module | 1× | 1 | 4 | assembly |
| 12.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 12.2 | Compute SoC Module | soc-module | 1× | 1 | — | part |
| 12.3 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 12.4 | Connector | connector | 1× | 1 | — | part |
| 13 | Fastener Set | fastener-set | 1× | 1 | — | part |
