Horse Starting Gate

Product

Overview

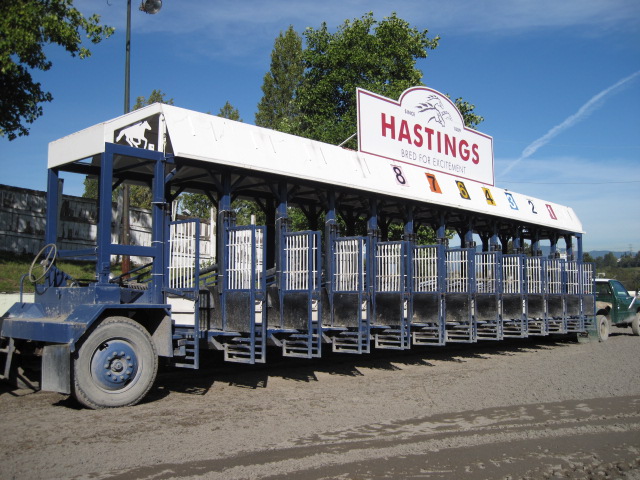

A horse starting gate is a mechanical system used at racetracks to ensure all horses begin a race simultaneously. The gate consists of eight individual stalls, each with a front sliding gate panel. A starter loads each horse into a stall, ensures the animal is calm and standing square, then activates the release mechanism. All eight gates open in perfect synchronization (within 200 milliseconds), allowing the horses to break from the gate together. This eliminates the possibility of human bias (some horses breaking earlier than others due to slower starters) and ensures competitive fairness.

Modern racing regulations across North America and Europe mandate mechanical starting gates with electromagnetic release. The system must be reliable, safe for handler and horse, and portable, tracks transport the gate from venue to venue via towing.

How it works

Stall Configuration

Each stall assembly is a steel-framed enclosure approximately 2.5 meters deep, 1.8 meters wide, and 2.0 meters tall. The walls consist of padded steel partitions separating adjacent stalls (preventing horses from interfering with one another) and a front-facing sliding gate panel.

The padding is critical for safety: closed-cell foam (50 mm thick) backed with natural rubber facing lines all interior surfaces. This absorbs impact energy if a nervous horse rears or strikes the walls. The padding also dampens noise, reducing acoustic stress.

Simultaneous Gate Release

The starter operates a hardwired start button, sending a 24 VDC signal to eight latch mechanisms, one per stall. Each latch is an electromagnet coil (24 VDC, 200 N holding force) that retracts a mechanical linkage arm.

When the start button is pressed, all eight electromagnets de-energize simultaneously, releasing their respective linkage arms. Each arm was holding a sliding gate in a closed position against a return spring. The spring instantly pushes the gate forward approximately 0.3 meters in roughly 200 milliseconds.

The synchronization is mechanical and extremely reliable: the 200 ms opening time is determined entirely by spring rate and friction, not by electronics. Even if power is lost, the springs re-engage the latches (which is a safety feature, if a gate malfunctions, the system defaults to fail-safe, with gates closing rather than jamming open).

Gate Installation and Frame Structure

The eight stalls are mounted onto a structural frame chassis consisting of:

  • Two main beams (welded box-section steel) running lengthwise.
  • Four cross members providing torsional rigidity.
  • leaf springs at each wheel corner, allowing the gate to conform to uneven track surfaces (dirt, grass, or artificial surfaces with ruts).
  • Four pneumatic wheels with towing tongue hitch for tractor-assisted positioning.

The suspension allows the gate to maintain level and parallel alignment even on sloped or rutted track surfaces, ensuring all horses experience equal gate-opening conditions.

Power and Control System

The power system provides 24 VDC from either AC mains (via a regulated PSU) or a 20 Ah lead-acid battery for emergency operation if mains power is interrupted. The battery is continuously trickle-charged via an automatic charger module.

The control unit houses a microcontroller that monitors:

  • Start Button State: Confirms the start button was pressed and held for >= 100 ms (preventing accidental activation from button bounce).
  • Gate Open Confirmation: Sensors verify all gates opened within the expected 200 ms window. If any gate fails to open, an audible and visual alarm alerts the starter.
  • Latch Re-Engagement: Post-release, the system waits approximately 500 ms before allowing the gates to be manually pushed closed again (to avoid interfering with breakaway horses). Once closed, the electromagnets re-engage to hold the gates for the next race.

An emergency stop (E-stop) button immediately de-energizes all electromagnets, allowing any stuck gate to be manually pushed closed by track staff.

Handler Safety

Starters work between the stalls while loading horses, so safety is paramount. The foam padding minimizes risk of crushing injuries if a gate suddenly opens while a handler is adjacent. The 200 ms release window is fast enough to be imperceptible to horses (they cannot react in that timeframe), reducing panic or resistance to entry.

Handlers also use voice commands and gentle pressure to position horses, and the gate design allows them to control the closing gates manually (they are not spring-loaded to close; the operator must push them closed). This manual operation prevents accidental gate-opening during loading.

Post-Race Procedure

After a race, the horses exit at the far end of the track. Track staff manually push the eight gates closed (springs assist but do not fully close them), re-establishing magnetic latch engagement. The electromagnets hold the gates closed until the next race cycle. Once all horses are confirmed clear of the gate area, the starter can authorize the next load sequence.

Deployment and Maintenance

The gate is towed to the track position via the ball-coupler hitch, usually positioned 150 meters from the actual finish line. Once in position, the wheels are locked (via brake or chocks), and the gate is leveled using adjustable suspension springs. A laser level is often used to verify all stalls are at the same height.

Electrical connections (24 VDC power, start button, gate-open sensors) are wired from the gate to the starter's stand via cable runs buried along the track or run above-ground in protective conduit.

Annual maintenance includes:

  • Lubrication of sliding gate rails and springs.
  • Inspection of padding for wear or deterioration (replaced as needed).
  • Electrical system test-fire (verifying all eight gates open on command).
  • Lead-acid battery load-test and replacement if capacity drops below 80%.

The gate is designed for heavy use (multiple races per day, 200+ race cycles per season), and field repairs typically consist of adjusting spring preload or replacing corroded connectors. Major structural work is rare if regular maintenance is followed.

Horse Starting Gate parts and their functions

6 top-level parts · 179 parts in total · full bill of materials below
Horse Starting Gate parts diagram: 1 stall assembly, 2 latch mechanism, 3 frame chassis, 4 padding system, 5 power system, 6 control unit. 179 parts in 6 top-level items.
Horse Starting Gate parts diagram. Numbers match the table below; each box is one top-level part or assembly with what it contains.
#PartQtyWhat it does
1 Stall Assembly 5 parts 8× Individual horse stalls with sliding gate panels
2 Latch Mechanism 6 parts 8× Electromagnet-triggered latch for simultaneous release
3 Frame Chassis 6 parts 1× Structural beam and towing undercarriage
4 Padding System 4 parts 1× Safety padding and partition liners
5 Power System 5 parts 1× AC power conversion and battery backup
6 Control Unit 7 parts 1× Gate opening logic and release timer

3D model

No 3D model yet. Have a CAD file of this? Add a 3D model. STL renders right on this page; STEP, FreeCAD, and OpenSCAD sources are welcome too (openly licensed, like all 3D models on BOMwiki).

Build & assembly graph

expand / collapse · shared sub-assemblies converge · links to related products · est. labour
product / assembly shared across products atomic part related product

Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.

Bill of materials for Horse Starting Gate

6 top-level lines · 44 rows shown · 179 parts total · indented to 3 levels
# Item / sub-assembly Part no. Qty/assy Ext. qty Parts Type
1 Stall Assembly 5 parts horse-starting-gate-stall-assembly 8× 8 6 assembly
1.1 Stall Frame horse-starting-gate-stall-frame 1× 8 · part
1.2 Sliding Gate horse-starting-gate-sliding-gate 1× 8 · part
1.3 Side Partition horse-starting-gate-side-partition 2× 16 · part
1.4 Latch Point horse-starting-gate-latch-point 1× 8 · part
1.5 Fastener Set fastener-set 1× 8 · part
2 Latch Mechanism 6 parts horse-starting-gate-latch-mechanism 8× 8 6 assembly
2.1 Electromagnet horse-starting-gate-electromagnet 1× 8 · part
2.2 Release Linkage horse-starting-gate-release-linkage 1× 8 · part
2.3 Return Spring horse-starting-gate-return-spring 1× 8 · part
2.4 Relay relay 1× 8 · part
2.5 Connector connector 1× 8 · part
2.6 Fastener Set fastener-set 1× 8 · part
3 Frame Chassis 6 parts horse-starting-gate-frame-chassis 1× 1 49 assembly
3.1 Main Beam horse-starting-gate-main-beam 2× 2 · part
3.2 Cross Member horse-starting-gate-cross-member 4× 4 · part
3.3 Suspension Spring horse-starting-gate-suspension-spring 4× 4 · part
3.4 Wheel Assembly 5 parts wheel-assembly 4× 4 9 assembly
3.4.1 Alloy Wheel alloy-wheel 1× 4 · part
3.4.2 Tire tire 1× 4 · part
3.4.3 TPMS Sensor tpms-sensor 1× 4 · part
3.4.4 Lug Nut lug-nut 5× 20 · part
3.4.5 Valve Stem valve-stem 1× 4 · part
3.5 Tongue Hitch horse-starting-gate-tongue-hitch 1× 1 · part
3.6 Fastener Set fastener-set 2× 2 · part
4 Padding System 4 parts horse-starting-gate-padding-system 1× 1 17 assembly
4.1 Foam Padding horse-starting-gate-foam-padding 8× 8 · part
4.2 Rubber Facing horse-starting-gate-rubber-facing 1× 1 · part
4.3 Partition Pad horse-starting-gate-partition-pad 7× 7 · part
4.4 Fastener Set fastener-set 1× 1 · part
5 Power System 5 parts horse-starting-gate-power-system 1× 1 6 assembly
5.1 Power Supply power-supply 1× 1 · part
5.2 Battery Pack horse-starting-gate-battery-pack 1× 1 · part
5.3 Charger horse-starting-gate-charger 1× 1 · part
5.4 Connector connector 2× 2 · part
5.5 Fastener Set fastener-set 1× 1 · part
6 Control Unit 7 parts horse-starting-gate-control-unit 1× 1 11 assembly
6.1 Microcontroller mcu 1× 1 · part
6.2 Timer Circuit horse-starting-gate-timer-circuit 1× 1 · part
6.3 Relay relay 3× 3 · part
6.4 Start Button horse-starting-gate-start-button 1× 1 · part
6.5 Bare PCB pcb-bare 1× 1 · part
6.6 Connector connector 3× 3 · part
6.7 Fastener Set fastener-set 1× 1 · part

Something wrong in this list? Report a problem with this BOM.
