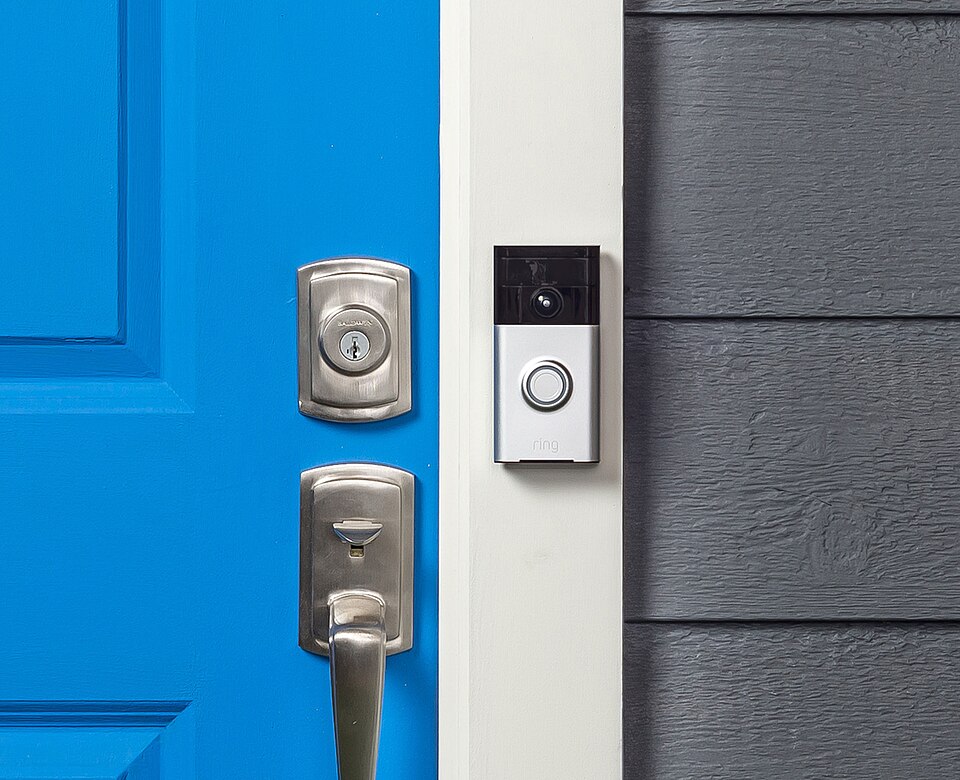

Video Doorbell Product
A Wi-Fi smart video doorbell with HD camera, IR night vision, PIR motion detection, two-way audio, rechargeable battery plus wired transformer power, and a separate plug-in chime. A full specification article for this item is being written. Meanwhile its bill of materials and connections are below.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labour product / assembly shared across products atomic part related product
Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
14 top-level lines · 60 rows shown · 231 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Housing 4 parts | video-doorbell-housing | 1× | 1 | 4 | assembly |
| 1.1 | Front Cover | video-doorbell-front-cover | 1× | 1 | — | part |
| 1.2 | Back Plate | video-doorbell-back-plate | 1× | 1 | — | part |
| 1.3 | O-Ring Set | oring-set | 1× | 1 | — | part |
| 1.4 | Button Cap | video-doorbell-button-cap | 1× | 1 | — | part |
| 2 | Camera Module 3 parts | video-doorbell-camera | 1× | 1 | 5 | assembly |
| 2.1 | CMOS Image Sensor | image-sensor | 1× | 1 | — | part |
| 2.2 | Camera Module 3 parts | camera-module | 1× | 1 | 3 | assembly |
| 2.2.1 | CMOS Image Sensor | image-sensor | 1× | 1 | — | part |
| 2.2.2 | Lens Assembly | camera-lens | 1× | 1 | — | part |
| 2.2.3 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 2.3 | IR-Cut Filter | video-doorbell-ir-cut | 1× | 1 | — | part |
| 3 | Mainboard 8 parts | video-doorbell-mainboard | 1× | 1 | 129 | assembly |
| 3.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 3.2 | Compute SoC Module | soc-module | 1× | 1 | — | part |
| 3.3 | Microcontroller | mcu | 1× | 1 | — | part |
| 3.4 | SMD Passive (R/C/L) | smd-passives | 120× | 120 | — | part |
| 3.5 | Flash Memory | video-doorbell-flash | 1× | 1 | — | part |
| 3.6 | Wi-Fi / BLE Module | video-doorbell-wifi-module | 1× | 1 | — | part |
| 3.7 | Antenna | video-doorbell-antenna | 1× | 1 | — | part |
| 3.8 | Connector | connector | 3× | 3 | — | part |
| 4 | Night-Vision Board 3 parts | video-doorbell-night-vision | 1× | 1 | 8 | assembly |
| 4.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 4.2 | IR LED | video-doorbell-ir-led | 6× | 6 | — | part |
| 4.3 | Ambient Light Sensor | video-doorbell-als | 1× | 1 | — | part |
| 5 | PIR Motion Sensor 2 parts | video-doorbell-pir | 1× | 1 | 2 | assembly |
| 5.1 | PIR Sensor | video-doorbell-pir-sensor | 1× | 1 | — | part |
| 5.2 | Fresnel Lens | video-doorbell-fresnel-lens | 1× | 1 | — | part |
| 6 | Audio Subsystem 3 parts | video-doorbell-audio | 1× | 1 | 3 | assembly |
| 6.1 | Microphone | video-doorbell-mic | 1× | 1 | — | part |
| 6.2 | Speaker | speaker | 1× | 1 | — | part |
| 6.3 | Audio Amplifier | video-doorbell-audio-amp | 1× | 1 | — | part |
| 7 | Doorbell Button 2 parts | video-doorbell-button | 1× | 1 | 2 | assembly |
| 7.1 | Button Actuator | video-doorbell-button-actuator | 1× | 1 | — | part |
| 7.2 | Tactile Switch | video-doorbell-tact-switch | 1× | 1 | — | part |
| 8 | Battery Pack 2 parts | video-doorbell-battery | 1× | 1 | 3 | assembly |
| 8.1 | LiPo Cell | lipo-cell | 2× | 2 | — | part |
| 8.2 | BMS Board | bms-board | 1× | 1 | — | part |
| 9 | Charging Port | video-doorbell-charge-port | 1× | 1 | — | part |
| 10 | Power Input Module 3 parts | video-doorbell-power-input | 1× | 1 | 3 | assembly |
| 10.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 10.2 | Terminal Block | video-doorbell-terminal-block | 1× | 1 | — | part |
| 10.3 | Power Regulator | video-doorbell-power-regulator | 1× | 1 | — | part |
| 11 | Status LED Ring 2 parts | video-doorbell-led-ring | 1× | 1 | 9 | assembly |
| 11.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 11.2 | RGB LED | video-doorbell-rgb-led | 8× | 8 | — | part |
| 12 | Mounting Bracket 3 parts | video-doorbell-mount | 1× | 1 | 3 | assembly |
| 12.1 | Wall Bracket | video-doorbell-wall-bracket | 1× | 1 | — | part |
| 12.2 | Angle Wedge | video-doorbell-wedge | 1× | 1 | — | part |
| 12.3 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 13 | Wiring Harness 2 parts | video-doorbell-wiring | 1× | 1 | 5 | assembly |
| 13.1 | Wire Bundle | wire-bundle | 1× | 1 | — | part |
| 13.2 | Connector | connector | 4× | 4 | — | part |
| 14 | Plug-In Chime 3 parts | video-doorbell-chime | 1× | 1 | 54 | assembly |
| 14.1 | Chime Board 3 parts | video-doorbell-chime-board | 1× | 1 | 52 | assembly |
| 14.1.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 14.1.2 | Microcontroller | mcu | 1× | 1 | — | part |
| 14.1.3 | SMD Passive (R/C/L) | smd-passives | 50× | 50 | — | part |
| 14.2 | Speaker | speaker | 1× | 1 | — | part |
| 14.3 | Mains Plug | video-doorbell-chime-plug | 1× | 1 | — | part |
Sourcing — likely vendors
Companies that make this · indicative price $50–$10k · MOQ & lead are typical| Vendor | HQ | Specialty | MOQ | Lead time |
|---|---|---|---|---|
| assaabloy.com ↗ | Stockholm, SE | Locks & access | 1,000 units | 8–12 wks |
| 🇺🇸Allegion allegion.com ↗ | Dublin, US | Security products (Schlage) | 1,000 units | 8–12 wks |
| dormakaba.com ↗ | Rümlang, CH | Access & door systems | 1,000 units | 8–12 wks |
| honeywell.com ↗ | Charlotte, US | Building & safety tech | 1,000 units | 8–12 wks |
| hikvision.com ↗ | Hangzhou, CN | Surveillance & security | 1,000 units | 8–12 wks |
