Pontoon Boat Product

Overview

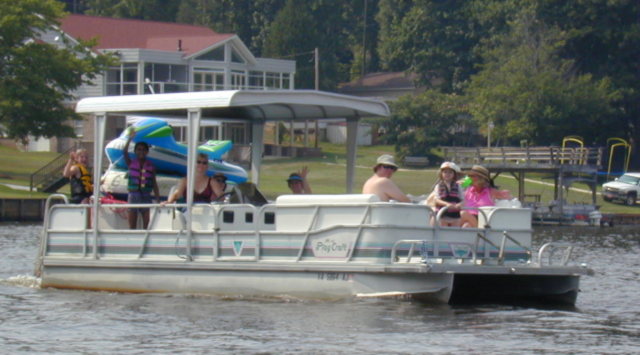

A pontoon boat is a flat, open recreational craft that floats not on a single hull but on two or three sealed aluminium tubes, called logs or pontoons. The wide deck spanning those tubes gives the boat its character: a stable, level platform with room for furniture, a helm and a crowd, rather than the narrow cockpit of a monohull. Because the buoyancy sits far outboard at the tubes, the boat resists rolling and barely heels when people move around, which makes it the default choice for calm-water cruising, fishing and entertaining on lakes and rivers.

The structure starts with the Pontoon Tube Set (logs), welded buoyancy logs divided internally into watertight chambers. Across them sits the Crossmember Frame frame that carries the Deck, and the deck in turn supports the Railing & Fence fence and the Furniture. Power is hung off the reinforced Transom at the Outboard Motor Mount and controlled from the Steering Helm. Sun shade comes from the Bimini Top, and the systems aboard are fed by the Fuel System and the Electrical System harness.

How it works

Each pontoon tube displaces enough water to float its share of the boat and crew; the internal baffles split the tube into sealed sections so a single puncture floods only one chamber. Welded lifting strakes along the tubes act like small planing surfaces, lifting the logs and helping the boat turn under power. The outboard on the transom drives the boat forward and is steered by a cable from the helm wheel, which also carries the throttle and a digital gauge reading speed, fuel and engine data.

Gasoline flows from the portable tank through a water-separating filter to the outboard. The Electrical System system runs everything else off a single 12 V battery: navigation lights, the switch panel, the float-switched Bilge Pump that clears any water shipped aboard, and the Depth / Fish Finder, whose transom transducer pings the bottom and returns depth and fish echoes to a small display.
