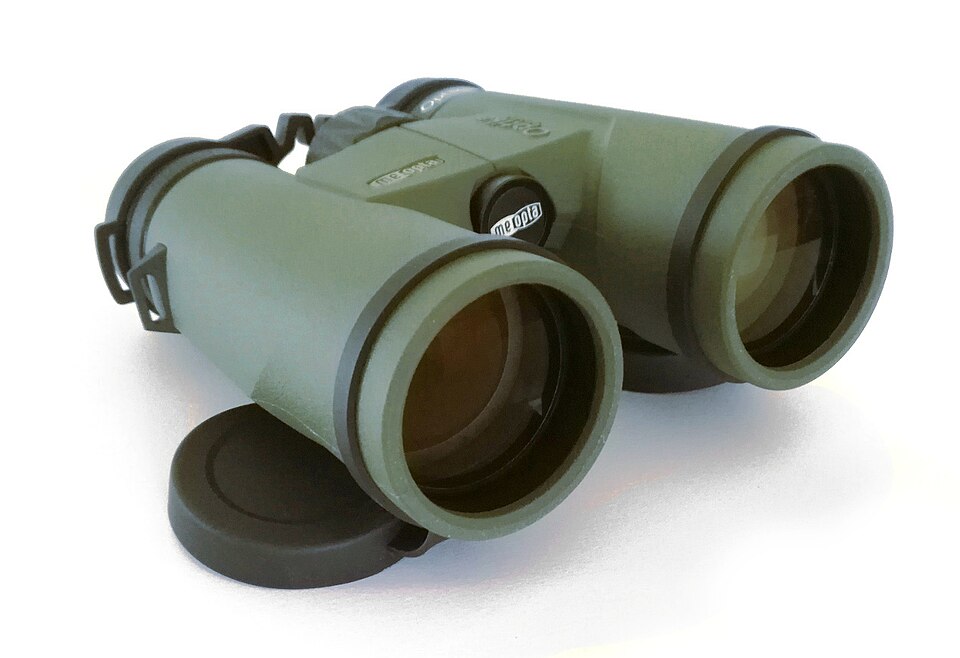

Binoculars Product

A roof-prism, nitrogen-purged waterproof binocular with center focus, twist-up eyecups, and rubber-armored magnesium chassis. A full specification article for this item is being written. Meanwhile its bill of materials and connections are below.

Build & assembly graph

expand / collapse · shared sub-assemblies converge · links to related products · est. labour
product / assembly shared across products atomic part related product

Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.

Bill of materials

9 top-level lines · 39 rows shown · 54 parts total · indented to 3 levels
# Item / sub-assembly Part no. Qty/assy Ext. qty Parts Type
1 Chassis 4 parts binoculars-chassis 1× 1 6 assembly
1.1 Body Half binoculars-body-half 2× 2 — part
1.2 Center Hinge / Pivot 2 parts binoculars-hinge 1× 1 2 assembly
1.2.1 Hinge Axle binoculars-hinge-axle 1× 1 — part
1.2.2 Coil Spring coil-spring 1× 1 — part
1.3 Rubber Armor binoculars-rubber-armor 1× 1 — part
1.4 Fastener Set fastener-set 1× 1 — part
2 Optical Barrel 5 parts binoculars-optical-barrel 2× 2 15 assembly
2.1 Objective Lens Group 2 parts binoculars-objective-group 1× 2 3 assembly
2.1.1 Lens Assembly camera-lens 2× 4 — part
2.1.2 Objective Lens Cell binoculars-objective-cell 1× 2 — part
2.2 Roof Prism Cluster 3 parts binoculars-prism-cluster 1× 2 4 assembly
2.2.1 Schmidt-Pechan Roof Prism binoculars-roof-prism 2× 4 — part
2.2.2 Phase Correction Coating binoculars-phase-coating 1× 2 — part
2.2.3 Prism Holder binoculars-prism-holder 1× 2 — part
2.3 Eyepiece Lens Group 2 parts binoculars-eyepiece-group 1× 2 4 assembly
2.3.1 Lens Assembly camera-lens 3× 6 — part
2.3.2 Eyepiece Lens Cell binoculars-eyepiece-cell 1× 2 — part
2.4 Lens Spacer binoculars-lens-spacer 2× 4 — part
2.5 Lens Retainer Ring binoculars-lens-retainer 2× 4 — part
3 Focus System 6 parts binoculars-focus-system 1× 1 6 assembly
3.1 Center Focus Wheel binoculars-focus-wheel 1× 1 — part
3.2 Focus Shaft binoculars-focus-shaft 1× 1 — part
3.3 Helical Gear Pair gear-pair 1× 1 — part
3.4 Internal Moving Lens binoculars-moving-lens 1× 1 — part
3.5 Coil Spring coil-spring 1× 1 — part
3.6 Diopter Adjustment Ring binoculars-diopter-ring 1× 1 — part
4 Twist-Up Eyecup 2 parts binoculars-eyecup 2× 2 2 assembly
4.1 Eyecup Collar binoculars-eyecup-collar 1× 2 — part
4.2 Eyecup Helicoid binoculars-eyecup-helicoid 1× 2 — part
5 Cover Set 2 parts binoculars-cover-set 1× 1 3 assembly
5.1 Objective Cover binoculars-objective-cover 2× 2 — part
5.2 Eyepiece Rainguard binoculars-rainguard 1× 1 — part
6 Waterproof Seal Set 2 parts binoculars-waterproof-seals 1× 1 2 assembly
6.1 O-Ring Set oring-set 1× 1 — part
6.2 Nitrogen Purge Valve binoculars-purge-valve 1× 1 — part
7 Tripod Adapter Thread binoculars-tripod-adapter 1× 1 — part
8 Neck Strap Lugs binoculars-strap-lugs 1× 1 — part
9 Fastener Set fastener-set 1× 1 — part

Sourcing — likely vendors

Companies that make this · indicative price $100–$8k · MOQ & lead are typical
VendorHQSpecialtyMOQLead time
🇯🇵Canon
canon.com ↗ 		Tokyo, JP Imaging & optics 500 units 10–16 wks
🇯🇵Nikon
nikon.com ↗ 		Tokyo, JP Imaging & optics 500 units 10–16 wks
🇩🇪ZEISS
zeiss.com ↗ 		Oberkochen, DE Optics & optoelectronics 500 units 10–16 wks
🇩🇪Leica Camera
leica-camera.com ↗ 		Wetzlar, DE Cameras & optics 500 units 10–16 wks
🇺🇸Teledyne FLIR
flir.com ↗ 		Wilsonville, US Thermal imaging 500 units 10–16 wks
